AV-08FBIL

One Button Intercom Panel with Induction Loop Output & Status indicator

Built-in Multiplying Energy Booster for opening the electromechanical lock

Wide-ranging applications

Offices

Country homes

Parking areas

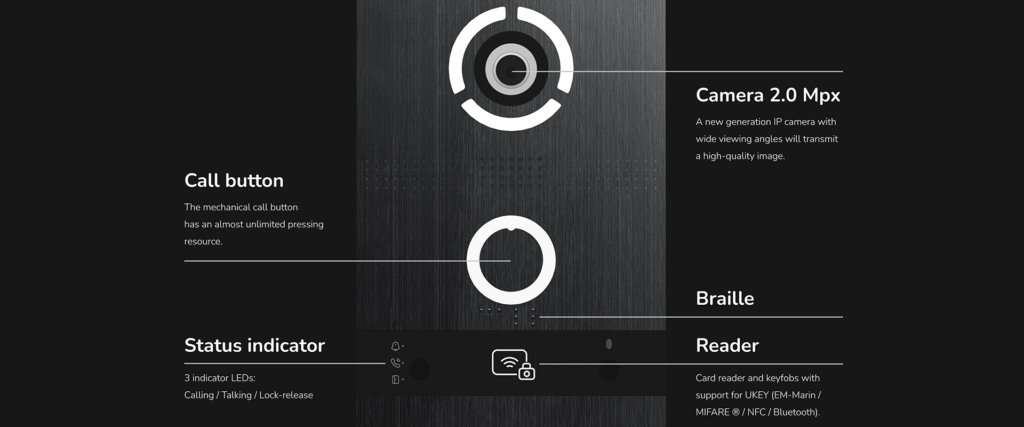

Status indicator

The status indicator on the BAS-IP AV-08FBIL panel is designed to display the current state of the panel and inform users about various events. This indicator visually communicates the initiation of a call, connection with the tenant, and door opening.

Induction Loop

The panel supports induction loop functionality to enhance accessibility for users with hearing impairments. It features a built-in audio output stage designed to interface with an external induction loop antenna. This setup enables the panel to transmit audio signals directly to hearing aids and cochlear implants equipped with T-coils, creating a magnetic field that improves sound clarity and convenience for users.

By integrating this feature, the panel meets modern accessibility standards, ensuring that users with hearing impairments can easily receive audio information and interact with the panel effectively.

Stainless Steel construction

A robust, all-metal milled body with an anodized coating that enhances the natural beauty of the metal, creating a dynamic surface effect. The design aligns perfectly with modern trends.

Multi-factor authentication

Enhanced security is achieved through multi-factor authentication, which verifies two or more elements: face, card, key fob, PIN code, mobile identifier, and temporary link access.

Adaptable settings and expandability

Guest access

Visitors can enter the premises using a QR code or a pre-generated link provided by the property owners.
UKEY

The panel supports UKEY mobile access, allowing doors to be opened with a smartphone. It also accommodates traditional key fobs and access cards.
Open API

The API enables quick and easy integration of the panel with third-party systems, such as Access Control Systems.
Integration with video surveillance

The panel can transmit video using RTSP or Onvif protocols, allowing it to function as a video surveillance camera within your system.

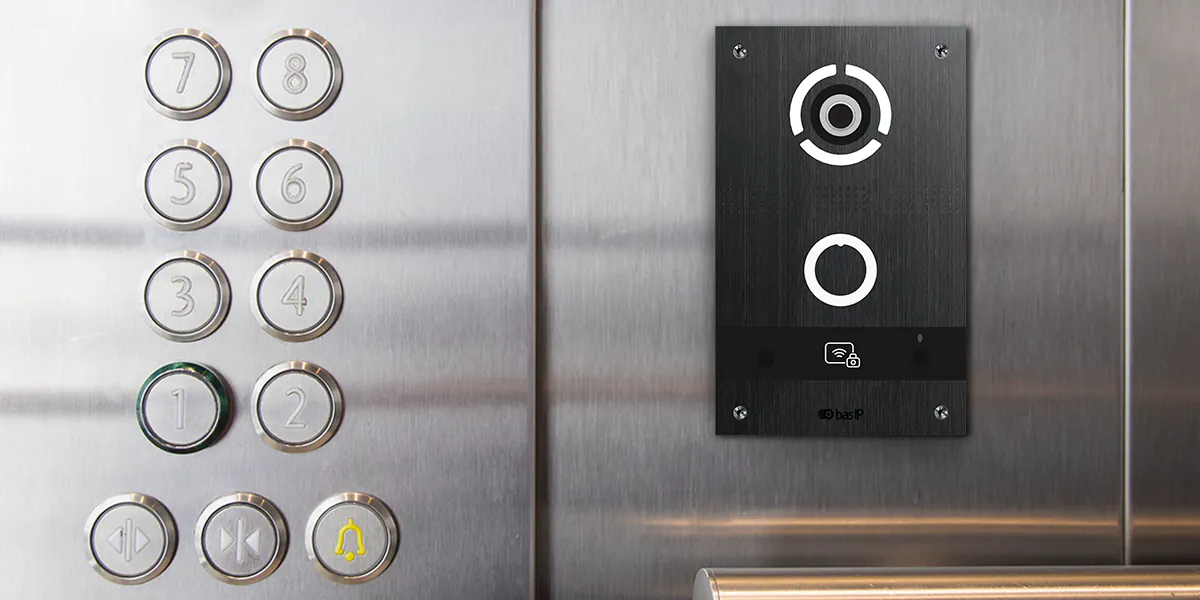

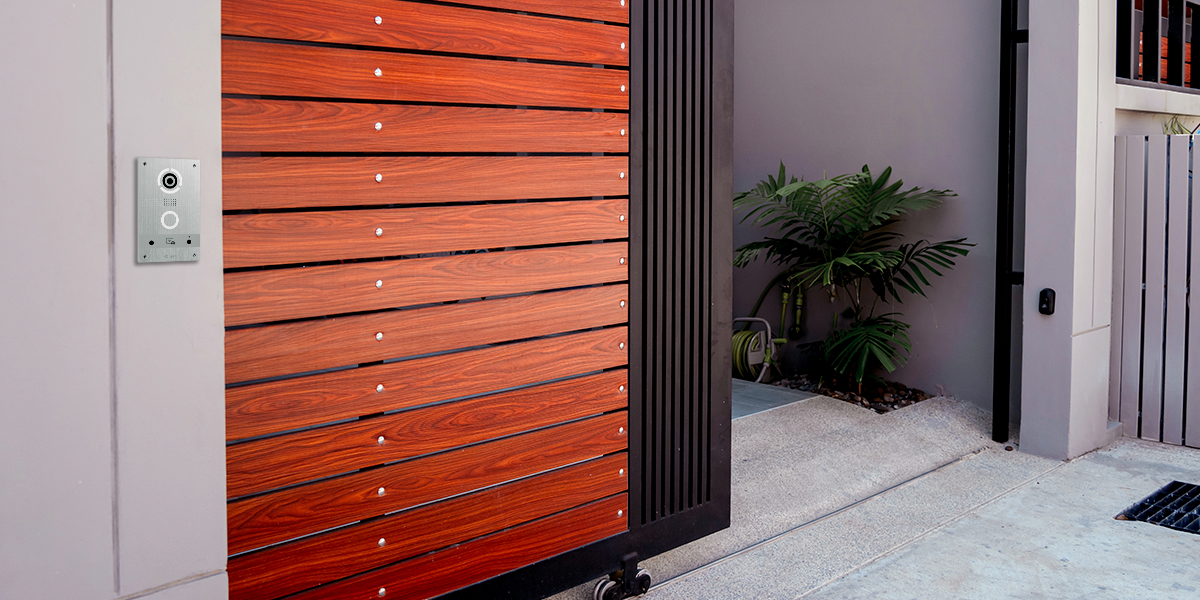

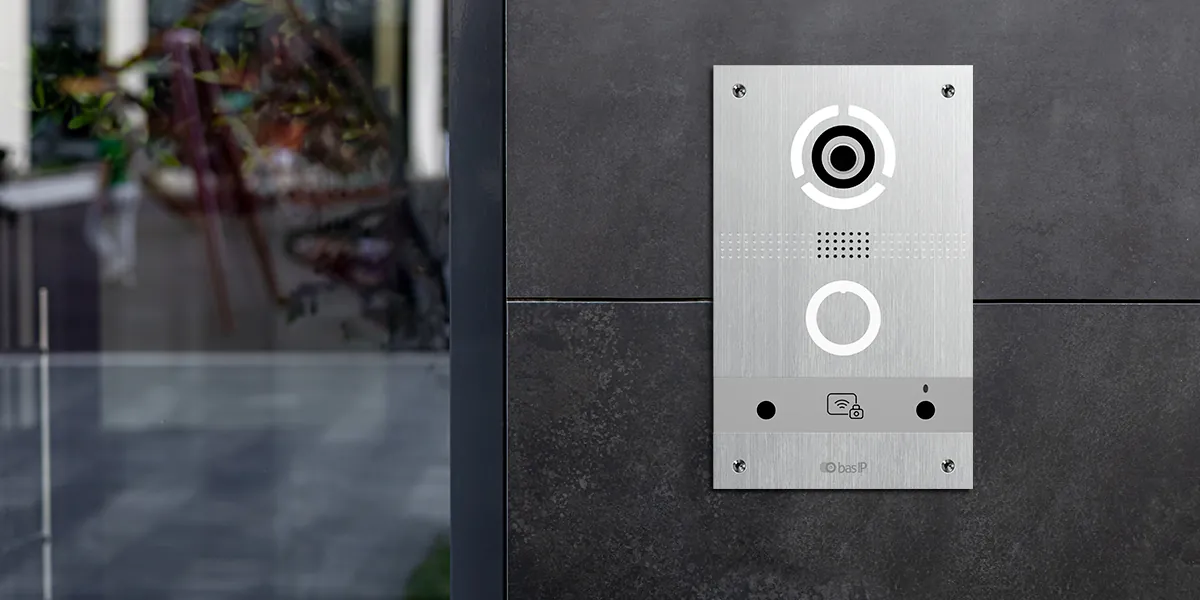

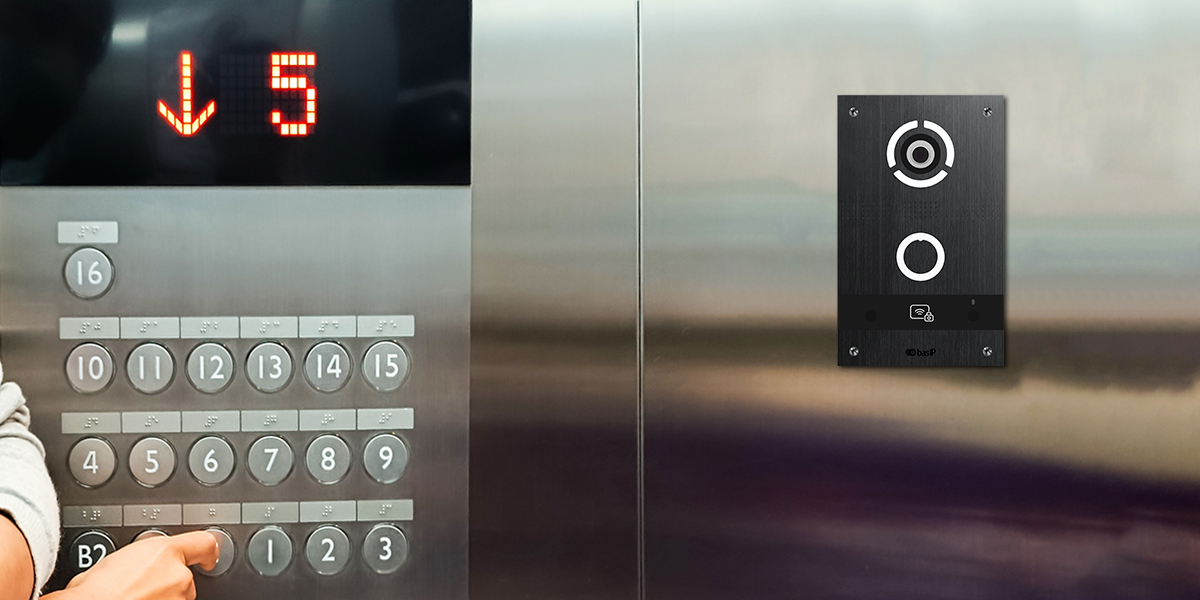

Gallery

Specifications

General characteristics

Panel type Individual
Camera 1/3”
Angle 124° horizontal
Resolution 2.0 Мpx
Output video 1080p (1920×1080), H.264 Main Profile
Night backlight 6 LEDs
Light sensitivity 0.01 Lux
Induction Loop Output Yes
Status indicator 3 indicators (Calling, Talking, Lock-release)
ONVIF Yes
RTSP Yes (video + audio)
Operating temperature -40 – +65 °С
Storage Humidity 0% – 60%
Operating Humidity 0% – 86%
Protection class IP65
IK-Code IK07
Power consumption 6.5 W, in standby – 3.8 W
Power supply PoE, +12 V DC (+8% -4%)
Case Aluminum
Call button Piezoelectric
Call button backlight control White
Colours Silver, Black
Dimensions 130×212×47 mm
Box dimensions 222×142×100 mm
Gross weight 1.41 kg
Installation Type Flush mounting, Wall mounting (with bracket)
Interface Multi-language, WEB-interface
Identifiers in the panel memory (QR codes, cards, key fobs, UKEY, access codes) 20 000
Face recognition identifications 10 000
Integration with ACS Wiegand
Built-in Wiegand output for card, key fob, and UKEY identifiers 26, 32, 34, 37, 40, 42, 56, 58, 64, 80 bits
Built-in Multiplying Energy Booster for opening the electromechanical lock Yes
Connection of the additional SH-12 module and its support • Wiegand input: from 6 to 58 bits inclusive
• Wiegand output for card, key fob, UKEY, QR, Face, Digital code, and all other types of identifiers: from 26 to 128 bits inclusive
Authentication Separate password allowing access to the settings for the WEB-interface
Access control • Face Recognition
• UKEY (EM-Marin/ MIFARE®/NFC/Bluetooth)
• Multi-factor authentication
Lock opening • By means of a monitor
• Face Recognition Identification
• By QR code
• By guest link
• By access card
• By license plates
• The BAS-IP Link app
• The BAS-IP Intercom app
• The BAS-IP UKEY app
• From API
Lock control Built-in Multiplying Energy Booster for opening the electromechanical lock
Supported standards • BLE (Bluetooth Low Energy): 2,45 GHz Bluetooth 4.x, Bluetooth 5.x.
• Mifare®, 13,56 MHz ISO14443A: Mifare®Standard, Mifare®Hi-Memory, Mifare®Ultralight, Mifare®Classic 1K/4K, Mifare®Classic 7UID, Mifare® Plus SL1 and SL3
• NFC, 13,56 MHz: ISO 14443/15693
• Cards 125 kHz: ASK and FSK
Reading range • NFC, Mifare cards and 125 kHz cards – up to 5 cm
• BLE – adjustable 10 cm – 10 m
Additionally • SIP P2P
• Built-in Relay
• PoE electromechanical lock Power supply
• 2 Separate inputs for Door sensors
• Proximity Sensor
• Tamper sensor
• Open API
• Link Software support
