EAN: 5060514913253 (black)
EAN-5060514913239 (silver)
EAN-5060514914465 (gold)
SH-45TE BLACK / SILVER / GOLD
EAN: 5060514913253 (black)
EAN-5060514913239 (silver)
EAN-5060514914465 (gold)

SH-45TE BLACK / SILVER / GOLD

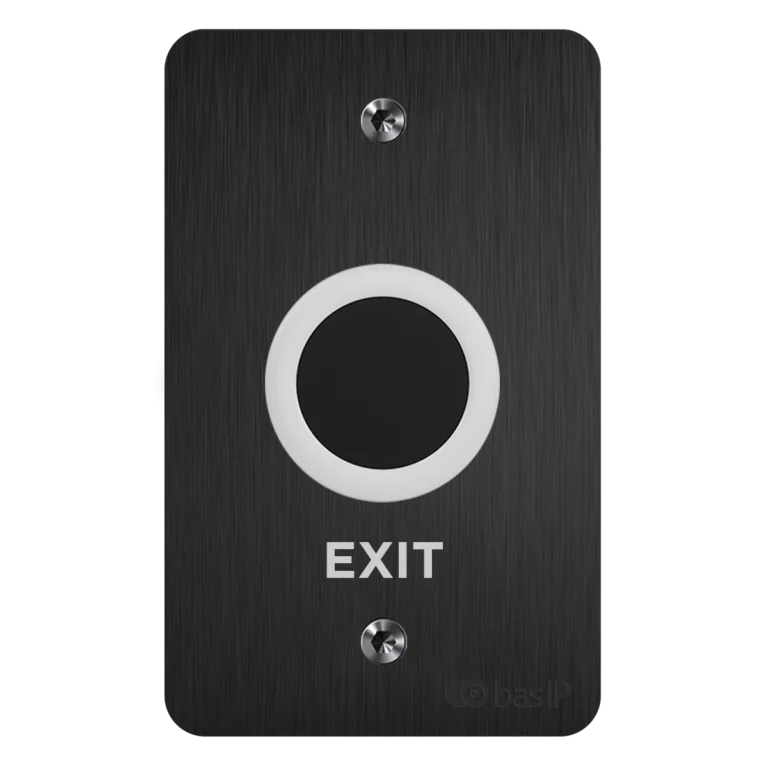

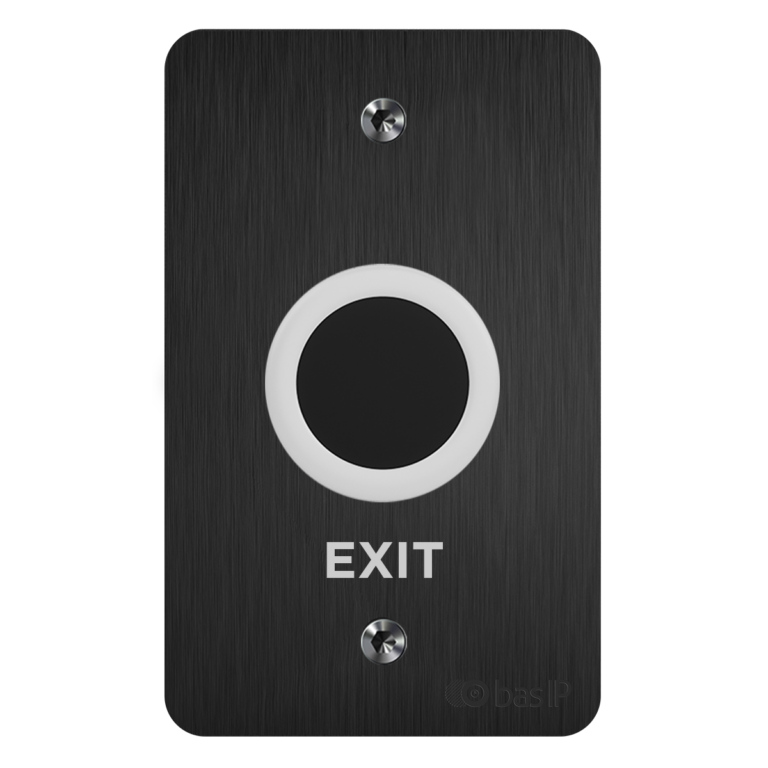

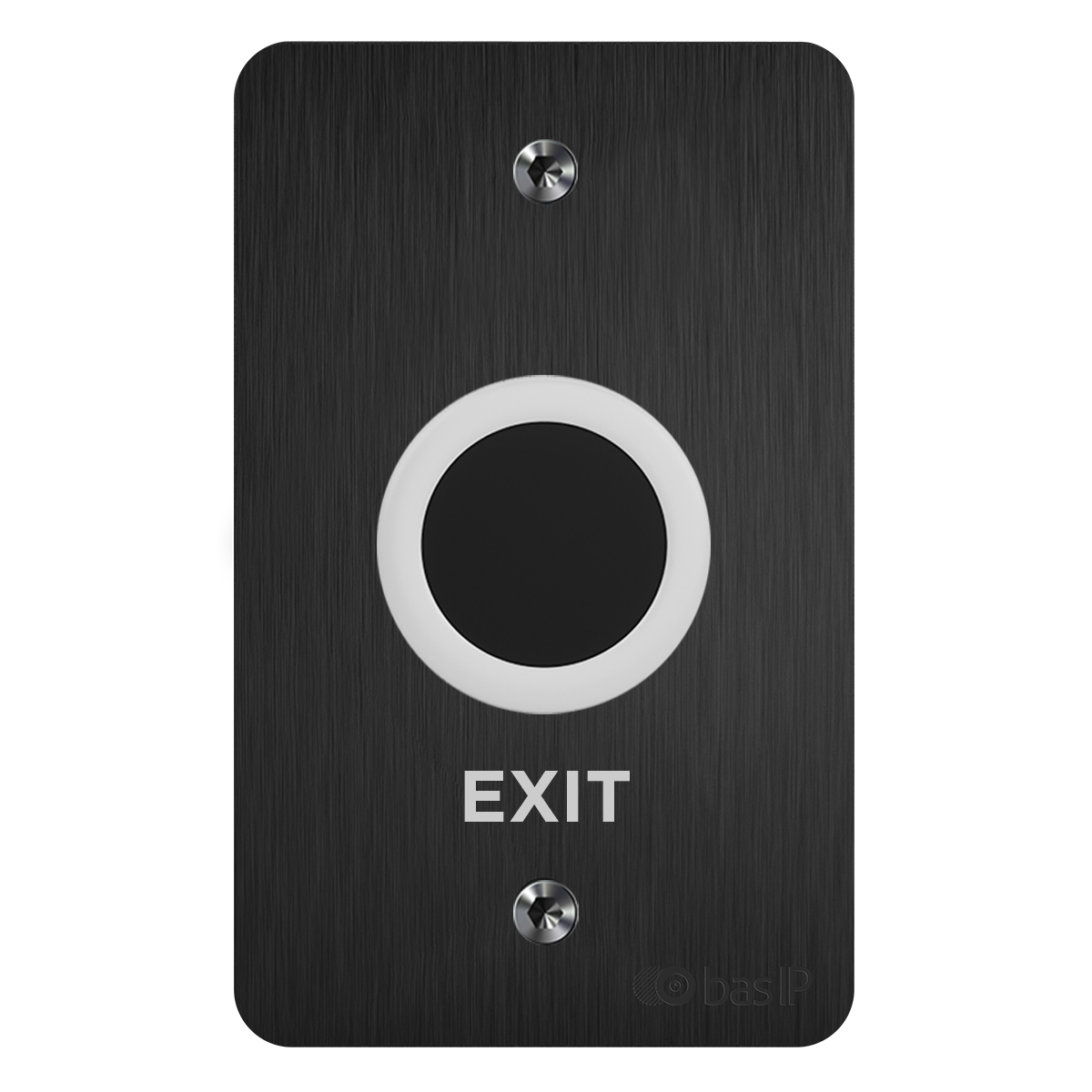

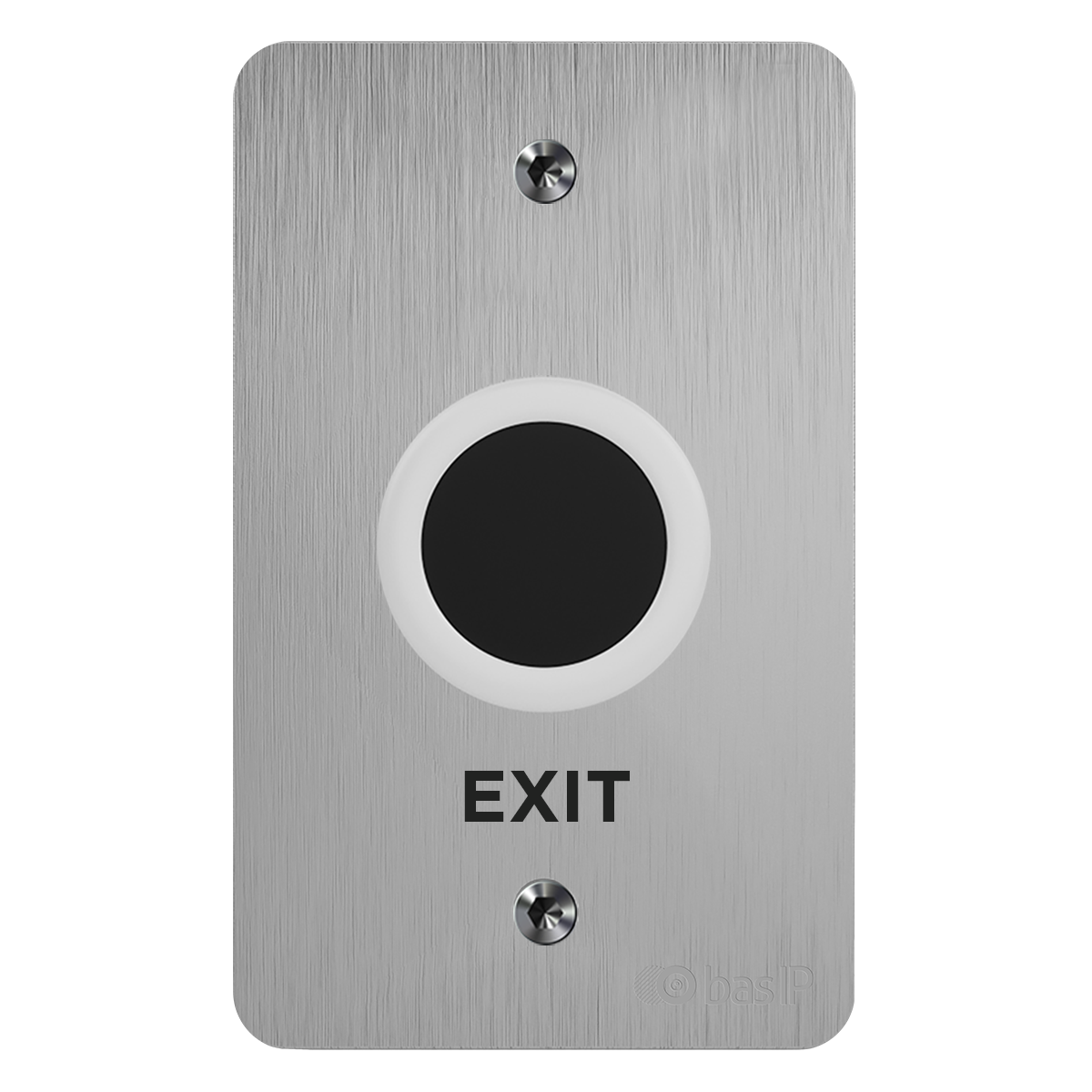

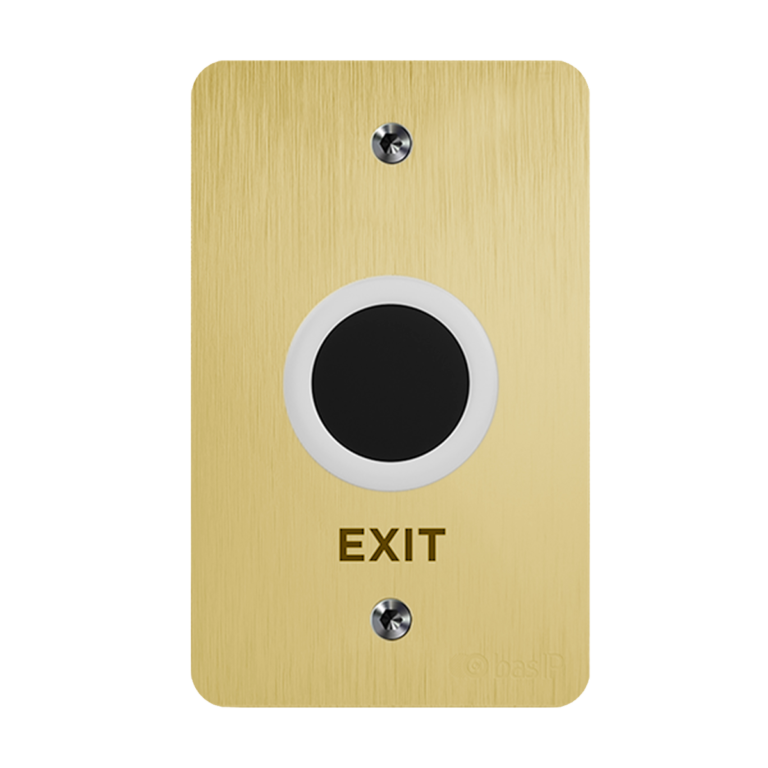

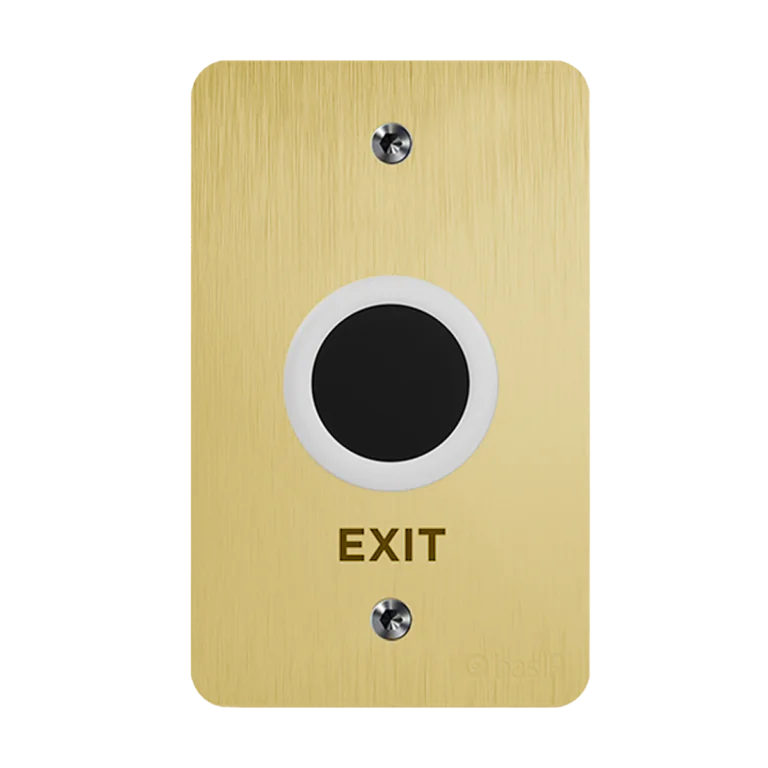

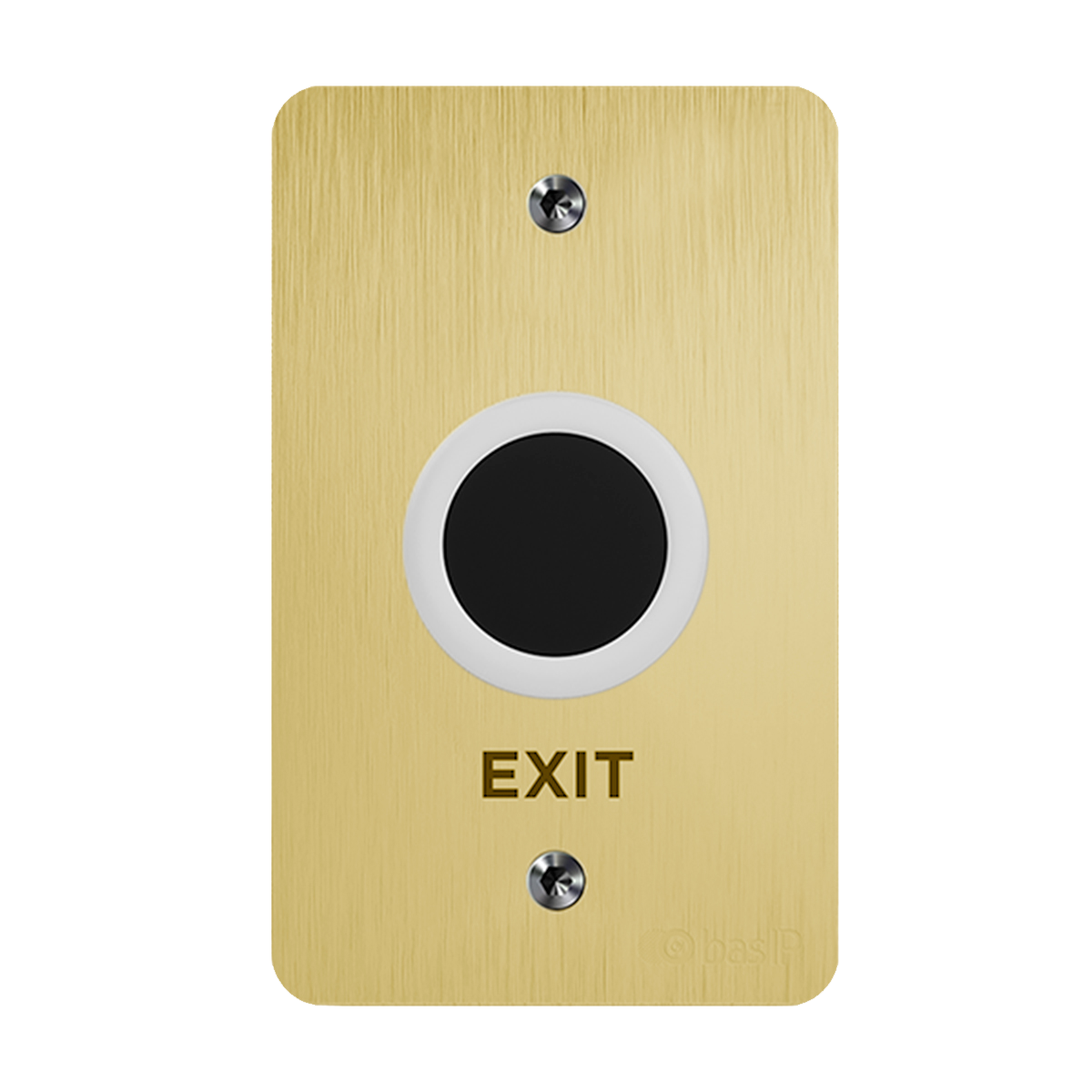

Touch-free stainless steel exit button

Stylish design combined with modern technology

WHERE TO BUY

No-touch exit button with a resource of more than 100 million clicks.
Operation at a distance up 15 to 25 cm.

Although this proximity button is IP68 waterproof and dustproof, outdoor installation should still be avoided if rainfall is possible in your area, creating a dense wall of rain in front of the face of the button, in order to avoid unintentional false positives.

To avoid inadvertent activation of the proximity button sensors during rainfall creating a dense rain wall, the proximity button must be installed in such a way that the dense rain wall during precipitation extends no closer and not less than 800 mm from the face of the proximity button.

Power supply: +12 V DC (+1%, – 15%)
Work resource: Over 100 million clicks
Protection class: IP68
Permissible humidity: 10% – 94%
Working temperature: -40 – +60 °C
Colors: Silver, Black, Gold
Additionally:
• The ability to change the color of the backlight
• Trigger mode
• Stainless steel cover
Dimensions: 70×114×19,5 mm
IK-Code: IK09
Gross weight: 0.28 kg
