CE-44

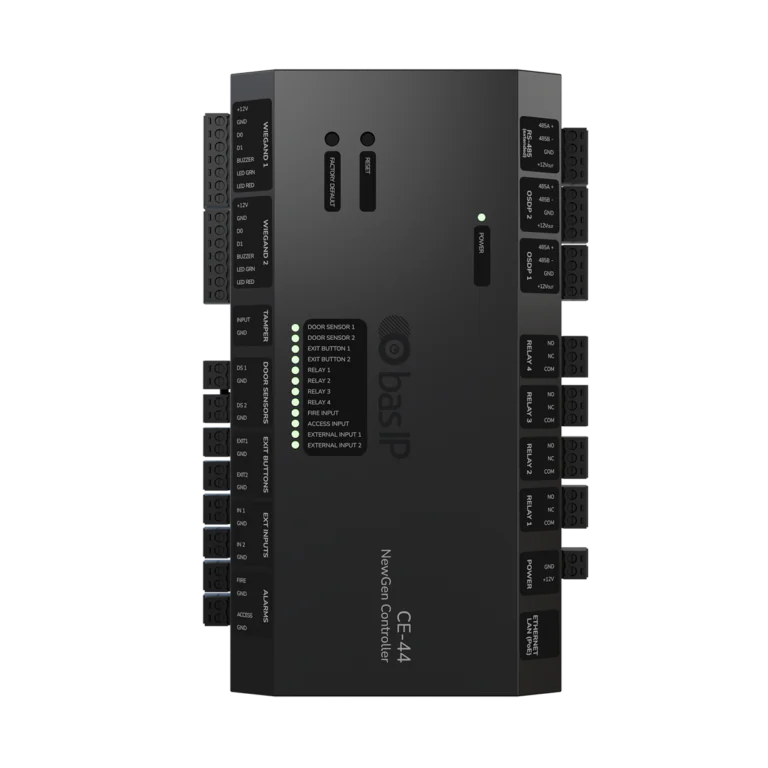

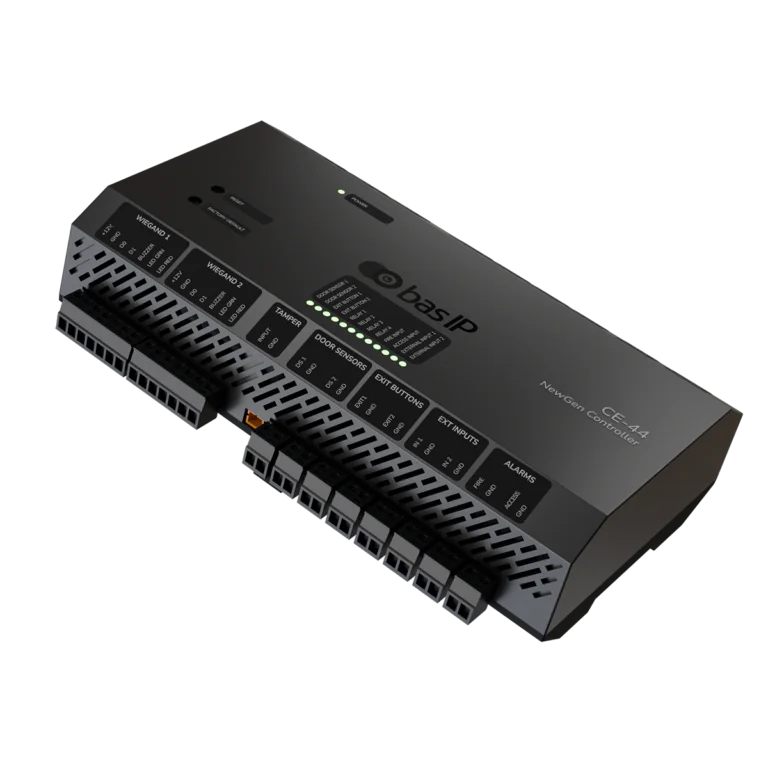

The BAS-IP NewGen Door Controller is a versatile access control device designed for maximum flexibility and integration. Equipped with built-in relays, Wiegand, and OSDP (RS-485) interfaces, it supports a wide range of locks, readers, and peripheral devices. Configurable signal inputs (for sensors, buttons, or external triggers) and multiple configurable LED outputs provide advanced control options for complex installations.

The controller features a multi-language web interface for intuitive setup and seamless integration into any access control system. Flexible configuration of each input and interface ensures full compatibility with diverse project requirements.

• Power Supply: 12V DC or PoE IEEE 802.3af.
• Nominal Consumption: 1.56–1.8W (0.13–0.15A)*.
• Maximum Consumption: ≤4.2W (≤0.35A)*.
* Values without connected readers, peripherals, or additional modules.
• LAN: Yes (8P8C, Ethernet with PoE support).
• Wiegand Interfaces: 2.
• Supported Wiegand Bit Length: 26–128; RAW (4–258 bits).
• Supported Wiegand Keyboard: 4; 6; 8 bit and Packet mode
• OSDP Interfaces: 2 (via RS485).
* Optimal card readers quantity per one OSDP line is 8 pcs.
Connection more than 8 readers per one line can lead to card reading delays
in case of OSDP line damage.

• Expansion Port: RS485.
• Built-in Relays: 4 (NC, NO, COM), 10A max.
• Signal Inputs: 8.
• External LED Outputs: 12.
• Tamper Input: Yes.
• Controller Dimensions:
102 × 178 ×45 mm (without connectors).
113 × 178 ×45 mm (with connectors).

• Protection Class: IP20.
• Operating Conditions: 0–60 °C, 20–76% RH.
• Battery Type: CR2032 for internal real-time clock.

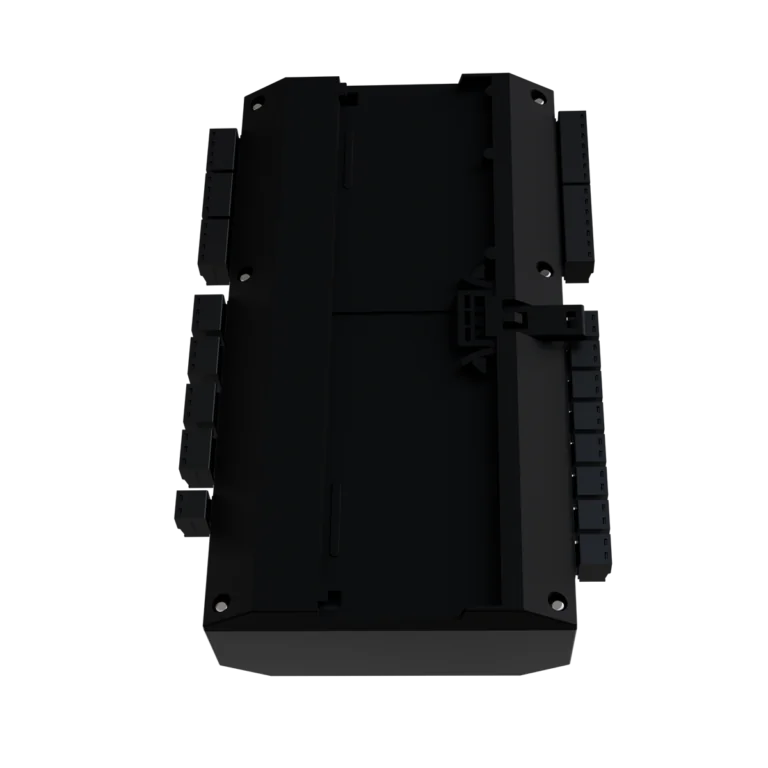

• Installation type: TH35 DIN rail IEC/EN 60715, Din 35×7,5 mm.
• Case material: ABS-plastic, FR V2 fireproof level.

The specifications and appearance of the device may differ from those stated or may change without prior notice.
