BAS-IP / Hardware / Door Entry Panels / AV-06

MORE THAN JUST
A DOORBELL

Meet the BAS-IP AV-06 — a smart entrance panel with a flawless design. The perfect replacement for your old doorbell, showing you who's at the door, wherever you are.

Request project quote Download datasheet

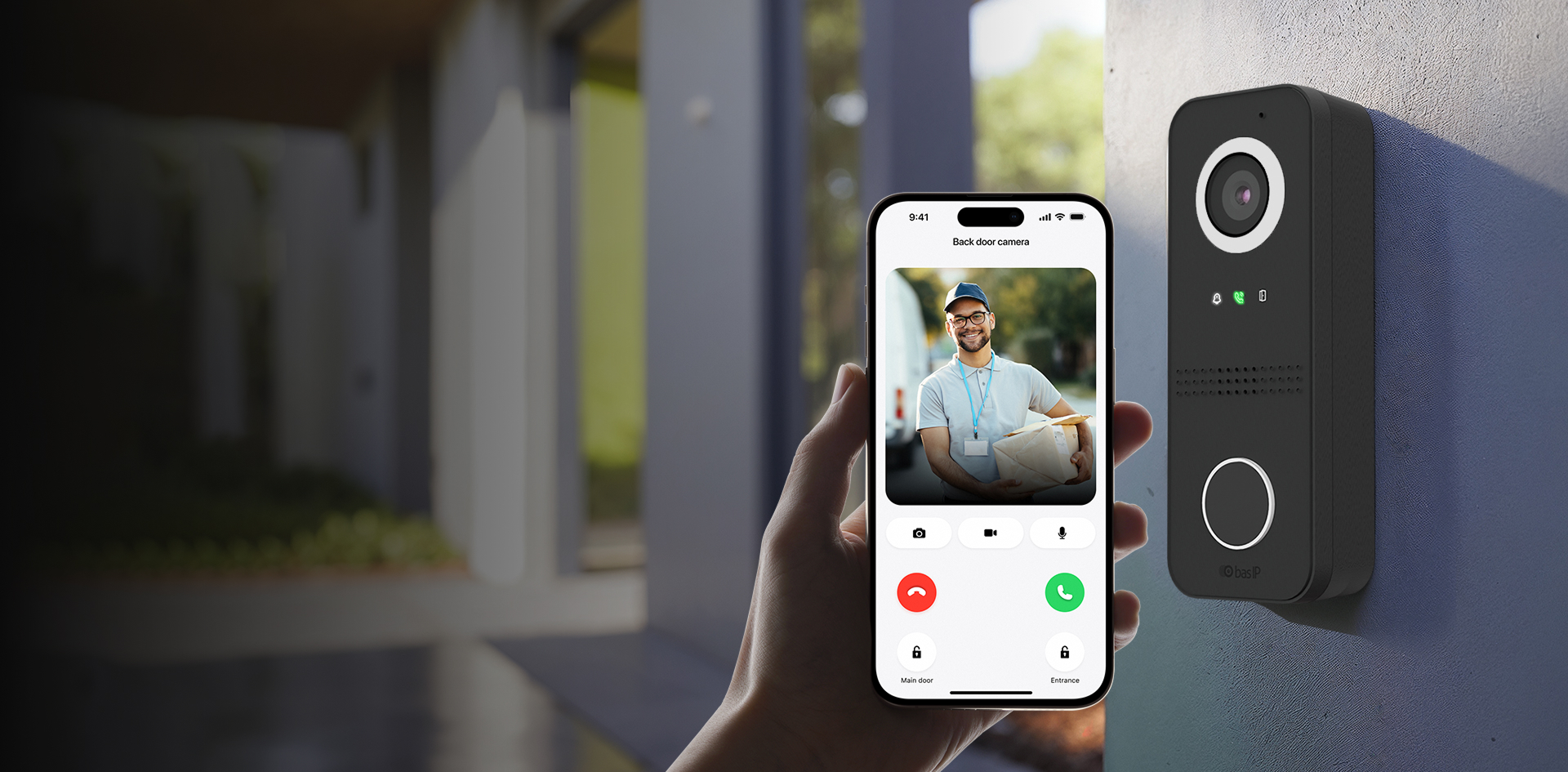

A courier at the doorstep, seen on a smartphone through the BAS-IP intercom app.

An ordinary doorbell
leaves you guessing

The bell rings, but who is it? A neighbor, a courier, or an uninvited guest? With the AV-06, your smartphone or indoor monitor becomes a window to your doorstep.

See who's there.
Before you open.

A delivery, a friend, an unexpected visitor. Get a clear view of who's at the door and decide what happens next.

  • You are always home

    Receive door calls on your phone via the BAS-IP Link app, whether you are at the office or on vacation.

  • Total control

    Check the live camera feed before answering.

  • Live communication

    Tell the courier to leave the package at the door — clear, two-way communication without interference.

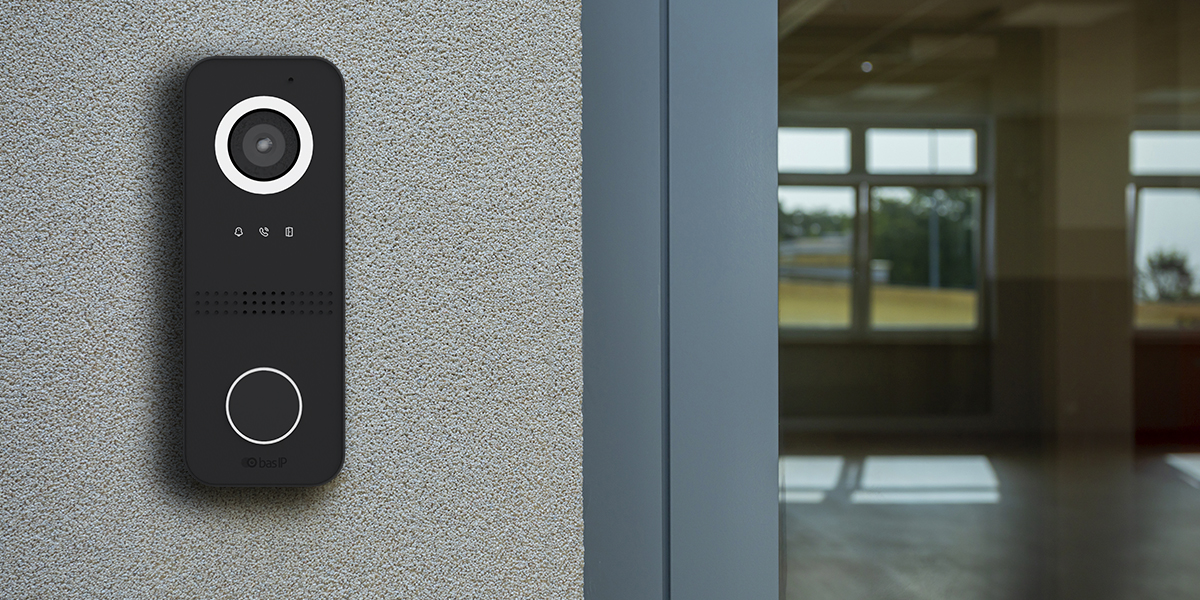

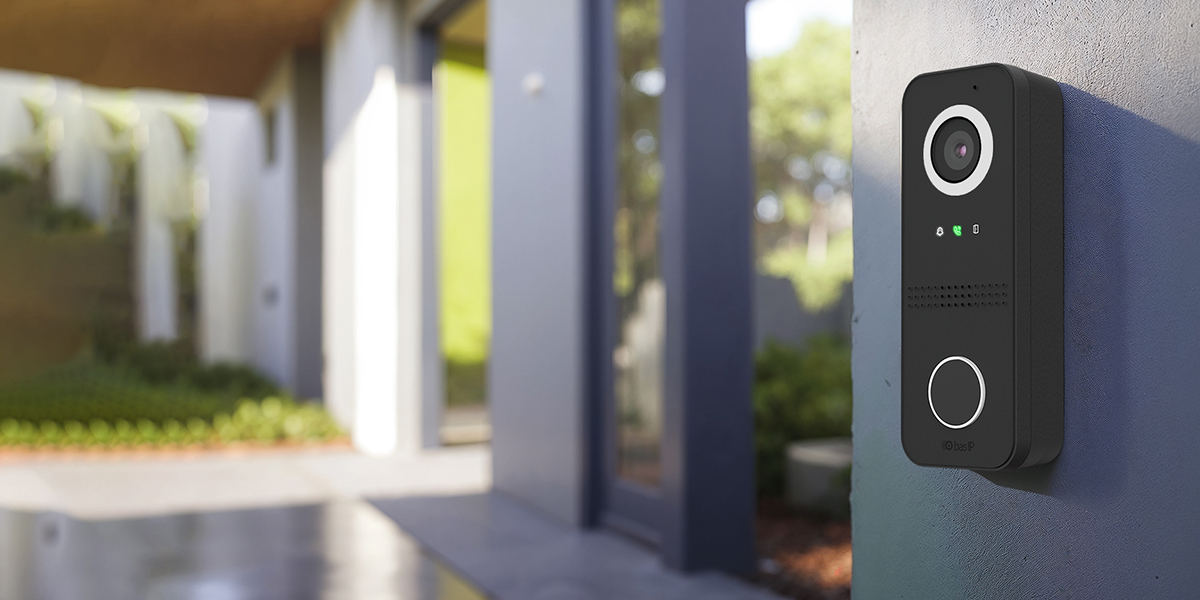

The BAS-IP AV-06 entrance panel, with a camera, illuminated status symbols and call button, mounted on a brick wall.

Designed for your door frame

We stripped away everything unnecessary to create the perfect shape. No bulky boxes. The ultra-slim body, just 52 mm wide, mounts easily on any door frame or wall.

Slim by design.

A compact profile that makes room for what matters. Explore the AV-06 from a new angle — a small detail with a considered finish.

Clear communication at a glance

The minimalist design features three intuitive LED status indicators. Your guests will always know what's happening thanks to the elegantly illuminated "Calling," "Talking," and "Lock-release" icons integrated seamlessly into the front panel.

Surface mounting

We stripped away everything unnecessary to create the perfect shape. No bulky boxes. The ultra-slim body, just 52 mm wide, mounts easily on any door frame or wall.

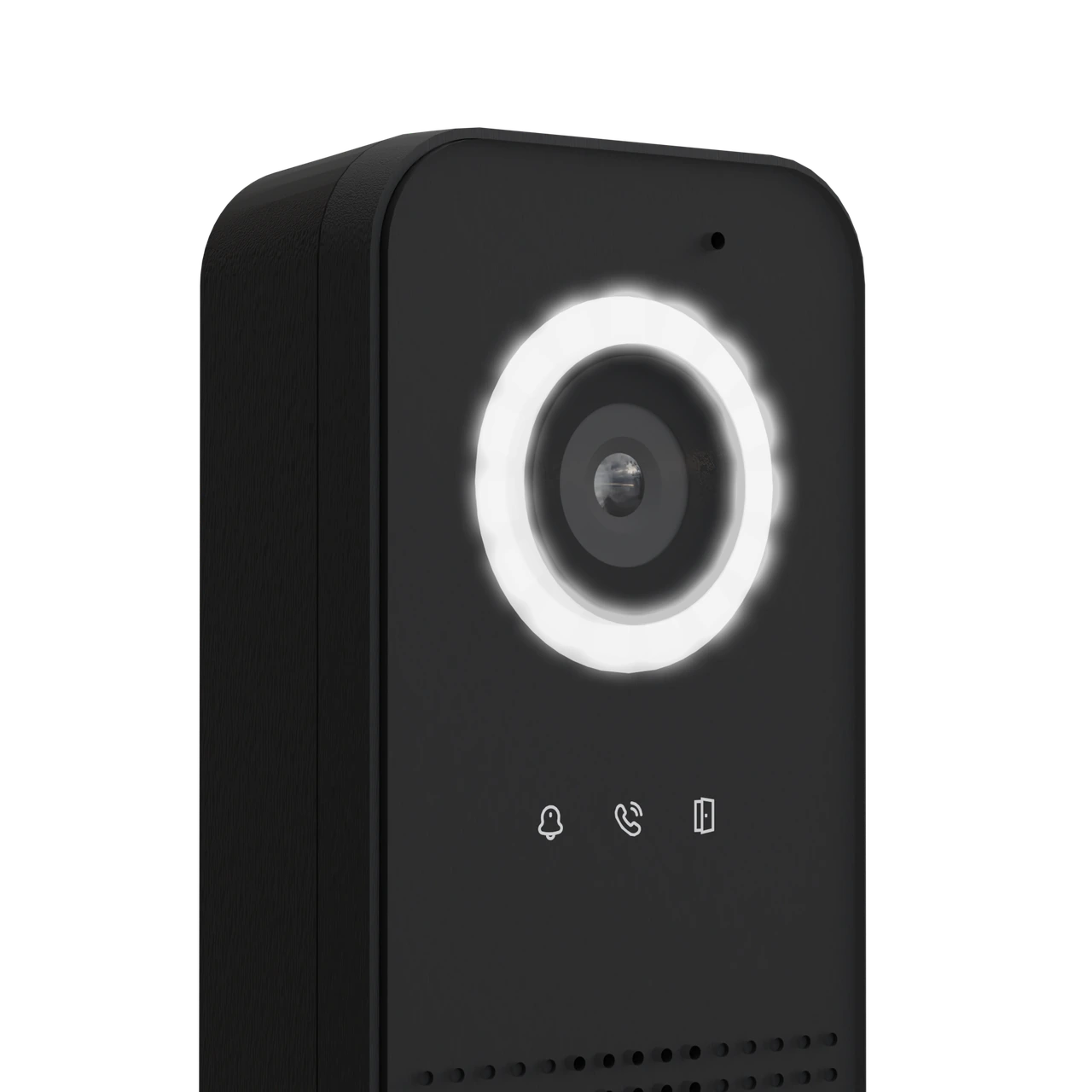

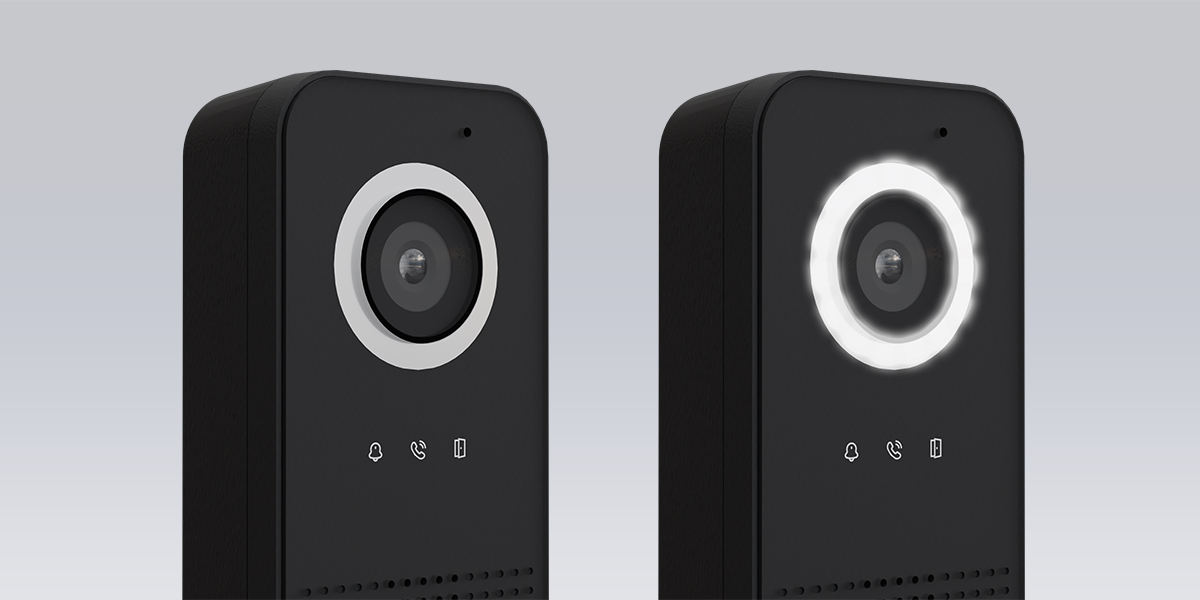

Sees everything. Day and night.

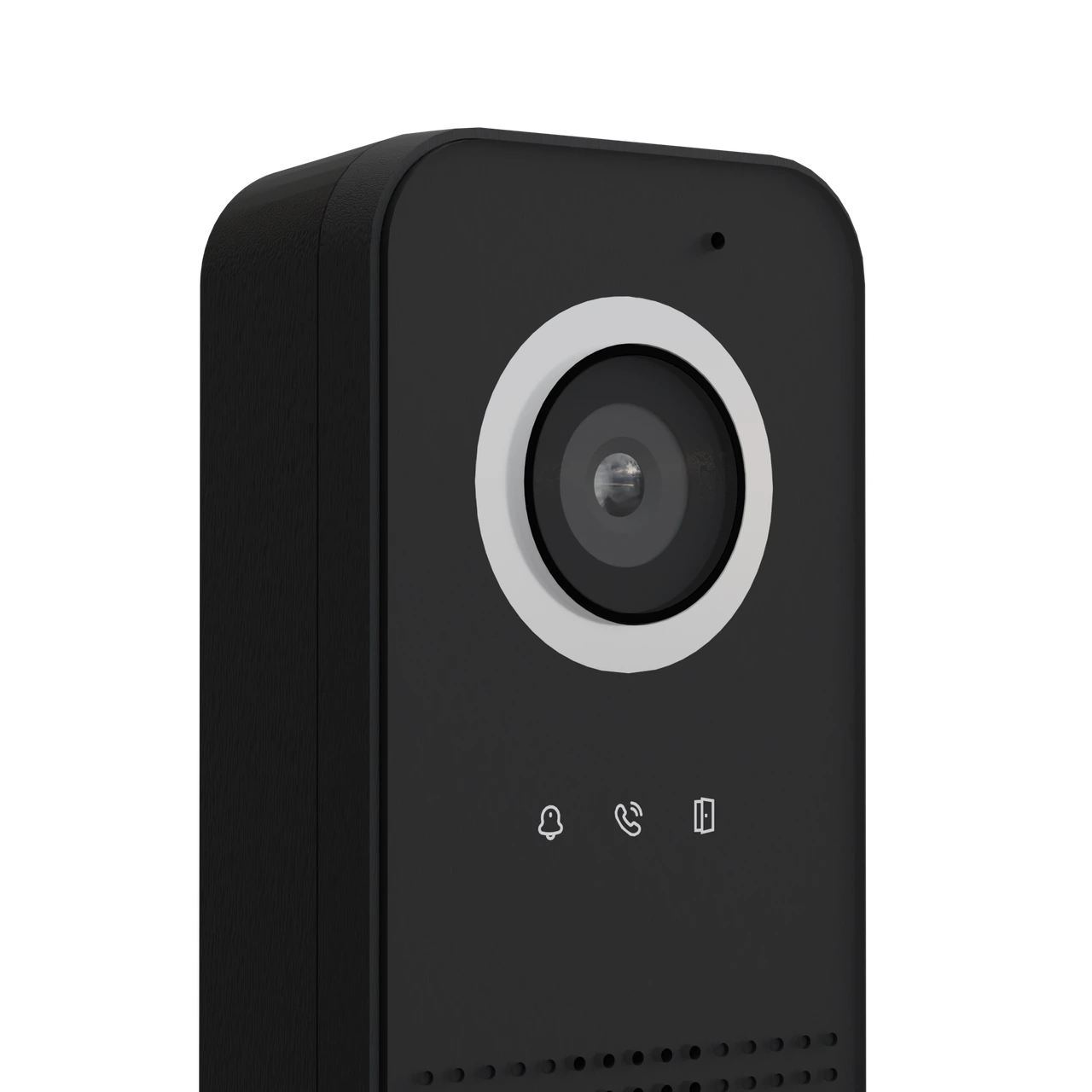

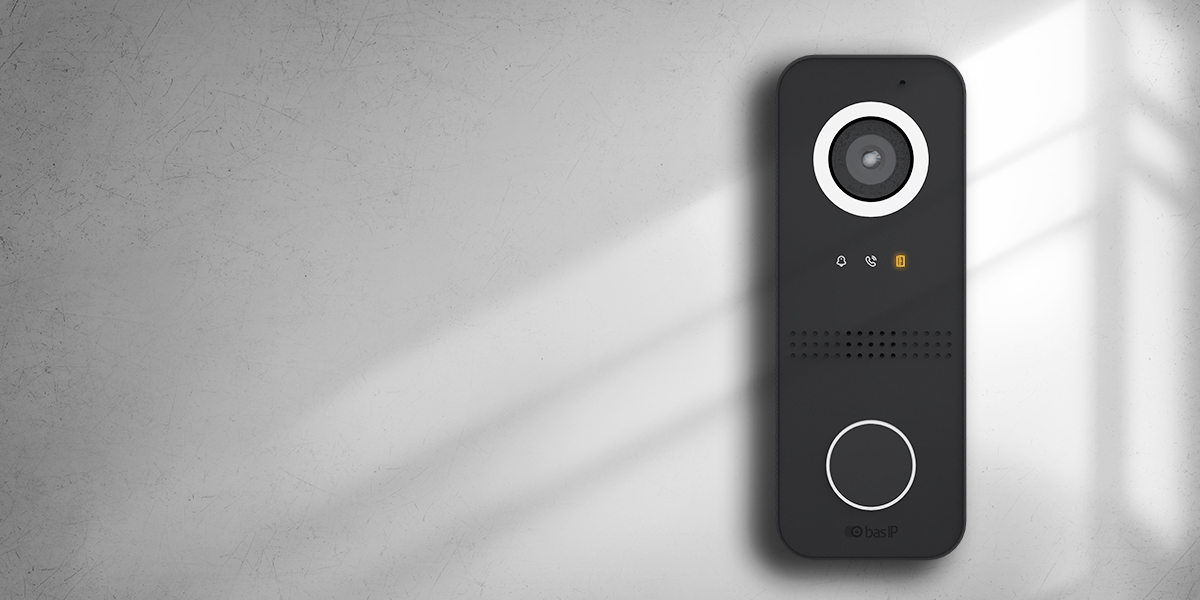

The BAS-IP AV-06 entrance panel with an unlit camera ring in daylight.
A smiling visitor wearing a suit and blue tie, seen in a bright lobby.
The 2 MPx camera with a wide 110° horizontal viewing angle won't miss a single detail. You will see your guest in full view, even if they are standing right in front of the door. With a light sensitivity of 0.01 Lux and 12 LEDs, the AV-06 delivers an excellent picture even in complete darkness. WDR technology handles bright backlighting (for example, if the sun is shining behind the guest).

Ready for anything

The body features IP65 weather resistance, IK06 impact protection, and operates in extreme temperatures from -40 to +65 °C.

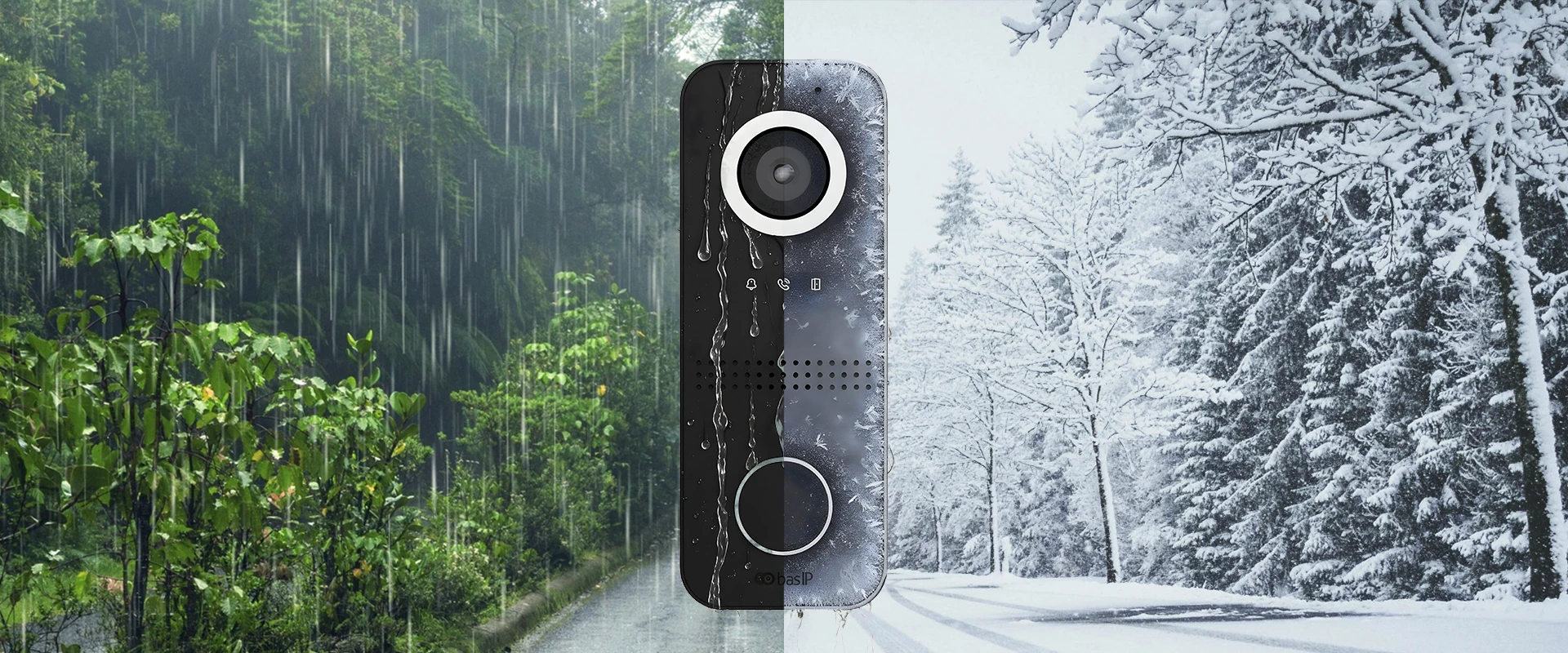

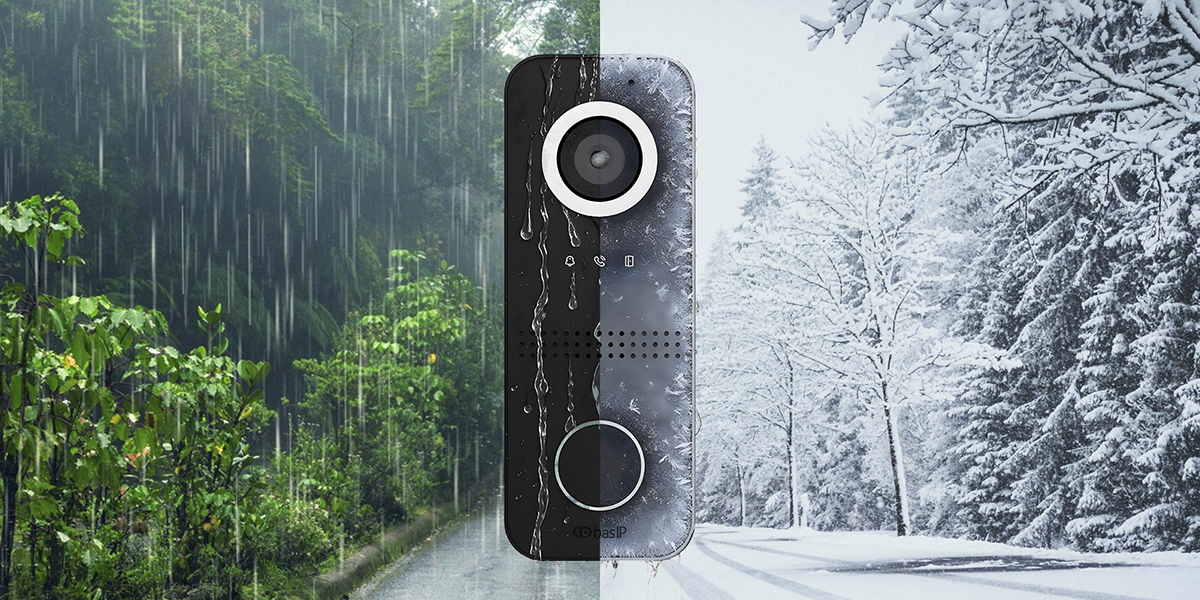

BAS-IP AV-06 entrance panel shown in rainy and snowy outdoor conditions.

Perfect balance. Nothing superfluous.

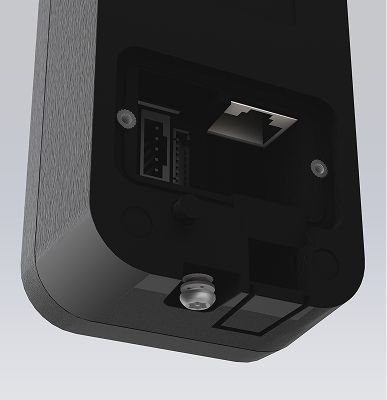

In the AV-06 version, we kept only the essence of a smart doorbell. The device connects with just one cable (IEEE POE 802.3af).
IEEE POE 802.3af

IEEE POE 802.3af

We kept only the essence of a smart doorbell. The device connects with just one cable.

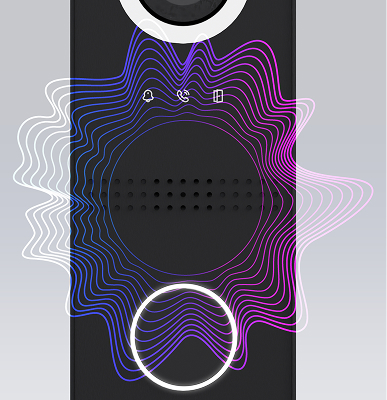

Sounds exactly you want

Sounds exactly you want

Customize the panel to fit your home’s mood. The AV-06 allows you to use customizable sounds for ringback, door unlock, and incoming calls.

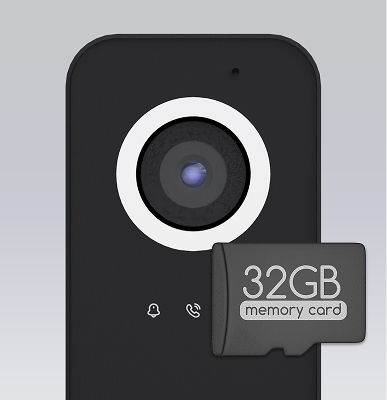

Hidden capabilities

Hidden capabilities

Built-in TF card slot (up to 32 GB) for saving records and an RS485 interface for integration.

Specifications

Key specs first. Full specifications below (accordion).
Camera
2.0 MPx
Power
IEEE PoE 802.3af & +12V DC
Output video
FullHD (1920 × 1080)
Status indicator
Calling, Talking, Lock-release
Protection class
IP65
IK-Code
IK06
Panel type
Individual
Camera
1/2.8”
Resolution
2 МPx
Сamera angle
110° (horizontal)
Output video
FullHD (1920 × 1080), H.264 Main Profile
Wide Dynamic Range (WDR)
Yes
Night backlight
12 LEDs
Light sensitivity
0,01 LuX
Protection class
IP65
IK-Code
IK06
Working temperature
-40 — +65 °С
Status indicator
Status indicator
Power consumption
5.5 W, in standby — 2.1 W
Interfaces
RS485
Power supply
+12V DC, IEEE PoE 802.3af
Memory card support
TF card slot* up to 32 GB
Body
ABS material
Colors
Black
Size of the panel
52 x 137 x 28 mm
Installation
Surface mounting
Additional accessories
Sun & rain cover BR-AV06 (sold separately), 35-degree angle bracket BC-AV06 (sold separately)
Interface
Multi-language WEB interface
Lock opening
By means of a monitor; By QR code; By Guest link; By License plate; By Exit Button; The BAS-IP Link app; From API
Shortcut buttons
1 Mechanical call button
Sound Notifications
Customizable sounds for ringback, door unlock, incoming calls, call in progress and сommunication in progress
Authentication
Separate passwords for the web interface
Additional Features
Built-in relay, tamper sensor, open API
