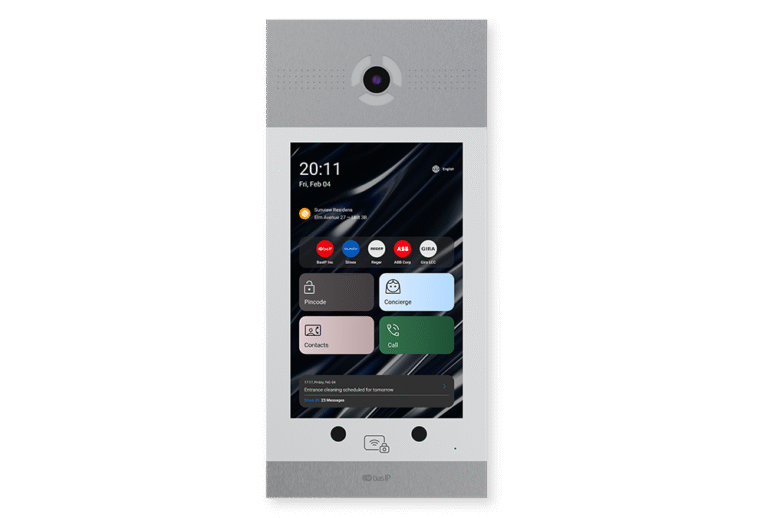

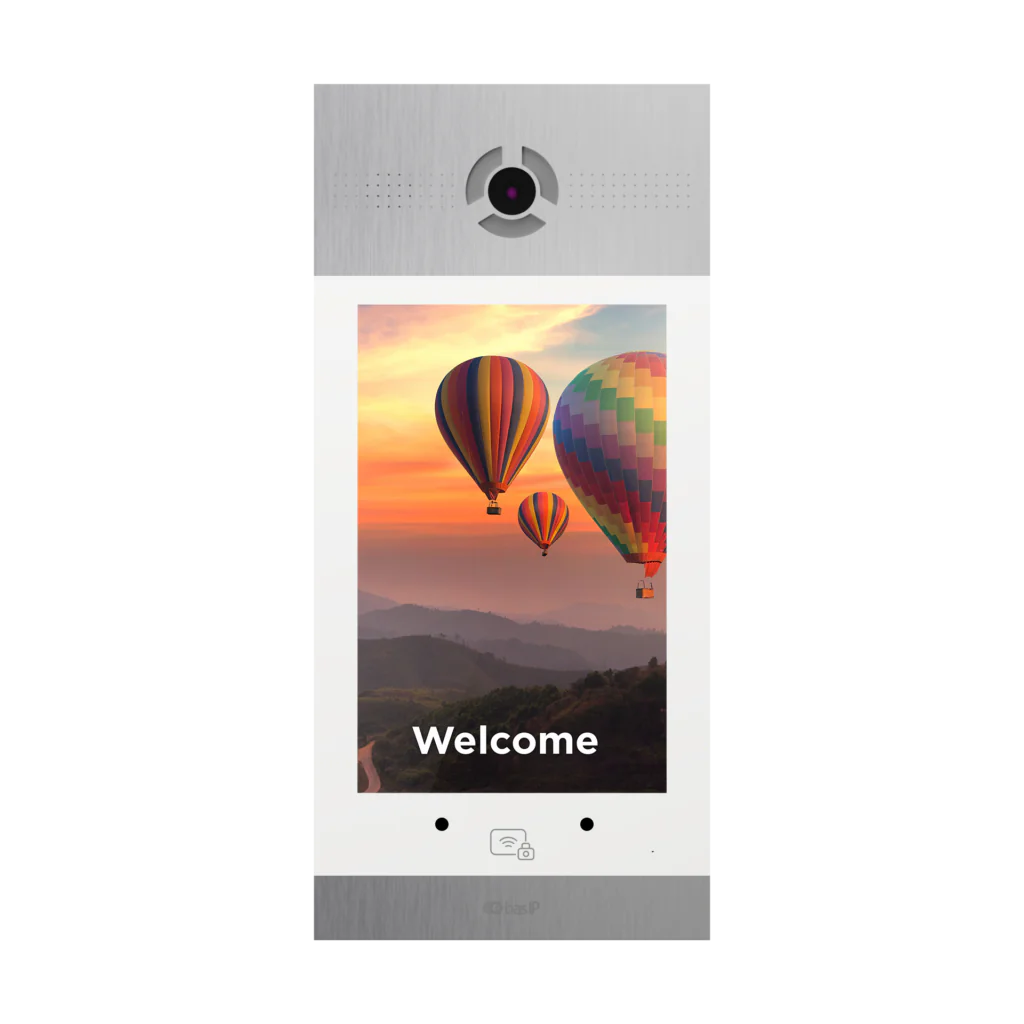

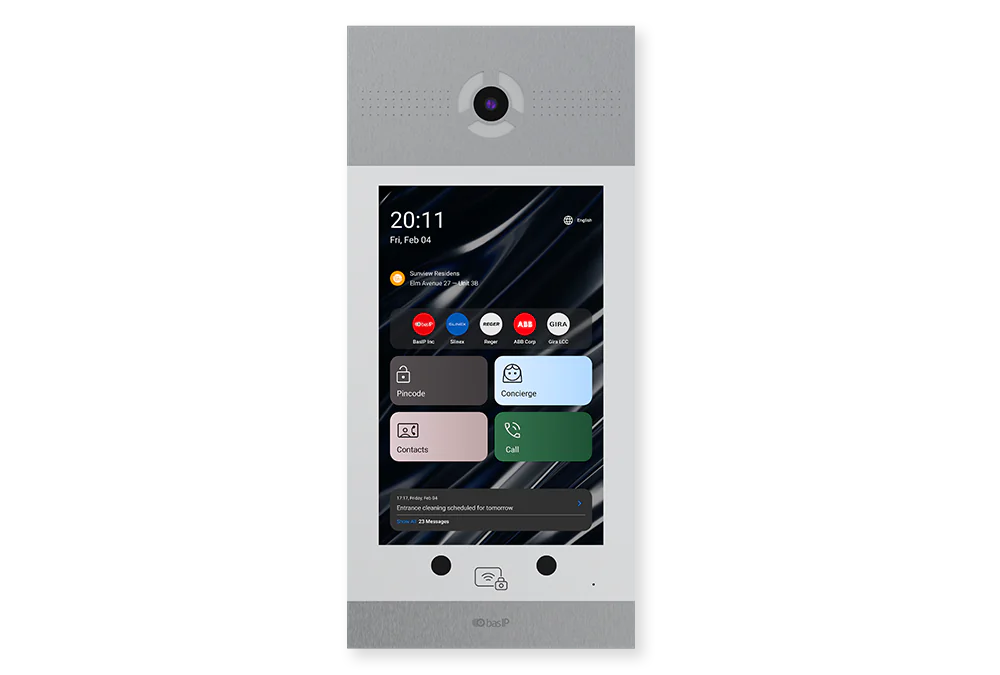

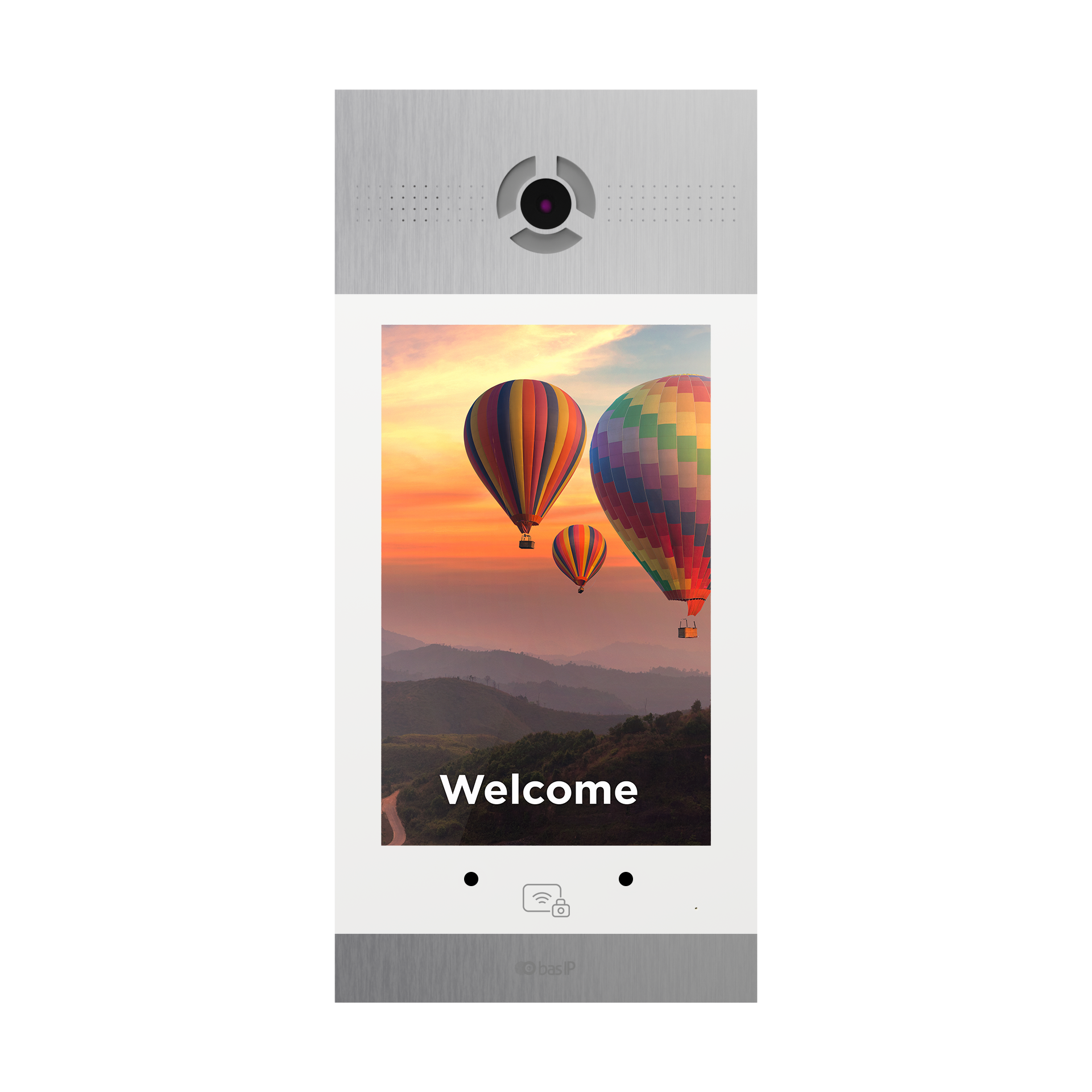

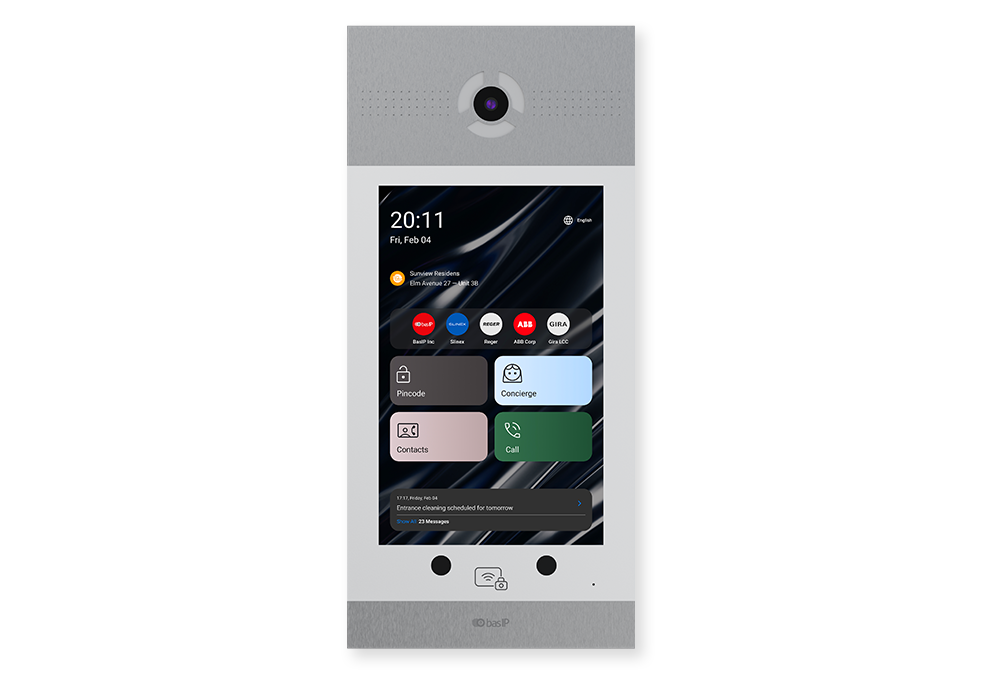

AA-14FBS

With 10,1″ IPS touch screen and face recognition

Exclusive multi-apartment entrance panel for the most luxury projects.

Maximum features

  • 10,1” IPS touch screen
  • Automatic face recognition
  • UKEY Support
  • Phone book
  • Calling the lift to the floor
  • Concierge calling
  • Flexible system setup
  • Operating temperature -40 – +65 °С

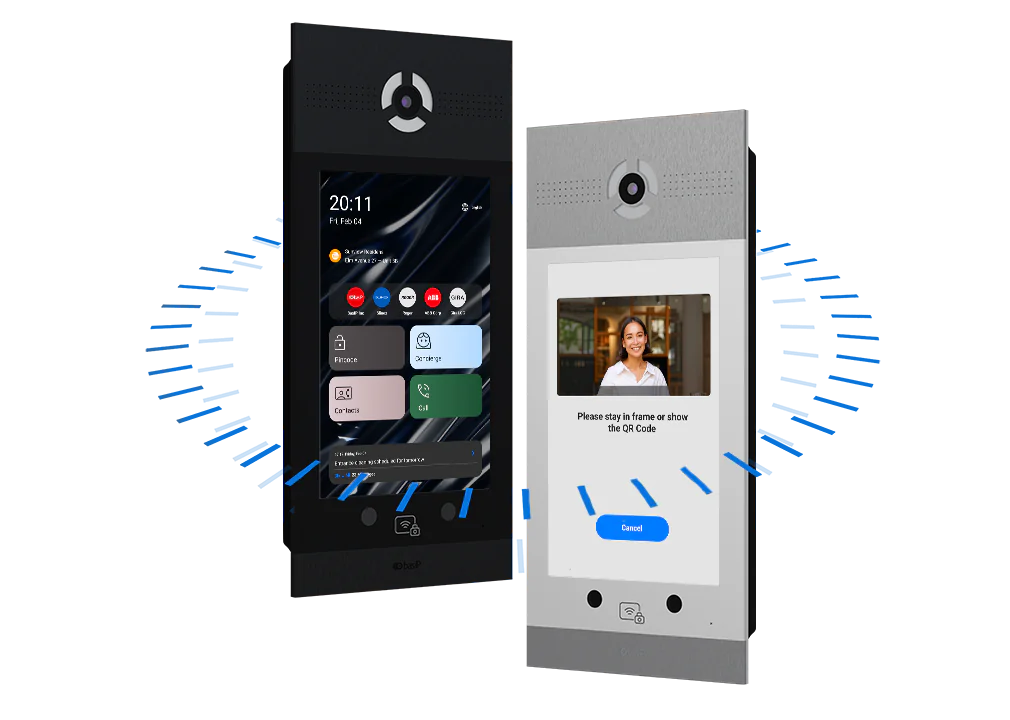

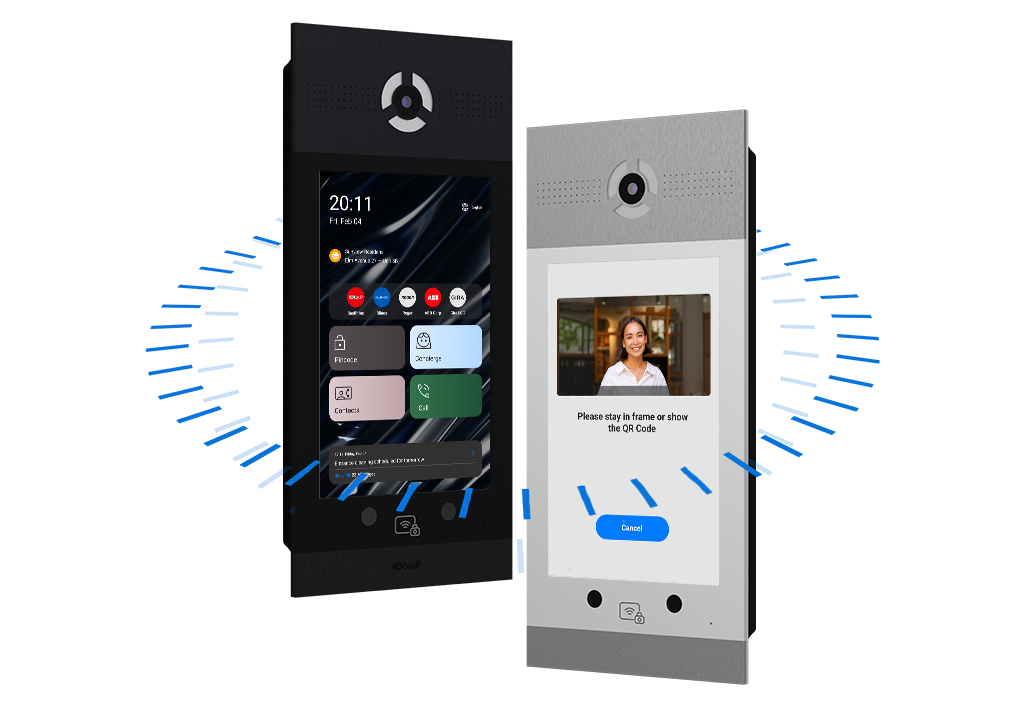

Prestigious entrance panels for luxurious projects

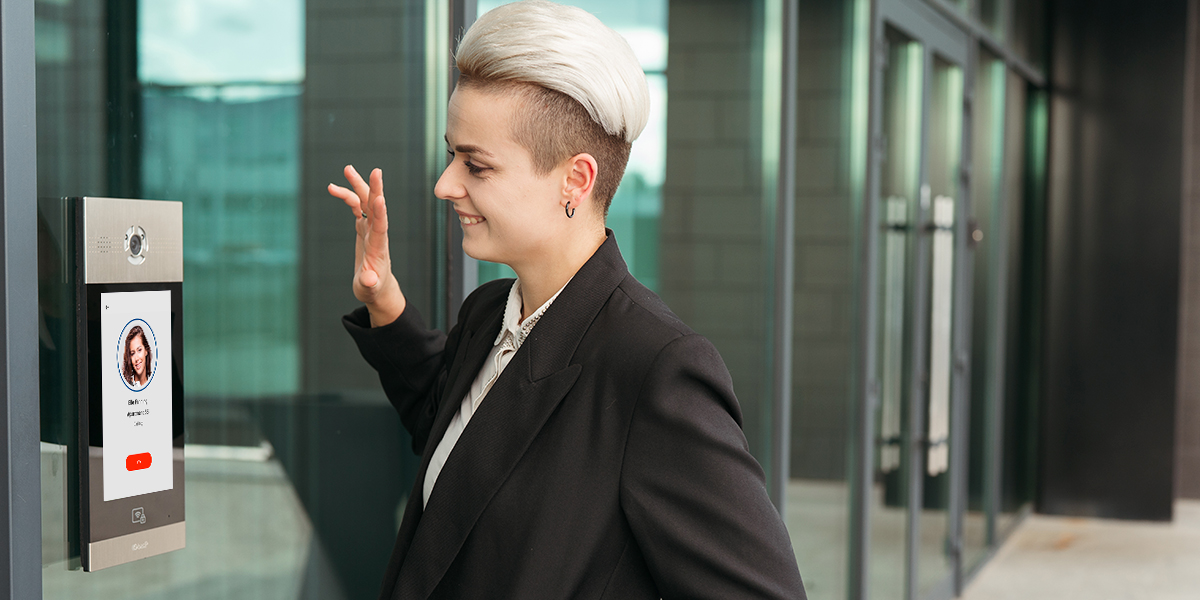

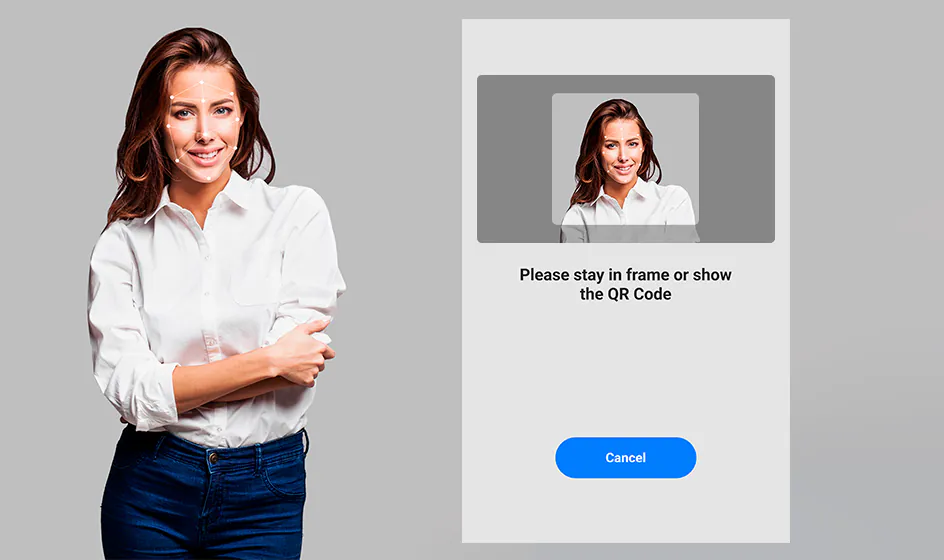

Face Recognition System

The technology employs face recognition using infrared sensors and in-depth analysis. Adding new faces to the database is possible both directly through the panel, and remotely using BAS-IP Link software.

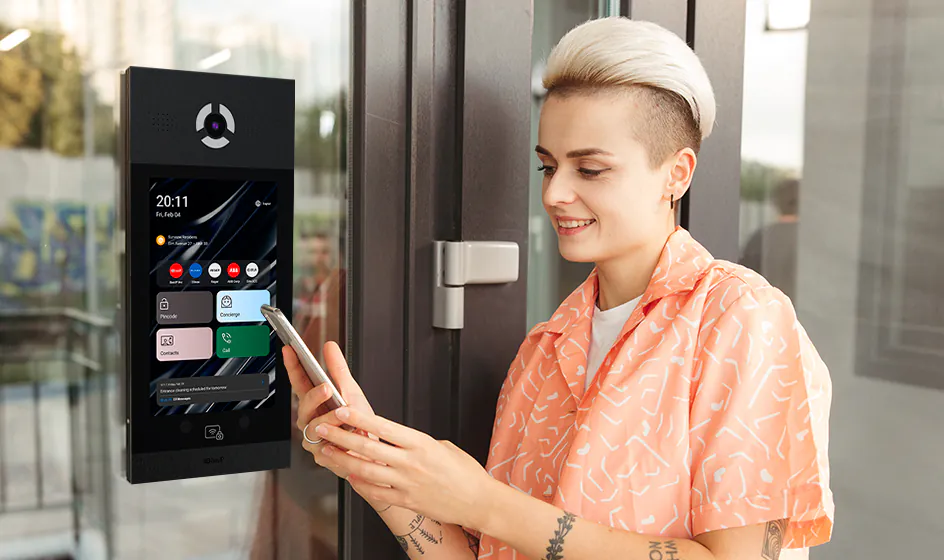

UKEY Mobile Access

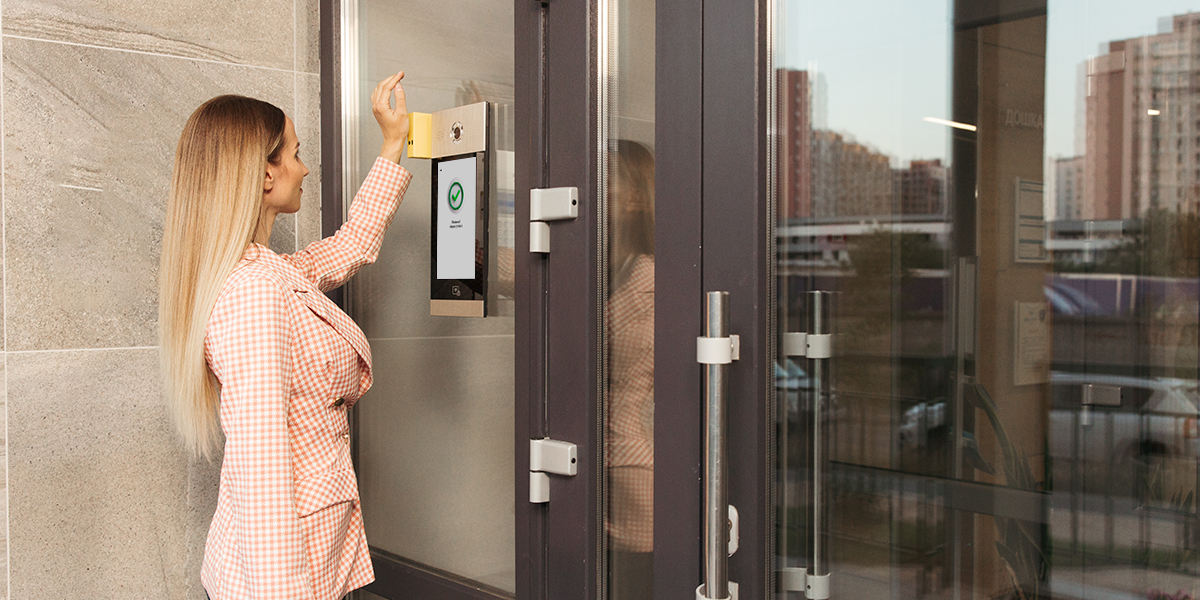

The panel supports UKEY mobile access, which allows you to open the door using your smartphone. At the same time, you can use conventional keychain or access cards.

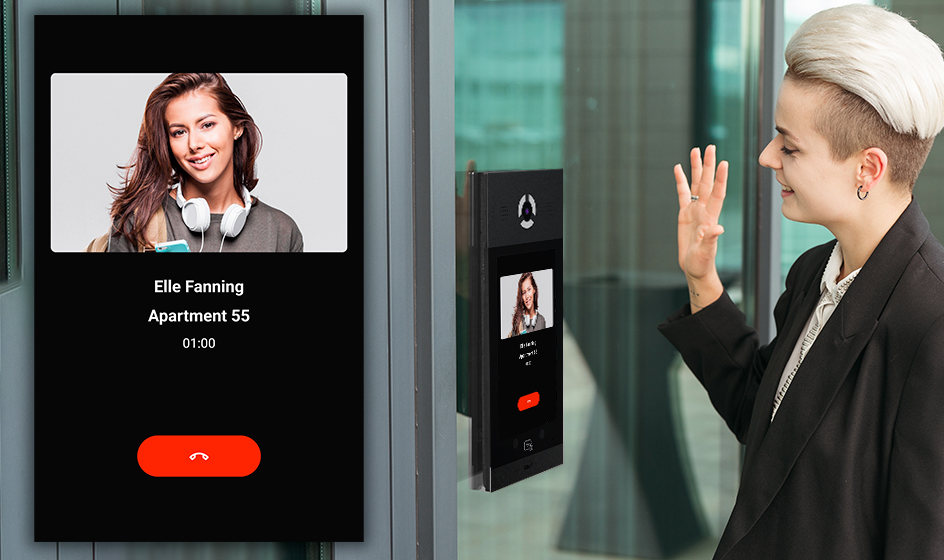

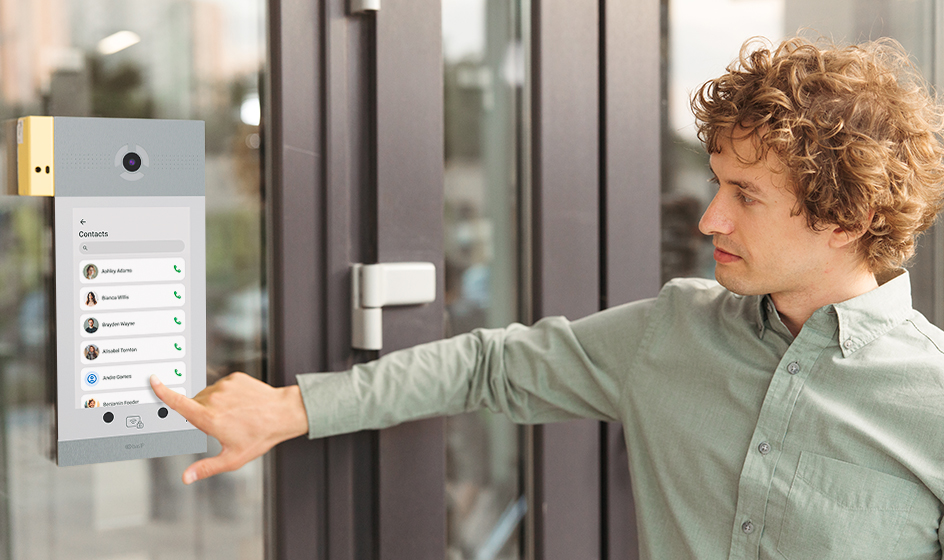

Phone book

Phone book with the display of the names of subscribers (residents), or the names of offices, if the panel is installed in the business center. This enables the visitor to make a call to a particular office, without even knowing the office number, simply by orienting himself by the name of the office.

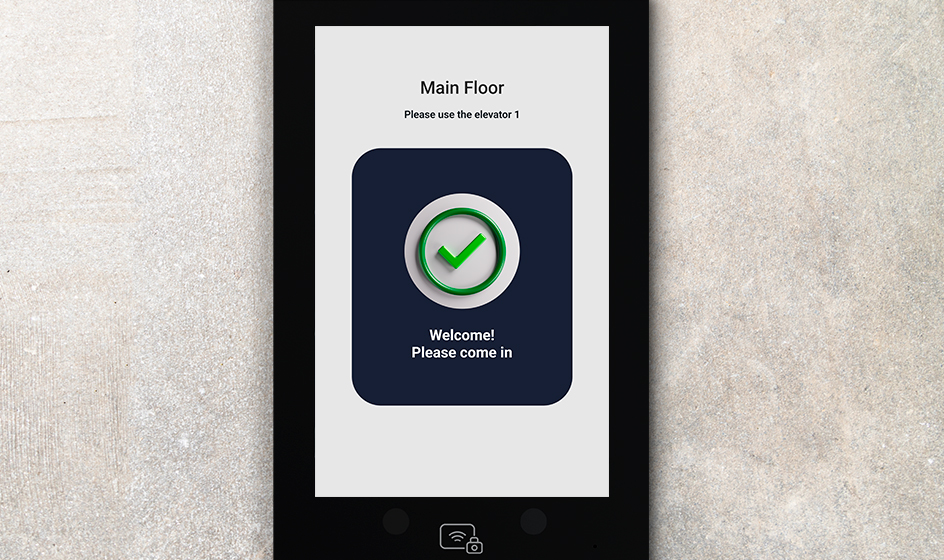

Lift calling

After the door has been opened for the visitor, the lift number is displayed on the screen of the call panel, which will take him to the desired floor.

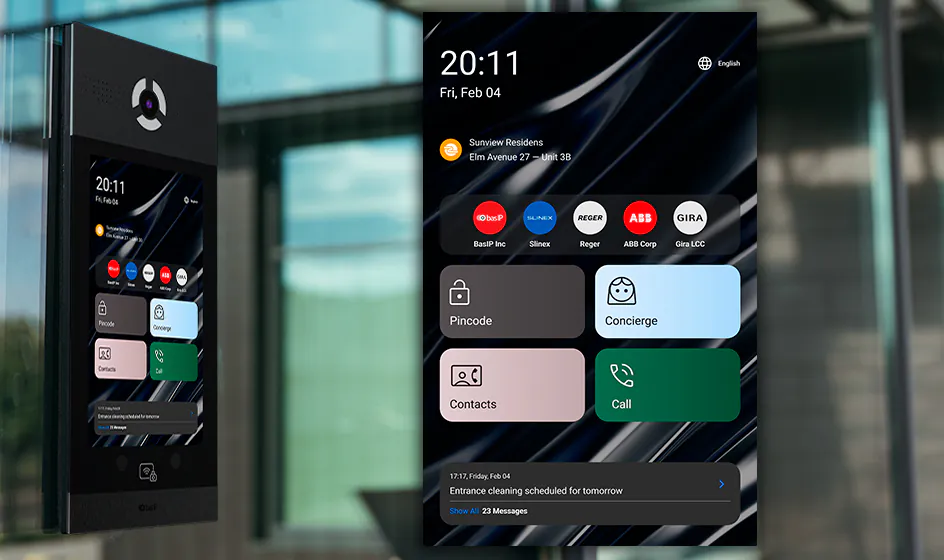

Information on the display

The ability to display informational messages, including residential complex messages where this panel is installed, and show ads, videos with sound, HTML-content to notify users or inform visitors.

Individualised

The ability to develop and load an individual menu design, which allows you to display any specialized and personalized call buttons: concierge, security, various services, administration, emergency assistance, help, and so on.

Flexibility of customisation and extensions

  • Remote add faces

    A resident can send their photo to the administrator and he or she will remotely add the photo to the desired panel.

  • Automatic configuration

    Force initialisation/configuration of a device or all devices in the system at once – remotely and automatically using Link software.

  • Fault Alert

    Messages for any panel malfunctions automatically arrive on the server of the management company.

  • Centralised configuration

    Updating via Link software – you do not need to come to each panel to update it – everything is done remotely

  • Log all events

    You can always review who made the panel settings, as well as who passed by, whom they called, etc.

  • Open API

    The API allows for the quick and easy integration of the panel into third-party systems (ACS, etc.). It duplicates all functions from the web-interface of the panel. This is very convenient if you first design the intercom system during construction, and only later create your own IT system in the residential complexes.

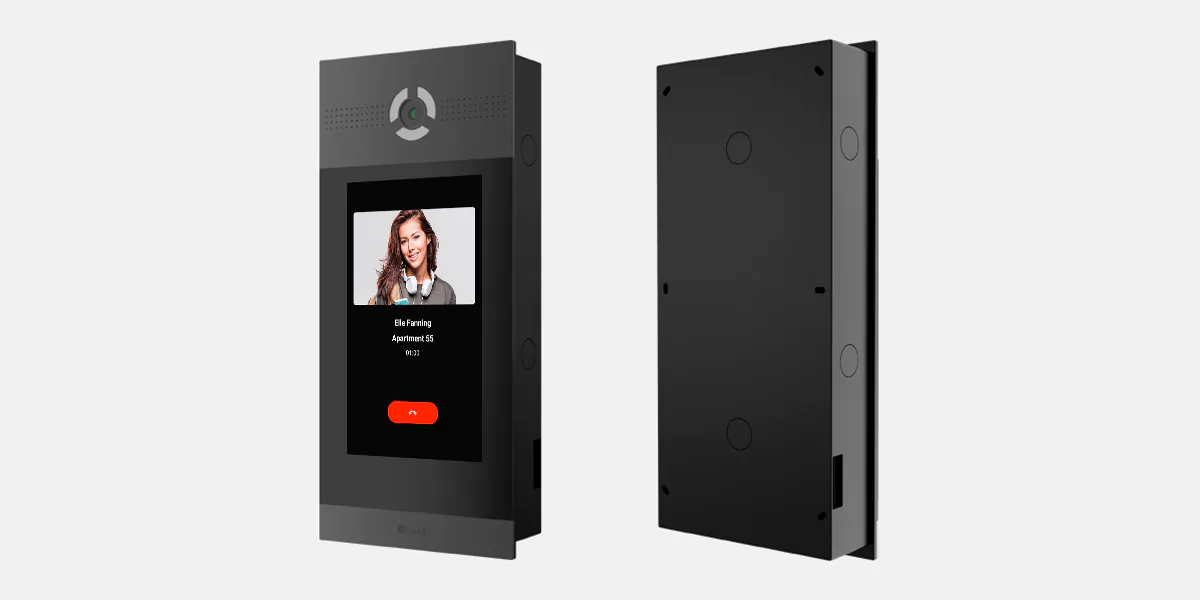

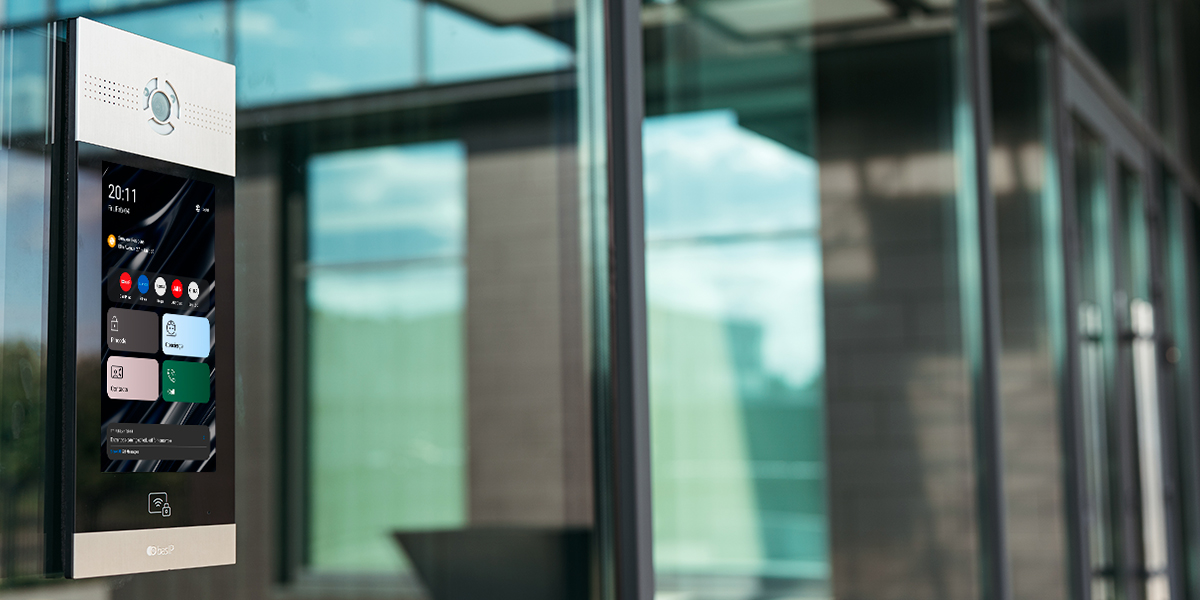

Gallery

Downloads

General characteristics

  • Panel type Multi-apartment
  • Display 10,1“ IPS, colour, with backlight and heated
  • Camera 1/3”
  • Сamera angle 176° (horizontal)
  • Resolution 2.0 Мp
  • Output video Full HD (1920×1080), H.264 Main Profile
  • Night backlight 6 LEDs
  • Light sensitivity 0.01 Lux
  • IK-Code IK06
  • Protection class IP65
  • Operating temperature -40 – +65 °С
  • Operating humidity 0% – 86%
  • Storage Humidity 0% – 60%
  • Power consumption 6.5 W, in standby – 3.6 W
  • Power supply +12 V DC (+8% -4%)
  • Case Aluminum

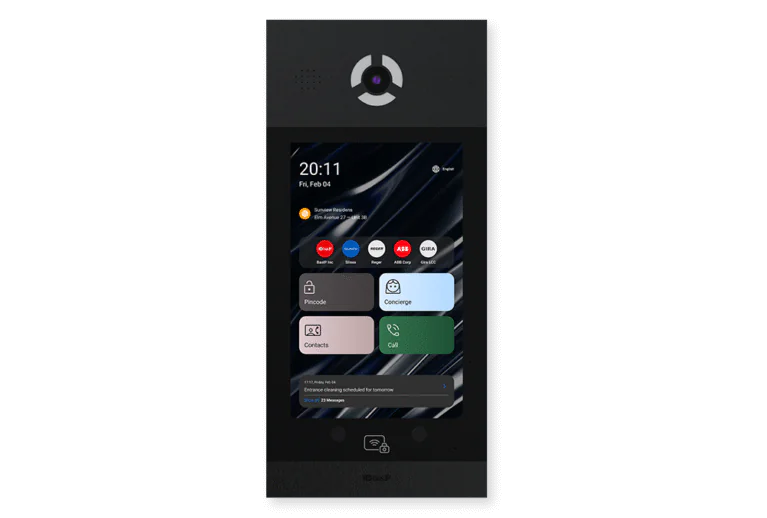

  • Colours Silver, Black
  • Dimensions 180×400×45 mm
  • Box dimensions 458×228×105 mm
  • Gross weight 3.48 kg
  • Installation Flush mounting, wall mounting with BR-AA14
  • Keyboard Touch Screen
  • Interface Multi-language, WEB-interface
  • Access control • Face Recognition
    • UKEY (EM-Marin/ MIFARE®/NFC/Bluetooth)
    • Multi-factor authentication
  • Calling the lift to the floor Yes
  • Identifiers in the panel memory (QR codes, cards, key fobs, UKEY, access codes) 20 000
  • Face recognition identifications 10 000
  • Integration with ACS Wiegand
  • Built-in Wiegand output for card, key fob, and UKEY identifiers 26, 32, 34, 37, 40, 42, 56, 58, 64, 80 bits
  • Connection of the additional SH-12 module and its support • Wiegand input: from 6 to 58 bits inclusive
    • Wiegand output for card, key fob, UKEY, QR, Face, Digital code, and all other types of identifiers: from 26 to 128 bits inclusive
  • Reading range • NFC, Mifare cards and 125 kHz cards – up to 5 cm
    • BLE – adjustable 10 cm – 10 m
  • Supported standards • BLE (Bluetooth Low Energy): 2,45 GHz Bluetooth 4.x, Bluetooth 5.x.
    • Mifare®, 13,56 MHz ISO14443A: Mifare®Standard, Mifare®Hi-Memory, Mifare®Ultralight, Mifare®Classic 1K/4K, Mifare®Classic 7UID, Mifare® Plus SL1 and SL3
    • NFC, 13,56 MHz: ISO 14443/15693
    • Cards 125 kHz: ASK and FSK
  • Lock opening • By means of a monitor
    • Face Recognition Identification
    • By QR code
    • By guest link
    • By Pin
    • By access card
    • By license plates
    • The BAS-IP Link app
    • The BAS-IP Intercom app
    • The BAS-IP UKEY app
    • From API
  • Authentication Separate password for WEB-interface settings
  • Additionally • Software Link support
    • SIP P2P
    • Built-in relay
    • Proximity sensor
    • Open API
