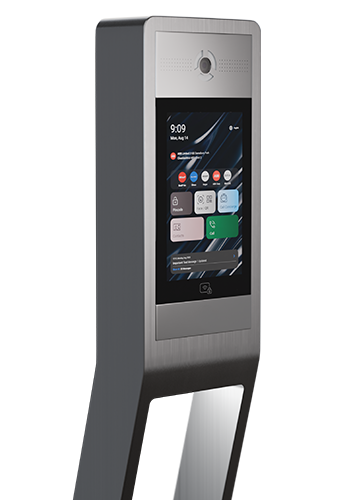

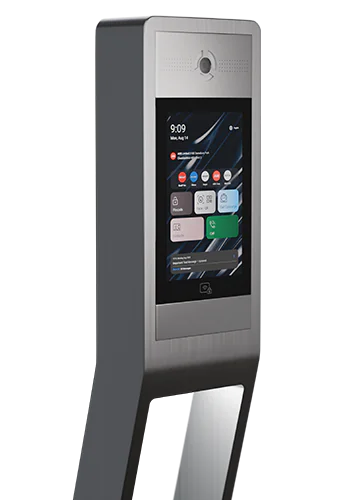

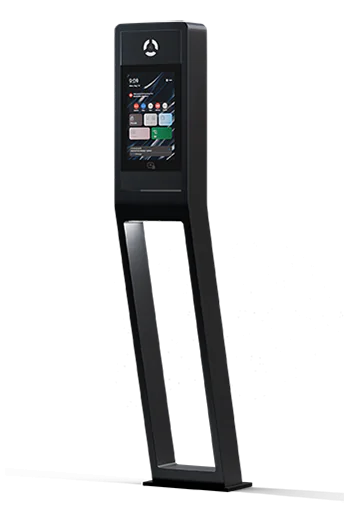

Versatile Vehicle Access for Every Environment
Intelligent Solutions for Complex Challenges

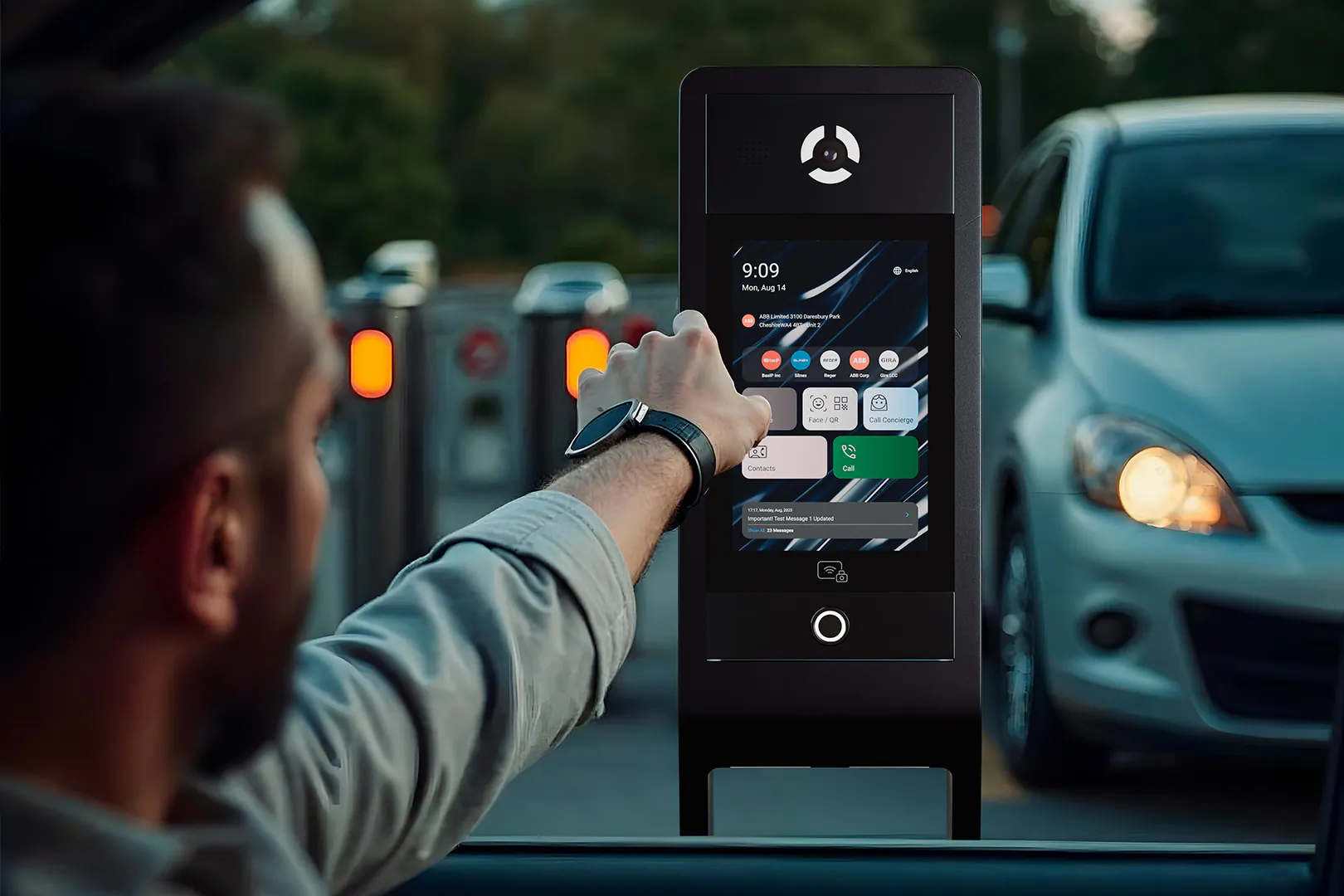

The interface features a modern design that meets premium-class standards. Powered by the AA-14FBIS panel, it is user-friendly and intuitive due to its clear structure and logical navigation. The system provides full access to all functions without unnecessary steps, ensuring a smooth experience from the moment a driver approaches.

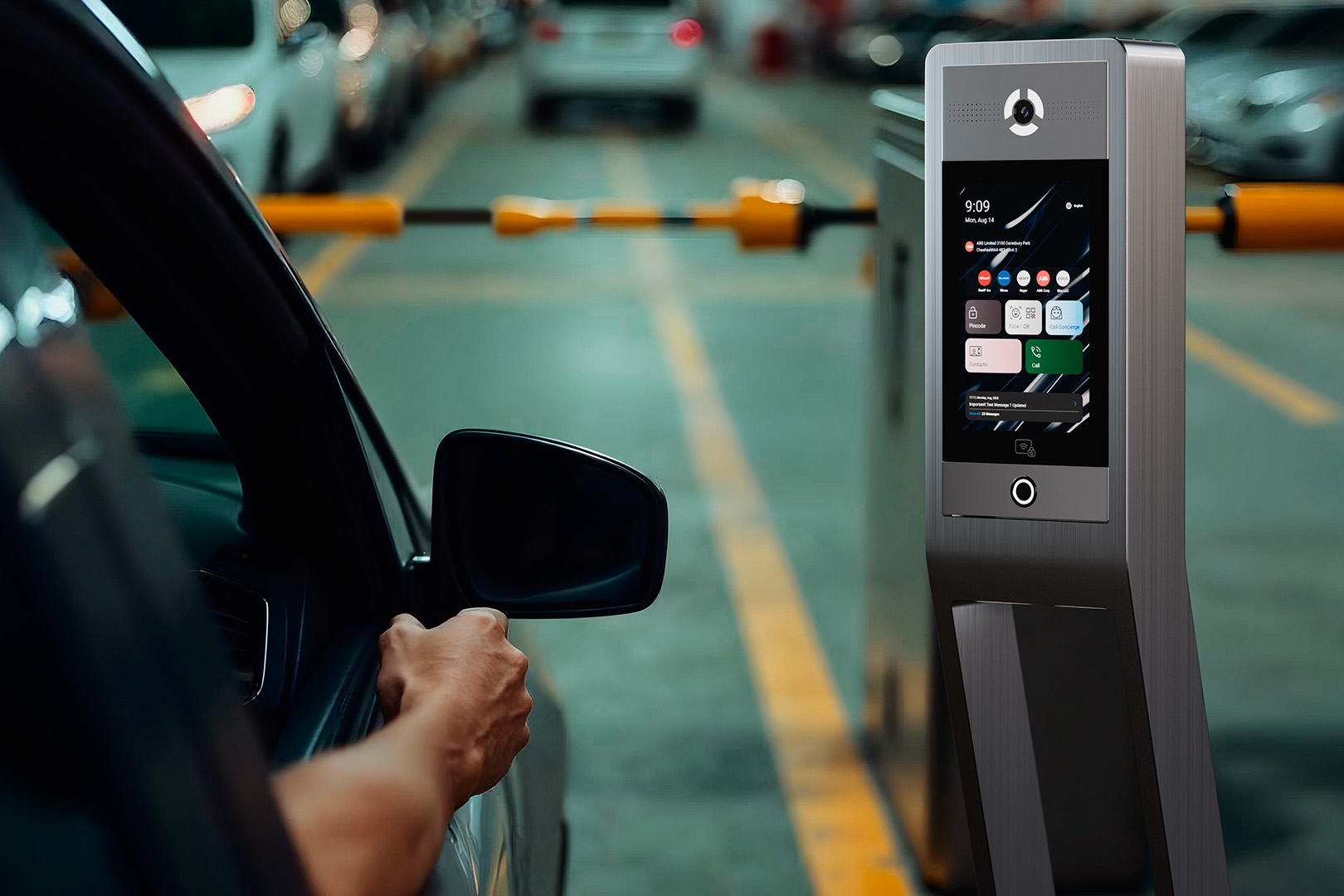

Eliminate congestion at the entrance during peak hours. By utilizing high-speed QR code scanning and instant facial recognition, the OQ-01 ensures that residents and authorized visitors move through the gates seamlessly. This frictionless entry process prevents traffic build-up and keeps vehicle flow constant.
Remove the risks associated with the human factor in security. The system provides 24/7 uncompromised protection through multi-factor authentication, including PIN codes and biometric verification. It delivers a reliable, automated gatekeeping solution that never gets distracted and ensures only authorized vehicles gain access.
Navigating large multi-building complexes can be chaotic for drivers. The OQ-01 solves this by providing real-time parking guidance immediately upon entry. By directing vehicles to available spaces, it optimizes traffic flow, reduces driver frustration, and improves the overall efficiency of the facility.

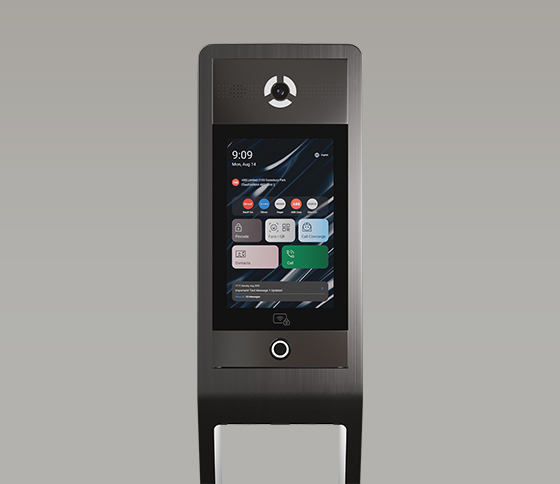

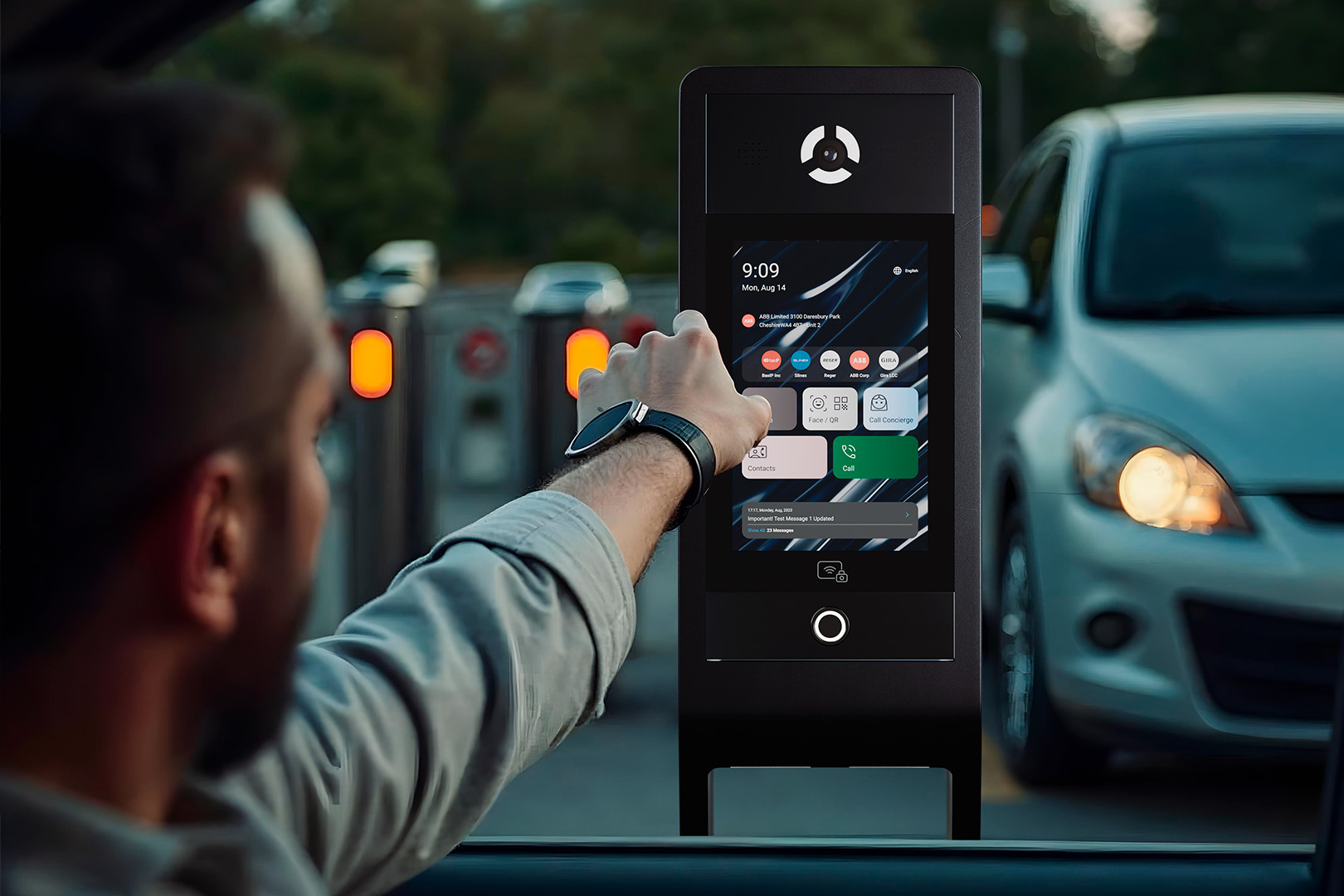

Intuitive Next-Gen GUI
The interface is designed to meet the highest premium-class standards, offering a seamless and modern user experience. Its clear structure and logical navigation allow drivers to access all functions without unnecessary steps. Whether identifying a face or scanning a QR code, the process is fast, intuitive, and efficient.

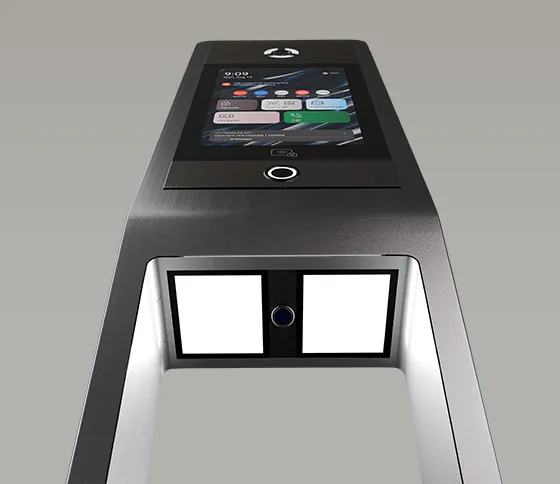

External Lighting
The OQ-01 features specialized bottom illumination that casts light directly onto the ground around its base. This external lighting ensures the bollard is clearly visible to drivers in low-light conditions, significantly improving safety and site navigation. It creates a comfortable and secure approach for every vehicle entering the complex.

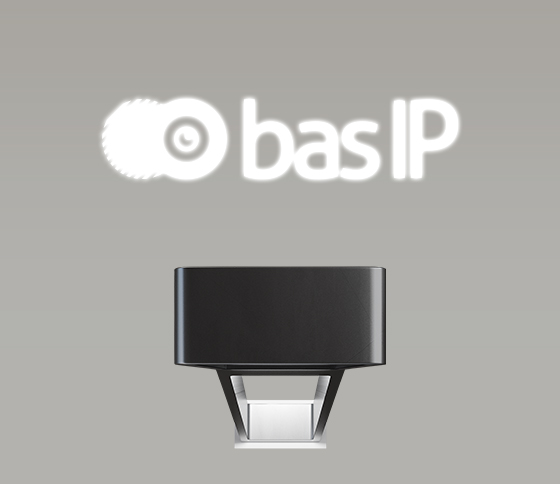

Logo Reflection
Elevate your brand identity with the integrated logo reflection system. This feature projects your company logo or custom text directly onto the floor, asphalt, or tiles beneath the bollard. Beyond its sophisticated aesthetic, the illuminated reflection adds a layer of modern luxury and helps visitors easily identify the entry point.

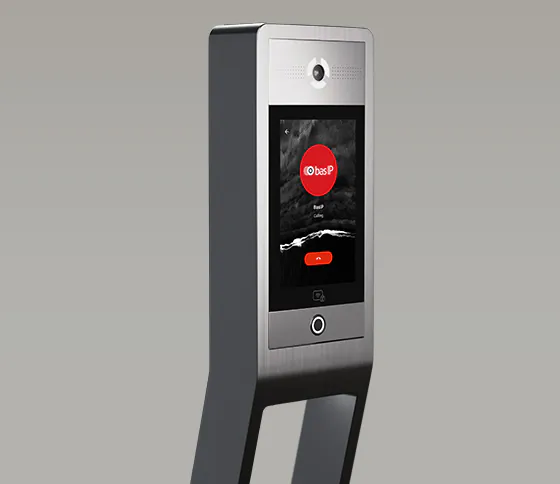

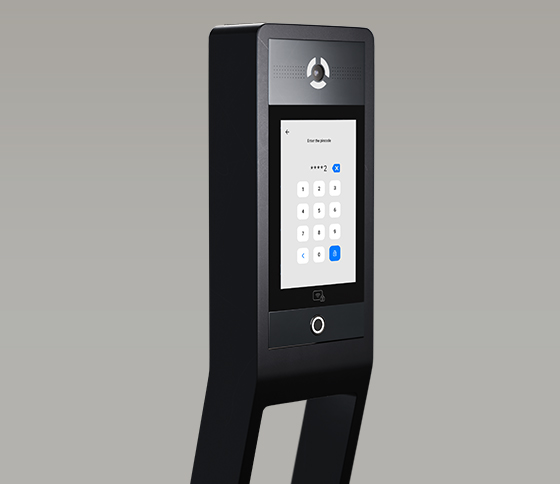

Premium Stainless Steel Finishes

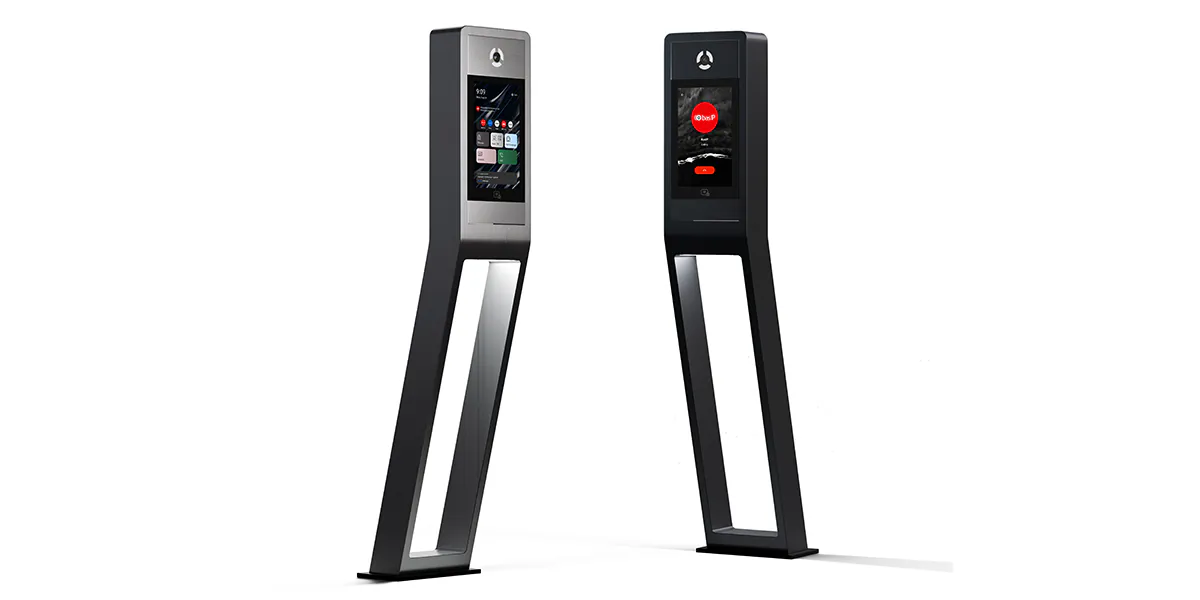

Engineered from high-grade stainless steel, the OQ-01 offers industrial strength and exceptional durability. You can choose between two sophisticated finishes: Dark Metal, for a bold, contemporary look , or Space Grey, which provides a touch of modern luxury with a subtle metallic lustre. Both options ensure the bollard remains resilient while seamlessly blending into high-end architectural environments.
Maximum Capabilities
10.1" IPS Touchscreen
Flawless visual clarity and vibrant color display
Flexible Configuration
Easily adapt the system to fit any building's needs
Modern, Compact Design
A sleek, space-saving bollard providing a modern aesthetic for any environment.
Intuitive Directory
Quickly find and contact residents with absolute ease
Concierge & Call Forwarding
Instantly connect with the concierge desk or guards
Extreme Climate Ready
Built to operate flawlessly in any harsh environment

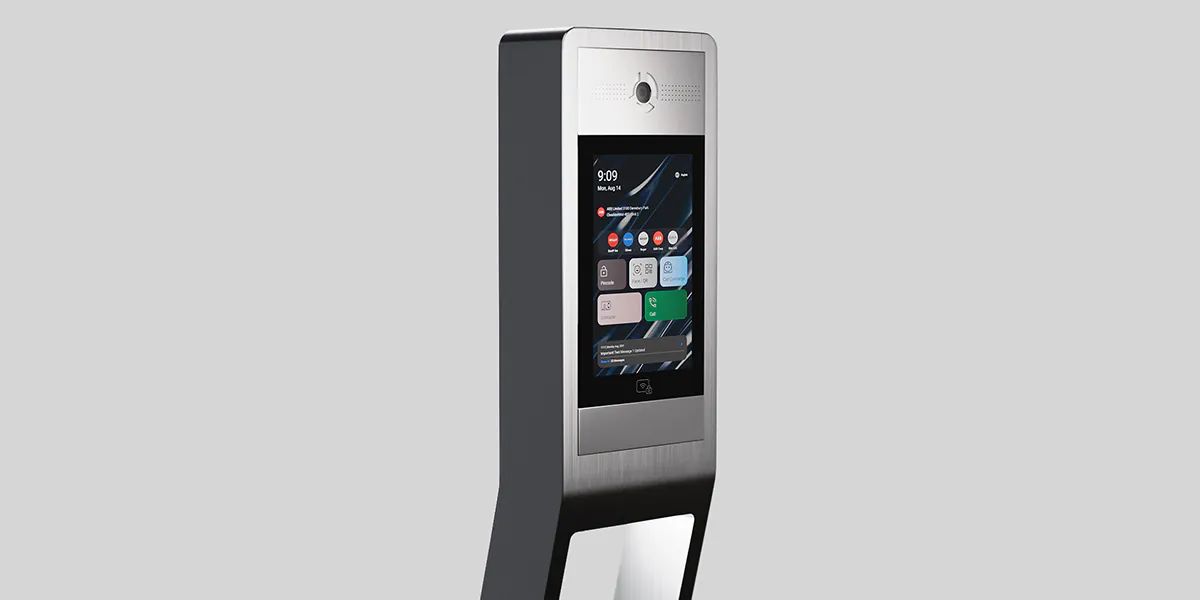

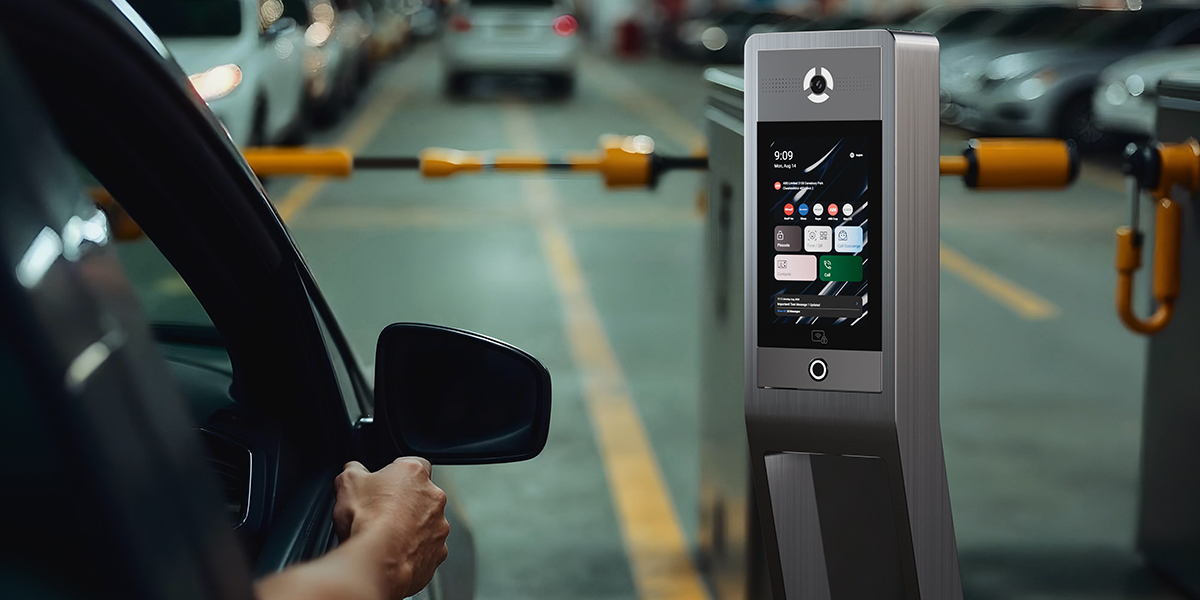

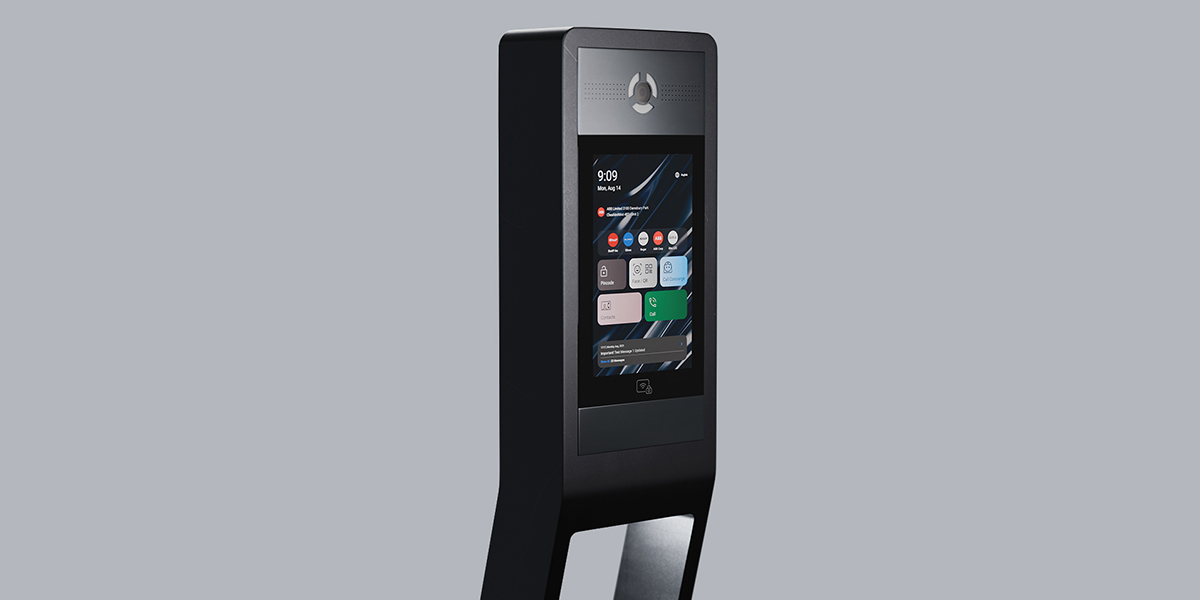

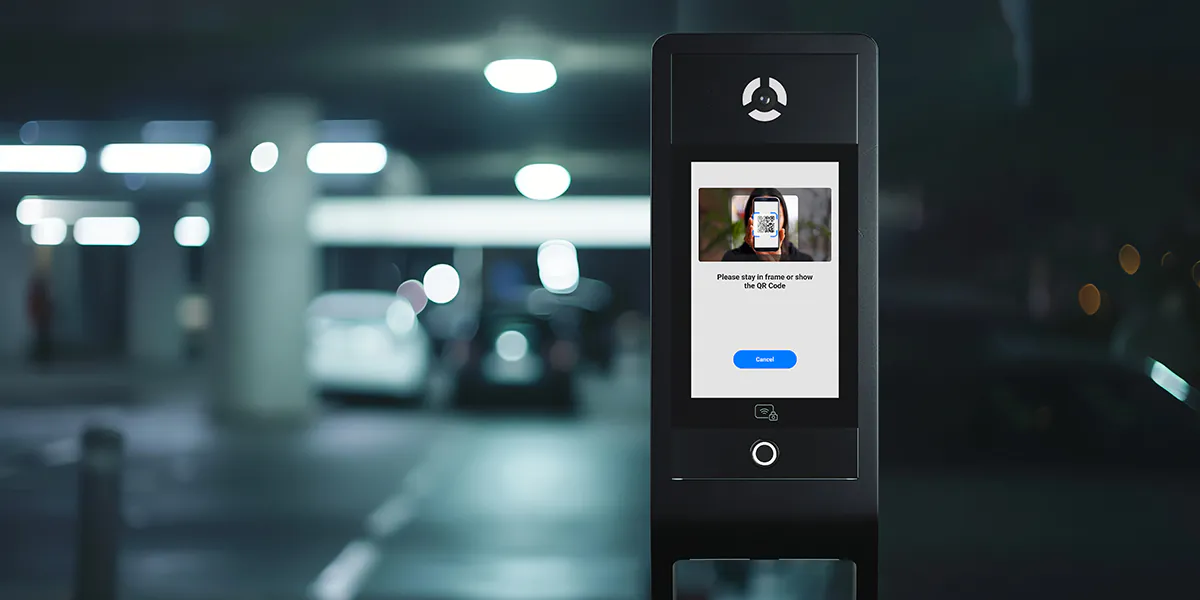

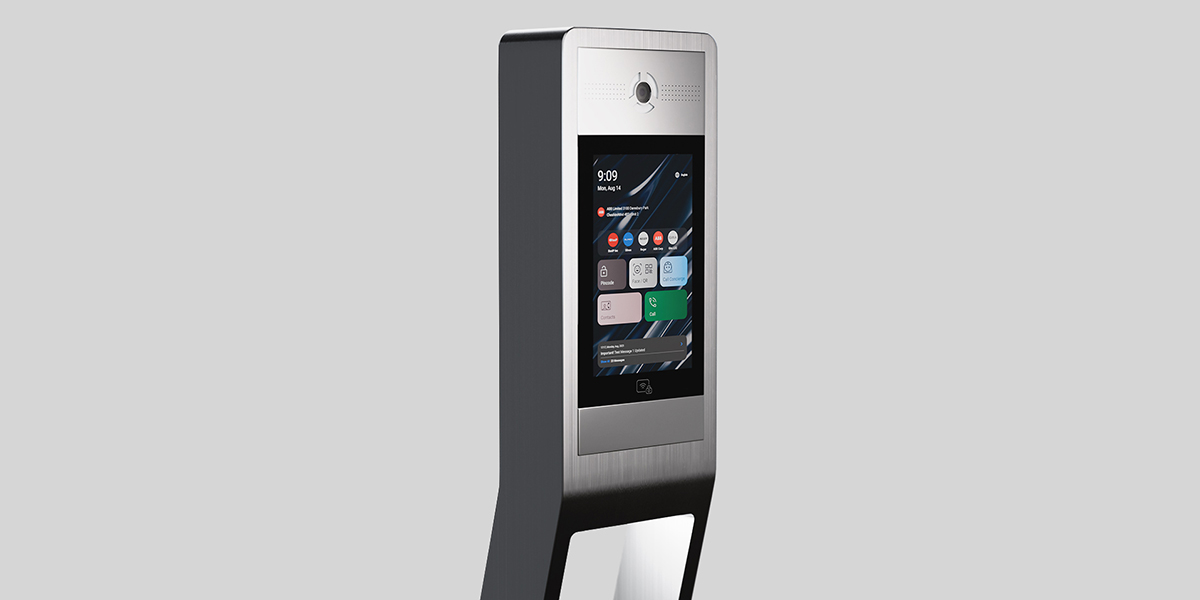

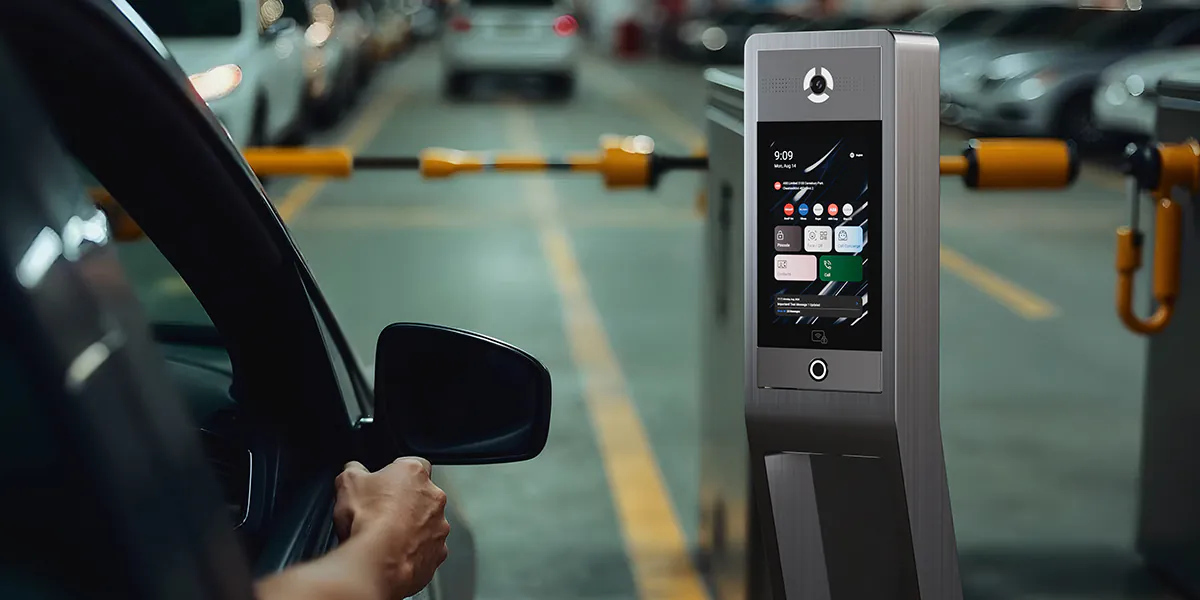

Gallery
Download
General characteristics
- Display 10.1’’ IPS, color with backlight and heated
- Camera Sensor 1/3”
- Camera Resolution 2 MP
- Viewing angle 110° (horizontal)
- Output video Full HD (1920 × 1080), H.264 Main Profile
- Night backlight 6 LEDs
- Built-in UKEY reader Supported
- Induction loop output TRS socket, low-frequency audio signal 1.2V; 8.2 kΩ
- Built-in Relay Supported
- RS-485 Supported
- Alarm Inputs 4 inputs (door sensor, exit button, fire alarm, etc.)
- Wiegand Interface Output, 26–128 bits (output)
- Special features Integrated floor projector with customizable logo or message
- Protection class IP65
- Impact protection IK07
- Operating temperature –40°C to +65°C
- Power consumption 17.8 W (standby — 3.8 W)
- Power supply 12V DC or IEEE 802.3af PoE
- Body material Stainless Steel
- Colors Black, Silver
- Installation Floor-mounted
- Supported protocols SIP 2.0, P2P, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP, ONVIF
- Proximity sensor Supported
- Communication features Concierge calling, Calls forwarding, DTMF support
- Authentication methods Face recognition, QR code, RFID access card or key fob, Guest link, License plates, Link app, UKEY app, Apple Watch (via Link APP PLUS), API, monitor-based unlocking
- Multi-factor authentication Supported
- IDs in memory Up to 30,000 (including 10,000 faces)
- ACS Integration Wiegand output: 26–128 bits for all identifier types (cards, fobs, QR, Face, etc.)
- Access Management Flexible access rule creation; Identifier validity control; Lock control configuration; Elevator control support (via BAS-IP EVRC-IP)
- System & Device Settings Server-based access control (Link cloud or self-hosted server); Backup and restore, Remote firmware updates; Multilingual interface (device & WebUI); Password management
- Additional Features Customizable display (logo, announcements); Customizable notification sounds; 3rd-party integrations (Bond elevator control and other systems); Link software support; Open API for integrations
- Optional Modules Supports additional 1-8 locks via SH-42 series expansion modules; Connection of the SH-12 I/O external; Wiegand module
