12 Buttons Door Entry Panel

Multi-button entrance panel with external induction loop connectivity and status indicators

WHERE TO BUY

Multi-Button Entrance Panel with External Induction Loop and Status Indicators.

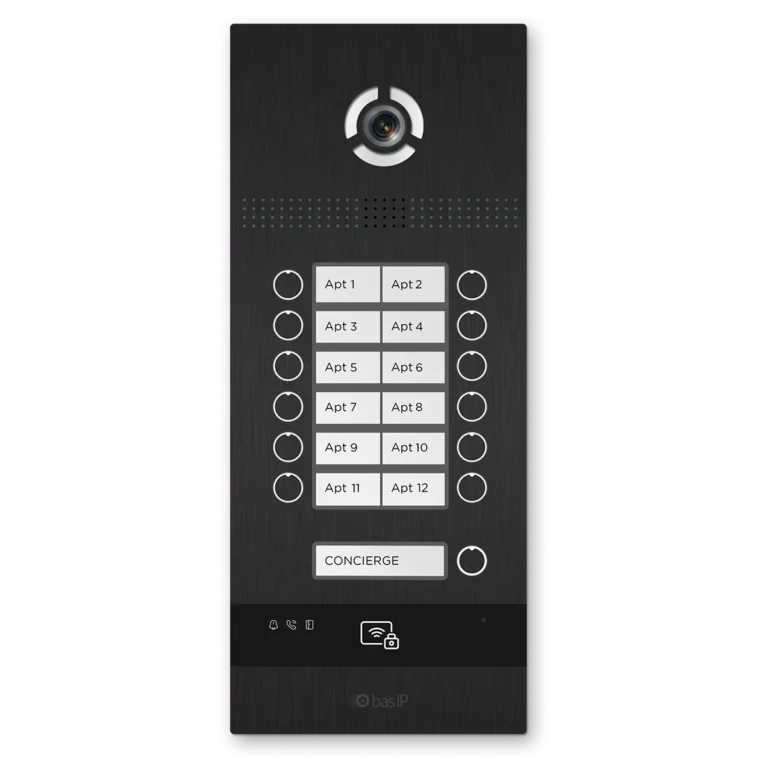

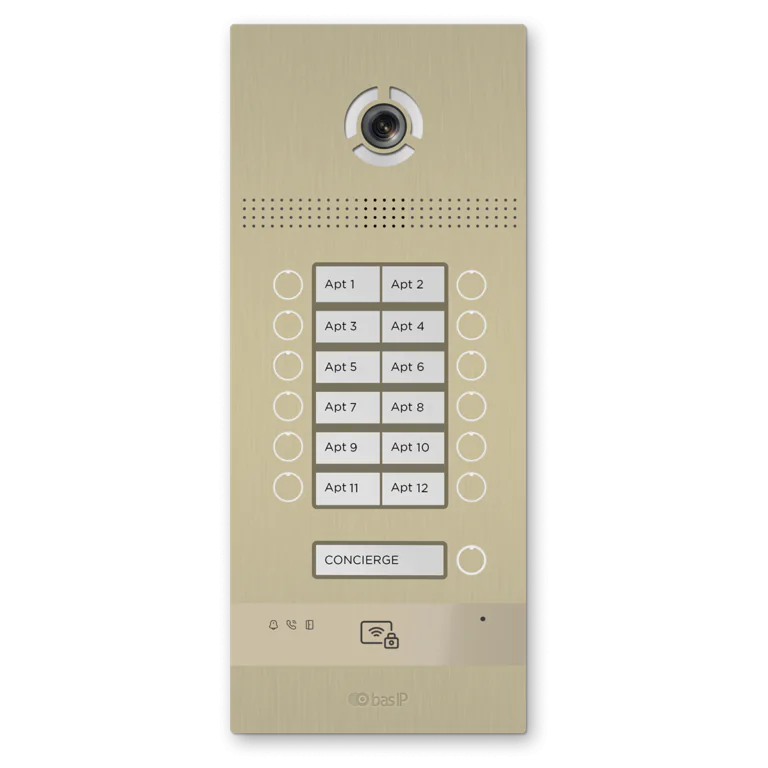

The BI-12FBI entrance panel is available in gold, silver, and black. It features a wide-angle camera and supports BAS-IP UKEY mobile access.

With the BI-12FBI panel, you can make direct calls to internal monitors and the concierge. Its design is well-suited for small offices or cottages.

This panel includes built-in facial recognition technology, utilizing infrared sensors on the camera. It allows the panel to automatically unlock upon identifying tenants or visitors and can deliver important messages or useful information about the residential complex.

The specifications and appearance of the device may differ from those stated or may change without prior notice!

Panel type: Multi-button

Induction Loop: Yes
Status indicator: 3 indicators (Calling, Talking, Lock-release)

Resolution: 2,0 Мp

Сamera angle: 110° (horizontal)

Output video:HD (1280×720), H.264 Main Profile

Night backlight: 6 LEDs

Light sensitivity: 0.01 Lux

IK-Code: IK08

Protection class: IP65

Working temperature: -40 – +65 °С

Operating humidity: 0% – 86%

Storage Humidity: 0% – 60%

Power consumption: 6,5 W, in standby – 3,6 W

Power supply: +12 V DC (+8% -4%)

Case: Aluminum

Colors: Gold, Silver, Black

Dimensions: 379×158×49 mm

Installation: Flush mounting, wall mounting with BR-AA12

Keyboard: Mechanical buttons with backlight

Box dimensions: 440×202,5×97 mm

Gross weight: 3,42 kg

Interface: Multilanguage, WEB- interface

Lock opening:

• By means of a monitor
• Face Recognition Identification
• By QR code
• By guest link
• By Pin
• By access card
• By license plates
• The BAS-IP Link app
• The BAS-IP Intercom app
• The BAS-IP UKEY app
• From API

Access control:

• Face Recognition
• UKEY (EM-Marin/ MIFARE®/NFC/Bluetooth)
• Multi-factor authentication

Supported standards:

• BLE (Bluetooth Low Energy): 2,45 GHz Bluetooth 4.x, Bluetooth 5.x.
• Mifare®, 13,56 MHz ISO14443A: Mifare®Standard, Mifare®Hi-Memory, Mifare®Ultralight, Mifare®Classic 1K/4K, Mifare®Classic 7UID, Mifare® Plus SL1 and SL3
• NFC, 13,56 MHz: ISO 14443/15693
• Cards 125 kHz: ASK and FSK

Reading range:

• NFC, Mifare cards and 125 kHz cards – up to 5 cm
• BLE – adjustable 10 cm – 10 m

Calling the lift to the floor: Yes

Face recognition Identifiers: 10 000 faces

Identifiers in the panel memory (QR codes, cards, key fobs, UKEY, access codes): 20 000

Onvif (Profile S): Yes

Integration with ACS: Wiegand
Built-in Wiegand output for card, key fob, and UKEY identifiers: 26, 32, 34, 37, 40, 42, 56, 58, 64, 80 bits

Output for connecting an external induction loop for the hearing impaired: Low-frequency Audio signal 1.2V; 8.2 kOhm.
Type of output for connecting an external induction loop: Socket (female) TRS
Connection of the additional SH-12 module and its support:
• Wiegand input: from 6 to 58 bits inclusive
• Wiegand output for card, key fob, UKEY, QR, Face, Digital code, and all other types of identifiers: from 26 to 128 bits inclusive

Quick-dial buttons: Concierge call button

Number of ringtones: 4 polyphonic ringtones

Authentication:

• Separate password for settings
• WEB-interface

Additionally:

• Software Link support
• SIP P2P
• Built-in relay
• Open API
