BAS-IP / Hardware / Call Box / AV-05SD
EAN: 5060514914168 (black)
EAN: 5060514914175 (gold)
EAN: 5060514914182 (silver)
AV-05SD SILVER / BLACK / GOLD
EAN: 5060514914168 (black)
EAN: 5060514914175 (gold)
EAN: 5060514914182 (silver)

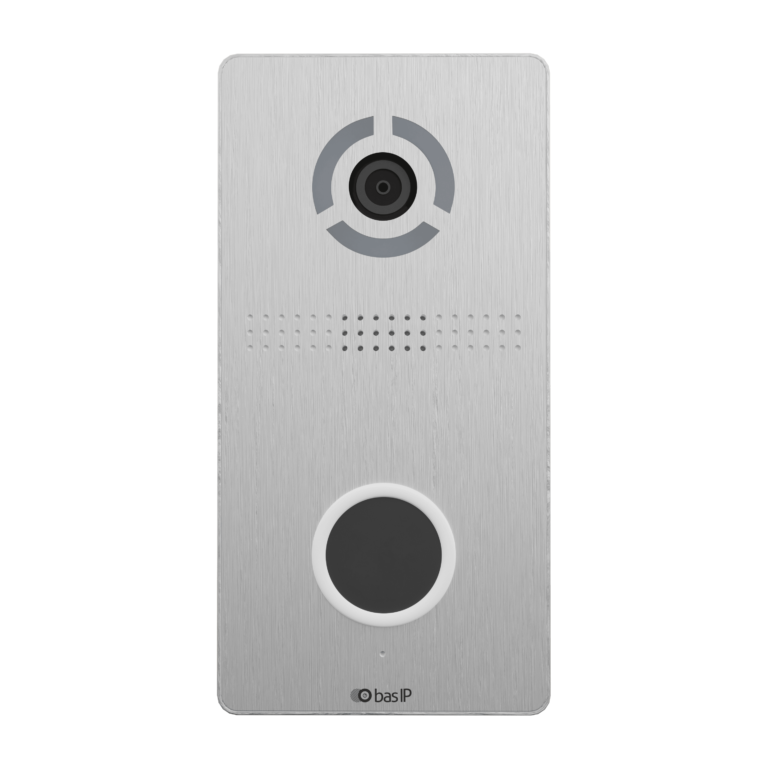

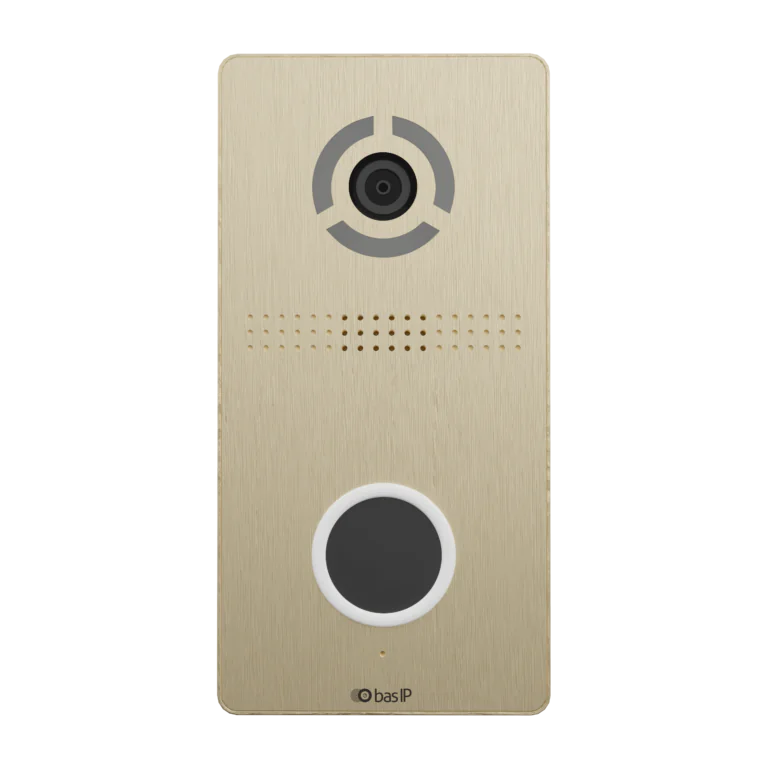

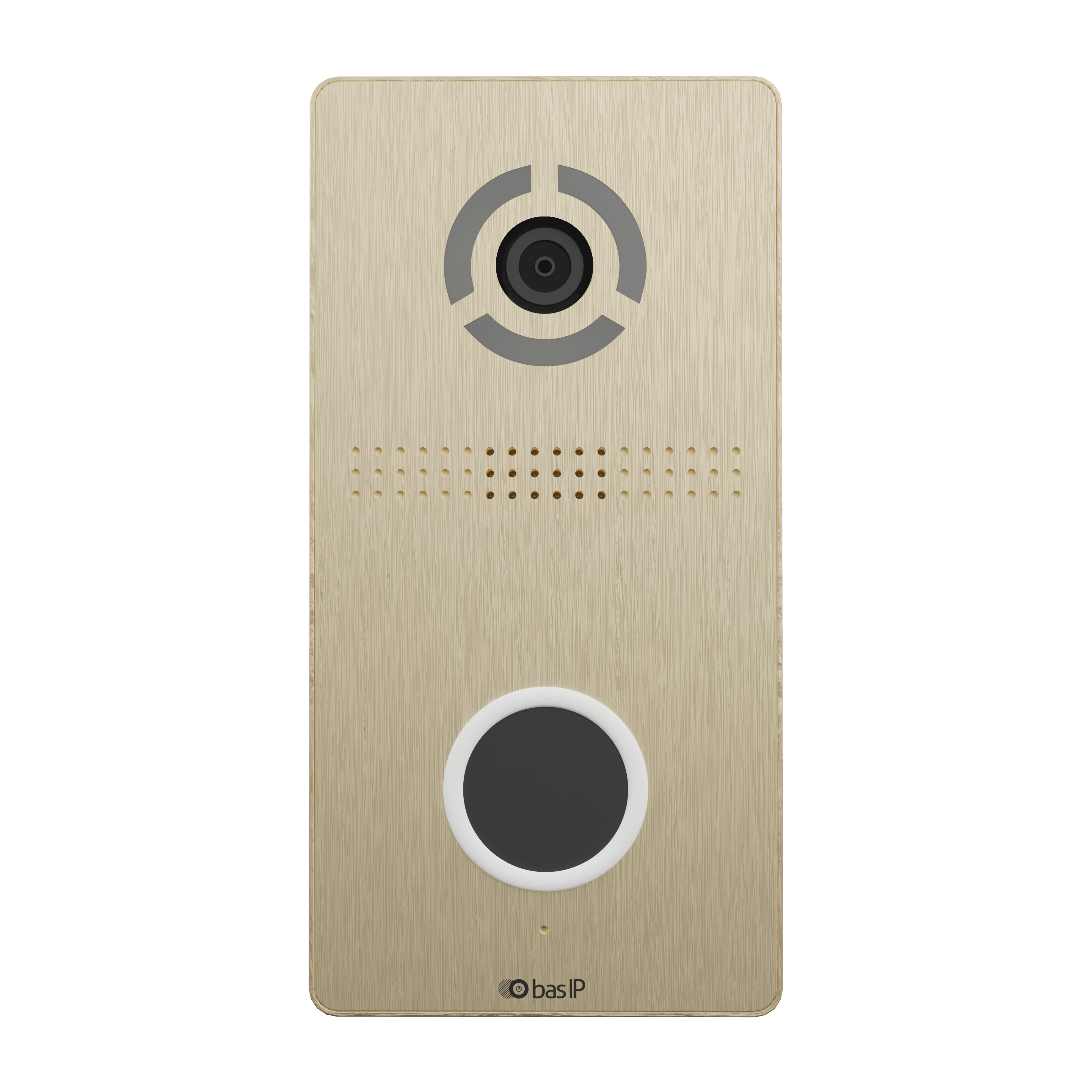

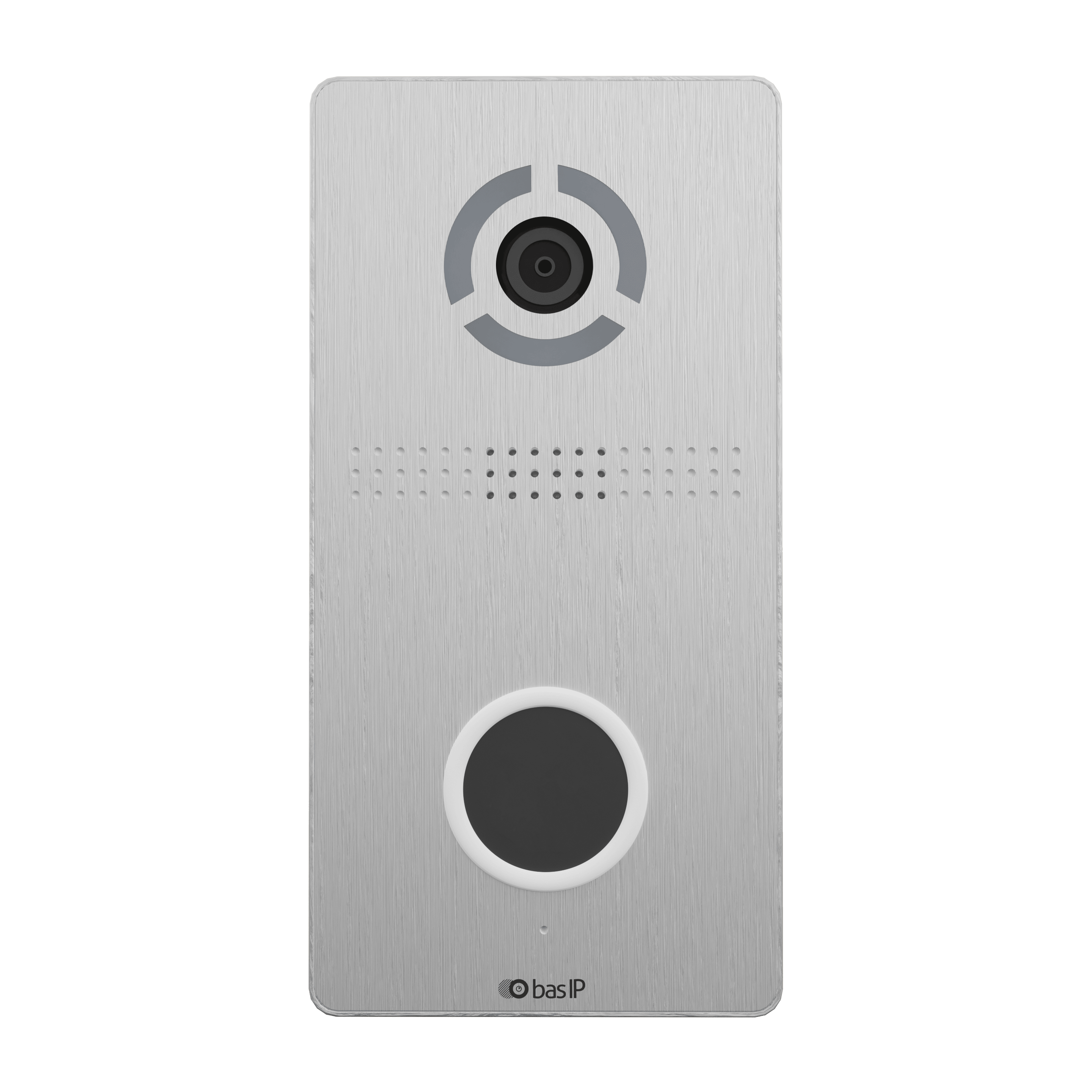

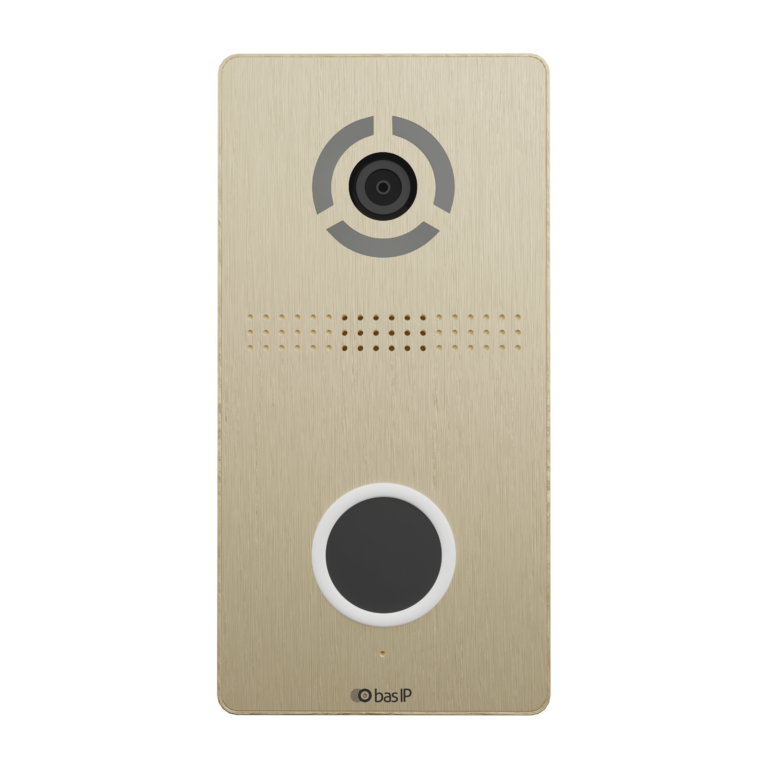

AV-05SD SILVER / BLACK / GOLD

Individual entrance panel with touch-free button

BAS-IP AV-05SD – stylish vandal-proof panel with installation by the surface method.

WHERE TO BUY

BAS-IP AV-05SD – stylish vandal-proof panel with installation by the surface method. This individual entrance panel is suitable for installation both in apartments and in the office, factory, gas station, etc.

More detailed information about configuration, connection, and installation can be found here.

Panel type: Individual
Camera: 1/3”
Сamera angle: 100° (horizontal)
Resolution: 2,0 Мp
Output video: 720p (1080×720), H.264 Main Profile
Night backlight: 6 LEDs
Light sensitivity: 0,01 Lux
Response distance: 15-25 cm
Protection class: IP64
IK-Code: IK08
Operating humidity: 0% – 89%
Storage Humidity: 0% – 60%
Power consumption: 6,5 W, in standby – 3,6 W
Power supply: PoE, +12 V DC (+12% -6%)
Case: Aluminum
Colors: Black, silver, gold
Dimensions of the panel:88×173.5×41 mm
Installation:Wall mounting
Working temperature: -40 – +65 °С
Gross weight:0,76 kg
Interface: Multilanguage, WEB-interface
Lock opening:
• By means of a monitor
• By QR code
• By guest link
• From the BAS-IP Intercom app
• From API
Call button: Touch
Integration with ACS: Input WIEGAND-26
Authentication: WEB-interface and RTSP stream
Talking mode: Duplex
Additionally:
• Built-in relay
• Software Link support
• SIP P2P
• Open API
