AT-07L

IP Indoor Video Door Phone

IP indoor video entry phone with a 7-inch IPS touch-screen colour display.

Mounting benefits

Flush mounting (bracket included)
Flush-mounted thickness: 5 mm
Side wire connection
Wall mounting (bracket included)
Wall-mounted thickness: 26.5 mm
Aluminium body

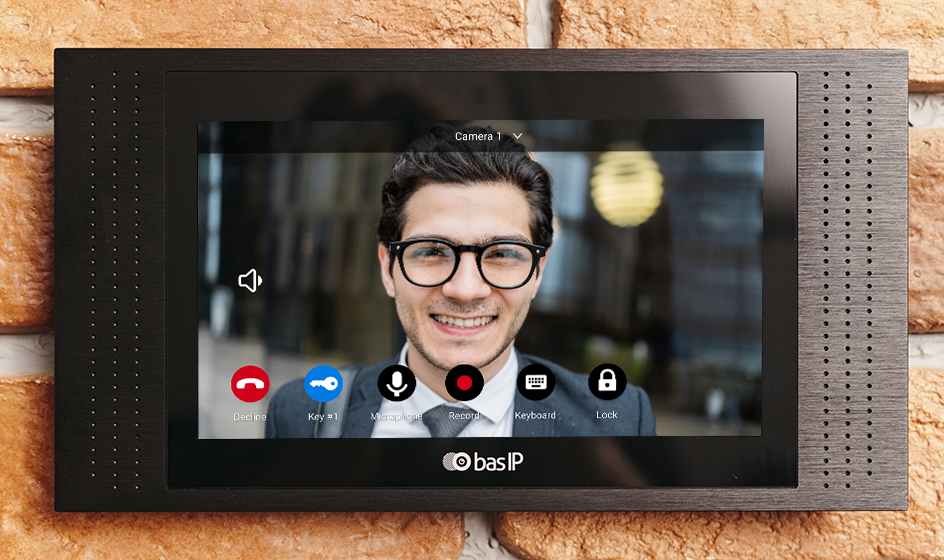

High definition screen

The AT-07L monitor is primarily distinguished by its very high definition screen, and thanks to the proprietary image enhancement technologies, its extremely high elaborations are felt. Screen elements appear crisp and the colour is unobtrusive and realistic.

Wide model range of apartment stations
Large selection of access control systems
Intercom APP that works anywhere
3 Years Warranty

Lift call

For the convenience of residents, in the navigation panel on the main screen of the monitor, there is a lift call button. Thanks to this you can call yourself a lift directly to the floor.

Simple installation

The wall mount installation offers two options with a socket built-in and without.

Meaning, in the first case, it is a standard way to connect the monitor through the built-in socket, in the second, it does not require any alterations to the wall, the cable runs along the wall and connects to the monitor through a side entrance.

Possible types of built-in socket for mounting AT-07L

Square (86×8 mm)
Round (60 mm)
Rectangular (107×67.5 mm)
Wall

Installation

The AT-07L indoor monitor has two installation options: wall mount and flush mount, using a special brackets. The installation brackets are included. The monitor has a flush-mount magnetic arm.

IPS screen

Thanks to the use of IPS technology, even a child can see the picture on the monitor, looking at it from a non-right angle. The side view will also please the eye with a clear image. The monitor has been developed with improved contrast and reduced power consumption.

Quad splitter

The “Quad splitter” function divides the monitor screen into four rectangular areas, each of which contains an image from a video cameras and an entrance panels connected to your intercom system. This allows you to see the images from four cameras at once in real-time.

Installing third-party applications

AT-07L indoor monitor is ready for the installation of third-party applications from any systems and manufacturers. This gives practically limitless opportunities to control home automation.

If you already have a Smart home system from another manufacturer, you only need to install the mobile application of this manufacturer on the BAS-IP monitor. This will make managing generated scenes more convenient.

Flexibility of customisation and extensions

8-core processor

The processor in the AT-07L monitor consists of two quad-cores that distribute different tasks among themselves depending on their type while providing fast and flexible multitasking.
High definition video support

The AT-07L monitor supports video with a higher resolution and quality than standard definition.
Android 10.0

With the Android 10.0 operating system, the monitor benefits from fast performance and multitasking, as well as convenient and intuitive operation.
Downloading custom MP3 ringtones

The ability to download your MP3 tunes will make the arrival of guests always pleasant.

Gallery

Specifications

General characteristics

Display 7” IPS LCD, capacitive touch screen
Operating system Android 10.0
Screen resolution 1024×600
Memory Recording video and audio to SD card (up to 32 GB)
Built-in camera No
Power supply PoE, +12 V DC (+10% -4%)
Dimensions 236×128×26.5 mm
Installation Wall mounting, flush mounting (brackets included)
Case Aluminium
Colours White, gold, black
Operating Humidity 20% – 80%
Operating temperature -10 – +55 °С
Mobile app BAS-IP Intercom (free)
Possibility of connecting additional monitors Up to 8 monitors
Number of indoor or outdoor panels Up to 9 panels
Number of multi-apartment outdoor panels Up to 9 panels
Number of IP cameras Up to 32 cameras
Alarm 8 inputs for sensors
Connection of the call button Yes
Calling the lift to the floor Yes
Controlled output in the case of an incoming call Yes
Extra slots Slot for SD card (microSDHC), RS-485
Number of ringtones 9 polyphonic ringtones
Possibility of using custom MP3 ringtones Yes
Intercom type Video intercom
Home automation control Light, curtains, lift
Scenes Yes
Voicemail Yes
Message reception support Yes
Multimedia Viewing video, photo, and audio files from the SD card
Standby mode Yes, time adjustable
Several screensaver types in standby mode Quad splitter; Multi-camera live viewing; Clock; Photo frame; Live tour view; Single IP camera live viewing.
DND mode Yes, time adjustable
Silent mode Yes, time adjustable
Backup photos taken during a call Yes
Ability to install third-party apps Yes
Third-party widget support Yes
Software update Via Ethernet
Box dimensions 290×160×80 mm
Gross weight 1.22 kg
