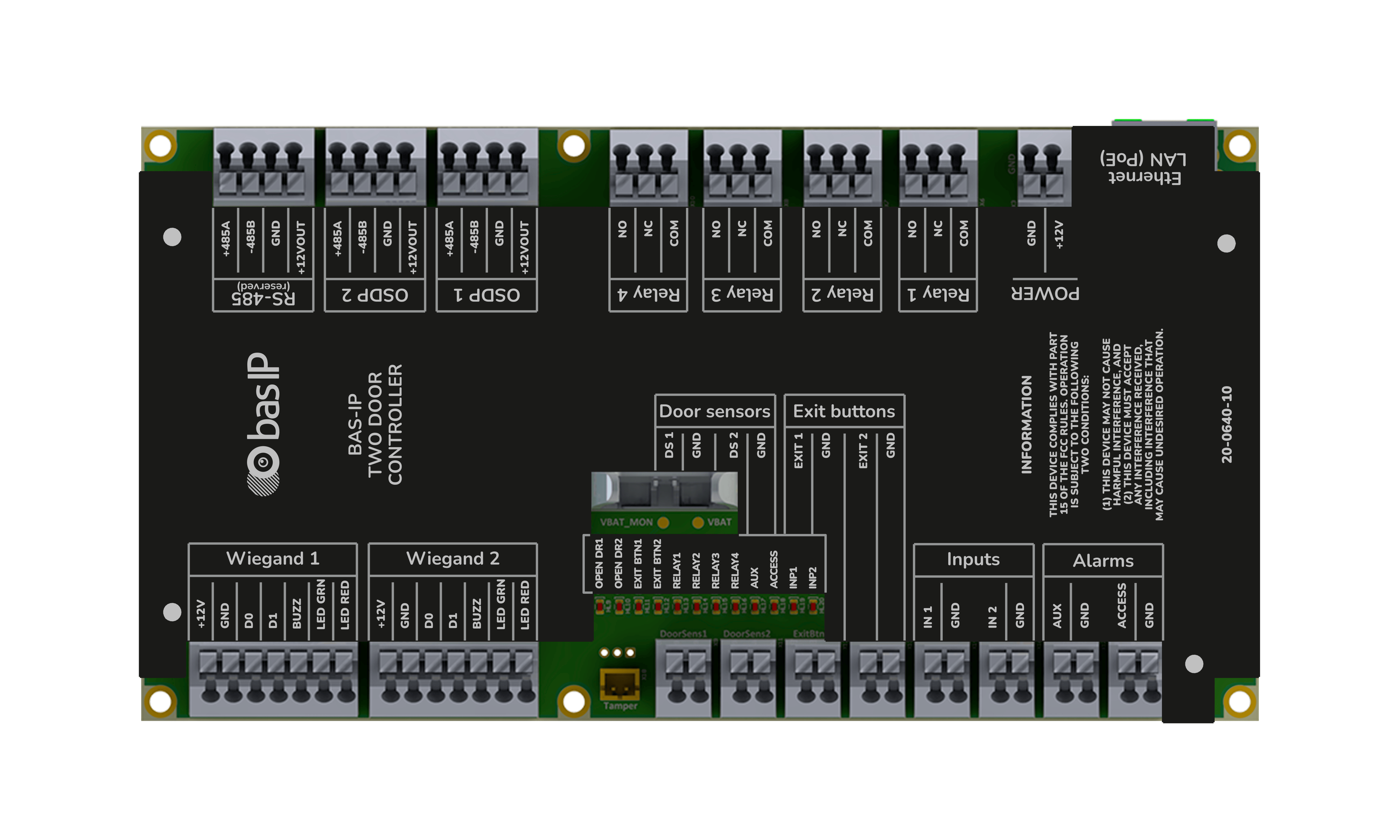

CE-44P

The BAS-IP New Gen Controller is an advanced access control device featuring Wiegand, OSDP, and RS-485 interfaces. It supports reader connections, configurable LED outputs, and built-in relays, offering exceptional versatility.

With its multi-language web interface, the controller ensures seamless integration into any access control system and allows flexible configuration of each interface and input.

The specifications and appearance of the device may differ from those stated or may change without prior notice!

OSDP: 2 RS-485 ports
RS-485: Optional
Ethernet: 10/100Mbps
Communication: TCP/IP
Inputs: 8 (Door Sensor, Push Exit, Security Alarm, Additional Buttons)
Readers:
• 2 OSDP
• 2 Wiegand (with controlled LED and buzzer)
Outputs: 12 open collector outputs for LED control
Relay Outputs: 4 (NC, NO, COM)
LED Status Indicators:
• 4 for Relay control
• 2 for Door open
• 2 for Push Exit button
• 2 for Security alarm
• 2 for Additional buttons
Power Supply: +12V DC, PoE 802.3af
Power Consumption: 5W (standard), 1.5W (standby)
Built-in Memory Supply: Coin battery (CR3032) for constant NTP server synchronization

Interface: Multi-language web interface
Operating System: Linux
Identifiers in Controller Memory: 100 000
Integration with ACS: Wiegand, OSDP
Built-in Wiegand Input: 8, 26, 32, 34, 37, 40, 42, 56, 58, 64, 66, 128, 256 (raw) bits
Built-in OSDP Input: OSDP v.2.2
Amount of Wiegand Inputs: 2
Ability to Connect a Keypad:
• Yes, Readable Length of Keypad
• Codes – 4, 6, 8 bits
Ability to Connect:
• Door Sensor (2 inputs)
• Exit Button (2 inputs)
• Security Alarm
• Fire Alarm
• Additional Buttons (2 inputs)
Authentication: Separate password for the web interface
Additionally: Link software support, Open API, Flexible configuration of connected
devices
