BAS-IP / Hardware / Access Control / CE-44

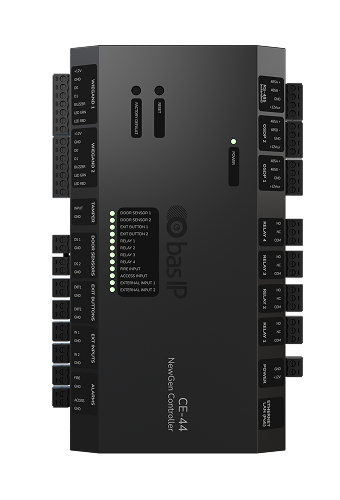

CE-44
2-door access controller for additional doors, gates and service access points
Connect extra access points to the same BAS-IP Link environment — without building a separate access control layer.
Full HD Stainless Steel Modern design Link Support
Request project quote Download datasheet

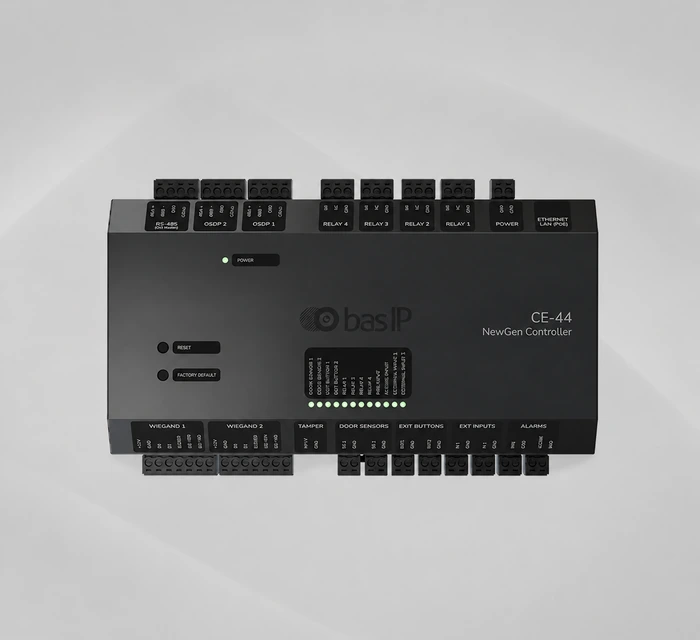

Oblique Parking Access Point

Access control goes beyond entrance panels

Many projects include side doors, staff entrances, technical rooms, gates and barriers that should be managed in the same BAS-IP Link environment as the main entrance

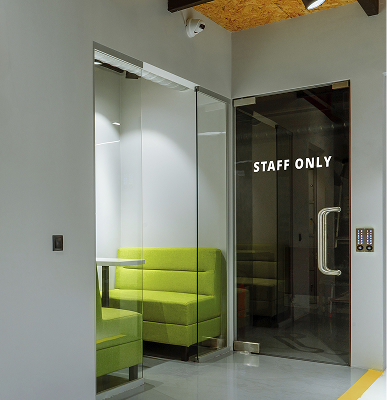

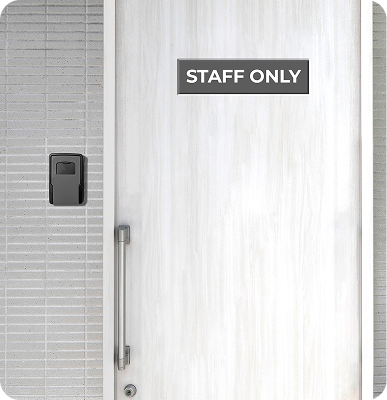

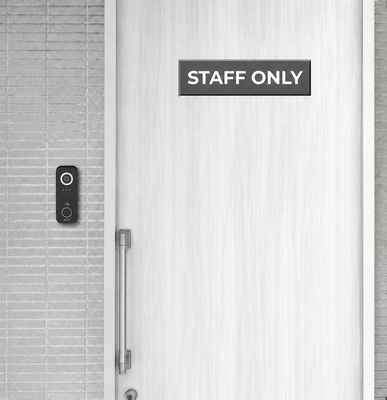

Side and staff doors

Side and staff doors

Control access to staff-only entrances, side doors and internal restricted areas

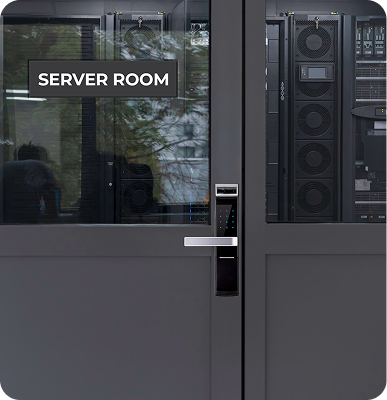

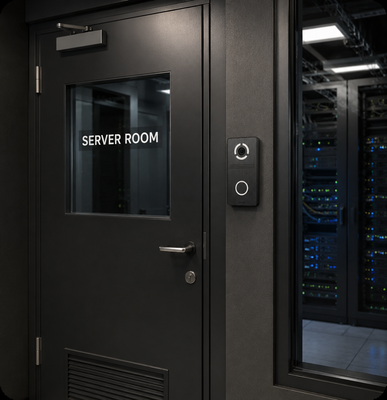

Technical and service rooms

Technical and service rooms

Limit access to equipment rooms, utility areas and back-of-house zones

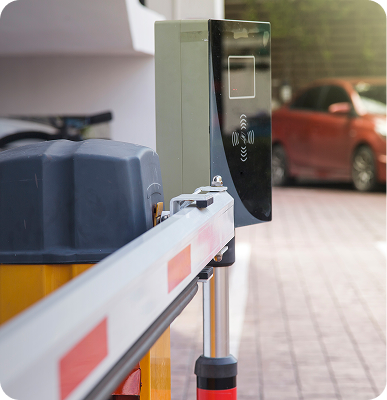

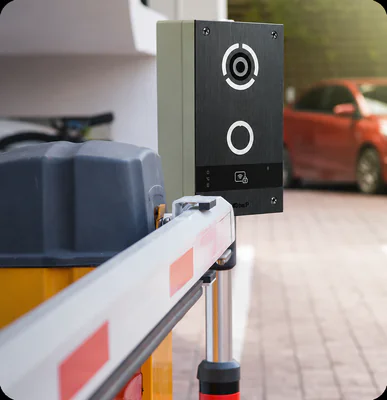

Gates and parking barriers

Gates and parking barriers

Bring vehicle gates and parking barriers into the same access control environment

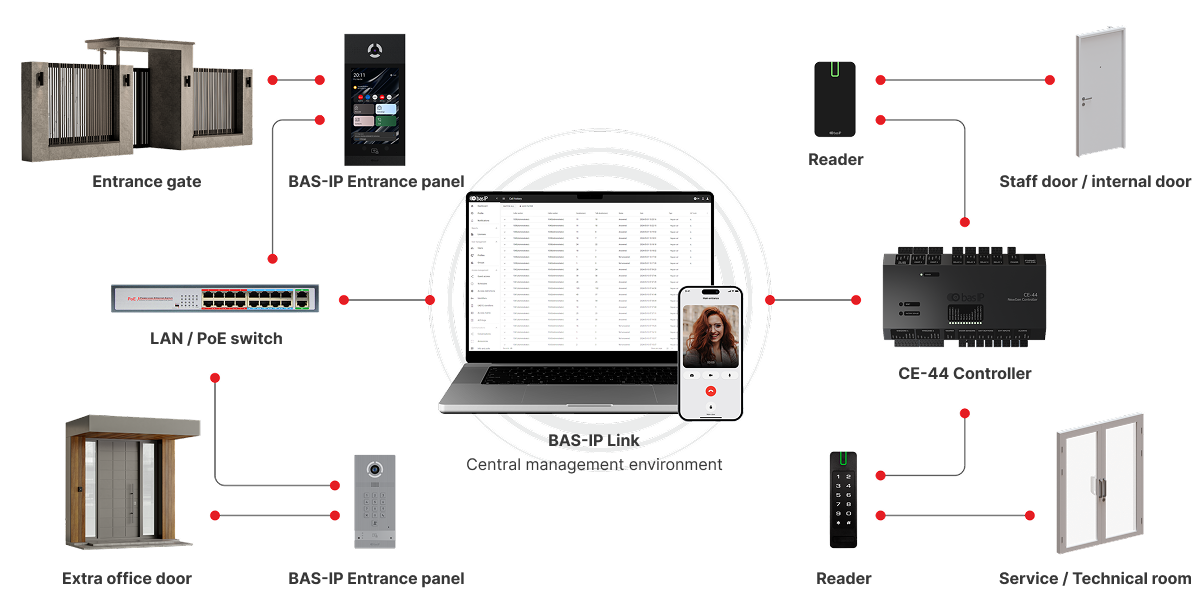

Manage additional access points from BAS-IP Link

Add CE-44 to the same BAS-IP environment used for panels and other devices instead of building a separate control layer

  • Centralised configuration
  • Monitoring and event logging
  • Link Cloud or self-host
  • One management environment for BAS-IP hardware
Manage additional access points from BAS-IP Link

No second software layer for additional doors

Cloud, self-host or standalone operation

Use CE-44 with BAS-IP Link Cloud, a local BAS-IP Link self-host deployment, or as a standalone access controller where central management is not required

BAS-IP Link Cloud

BAS-IP Link Cloud

Remote access management without deploying your own server environment

BAS-IP Link self-host

BAS-IP Link self-host

Local BAS-IP Link deployment for projects that require on-premise control

Standalone mode

Standalone mode

Use CE-44 locally when central BAS-IP Link management is not required

2 mobile applications included in BAS-IP Link Cloud Basic for a registered device

Connect OSDP and Wiegand readers

CE-44 supports both OSDP and Wiegand readers, allowing projects to use different reader types within the same BAS-IP Link access control environment

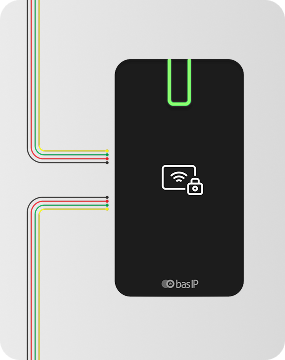

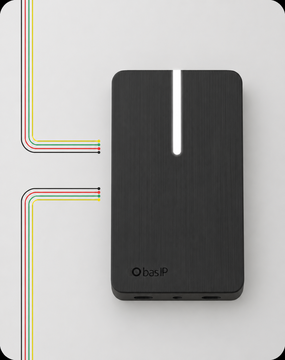

2×OSDP readers

2×OSDP readers

Connect secure OSDP readers for modern access control installations
2×Wiegand readers

2×Wiegand readers

Use Wiegand readers where existing project requirements or installed hardware demand it

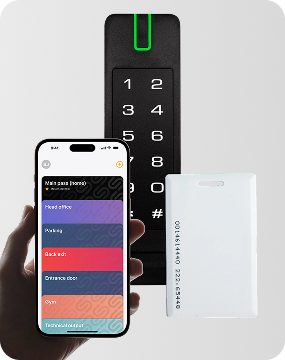

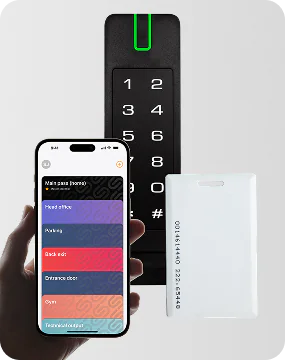

Mixed reader types

Mixed reader types

Combine OSDP and Wiegand readers on one CE-44 controller

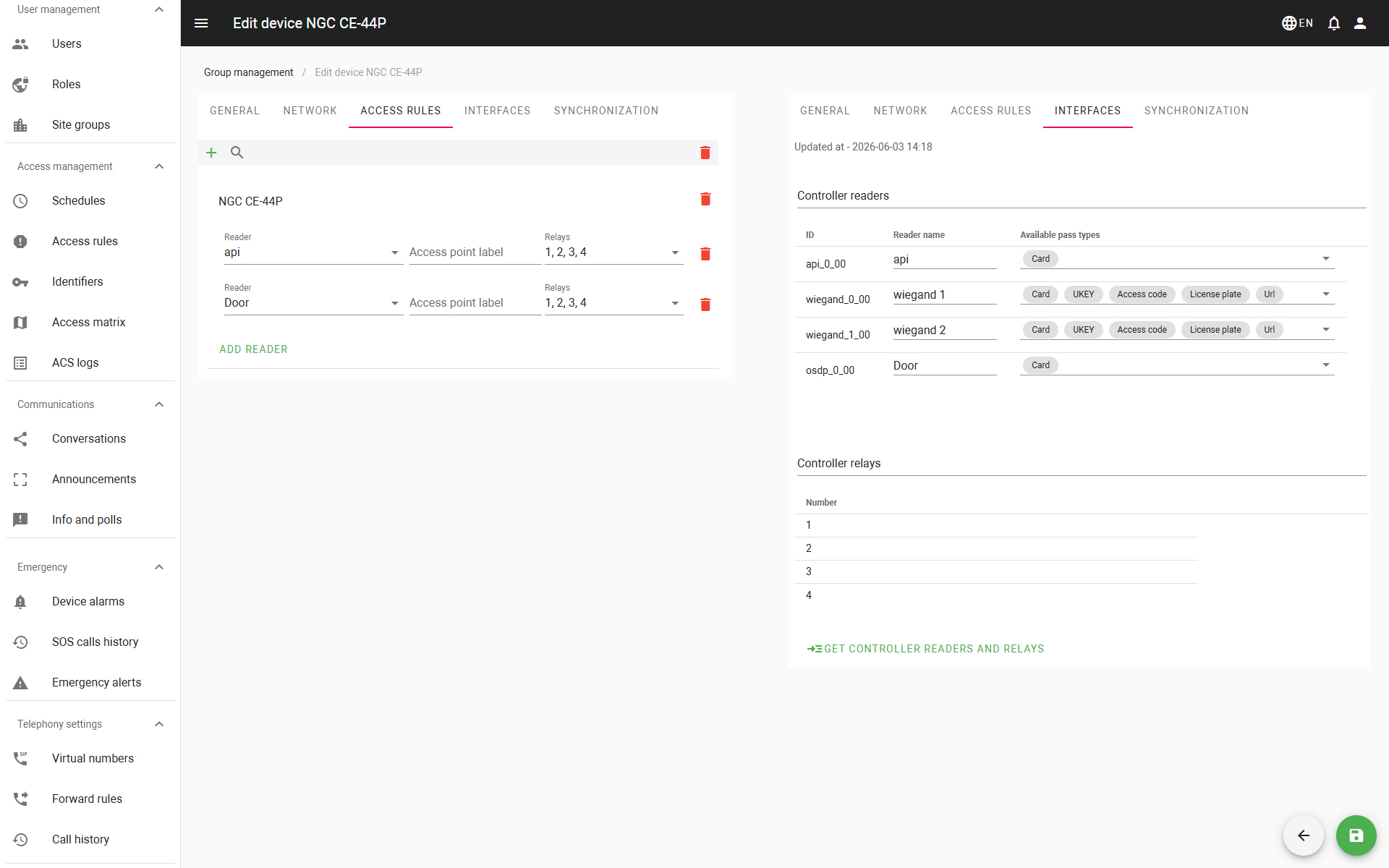

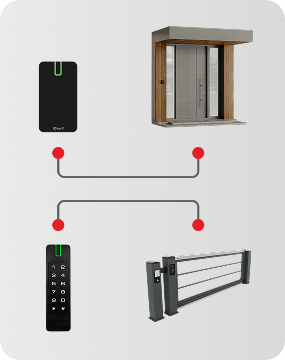

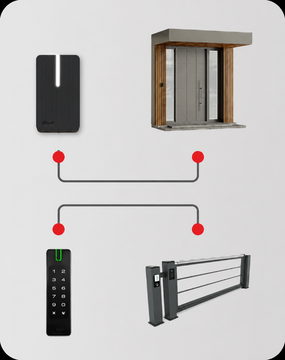

Reader-to-relay mapping

Reader-to-relay mapping

Configure which reader controls which relay output for the required access scenario

Configure relay logic for real access scenarios

Set how readers, inputs and relay outputs work for each controlled access point

Configure relay logic for real access scenarios
  • Relay outputs
  • Input logic
  • NO / NC configuration
  • Duration and delay
  • Fire alarm action
  • External triggers

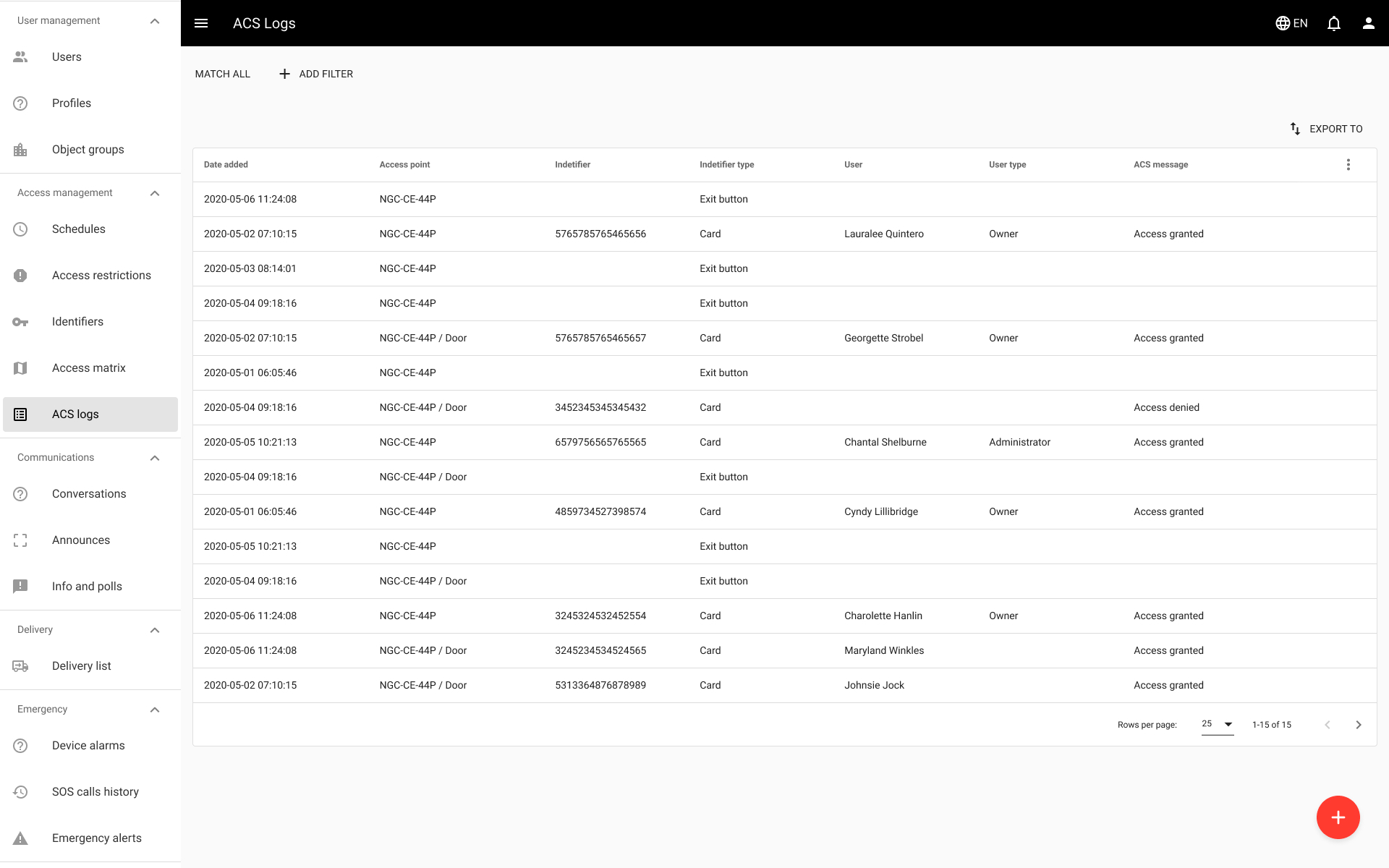

Access events logged in BAS-IP Link

Review CE-44 access events in BAS-IP Link to support troubleshooting, security checks and audit trails

Access events logged in BAS-IP Link

Built for cabinet installation

DIN-rail mounting, PoE or 12V DC power, tamper input and clearly organised terminal connections for professional access control cabinets

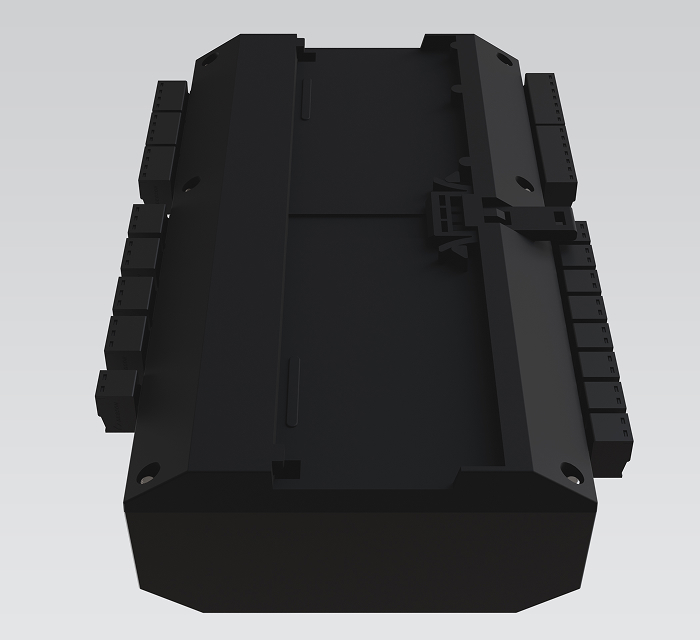

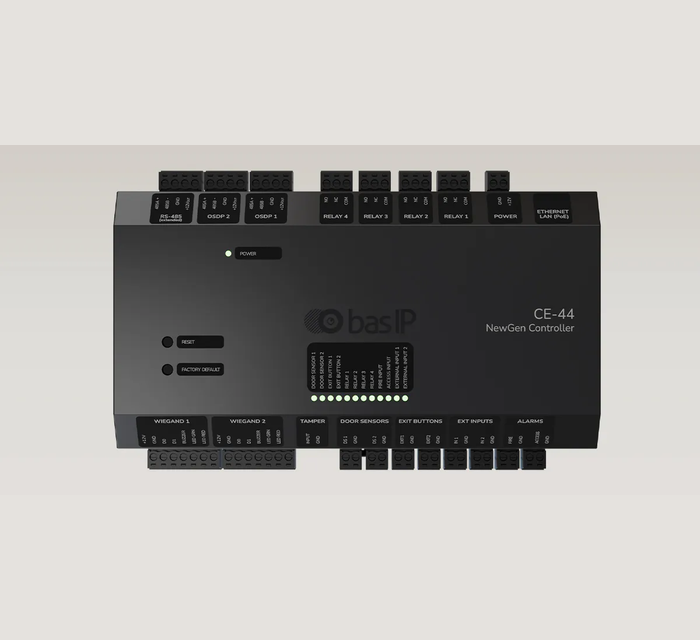

TH35 DIN-rail mounting

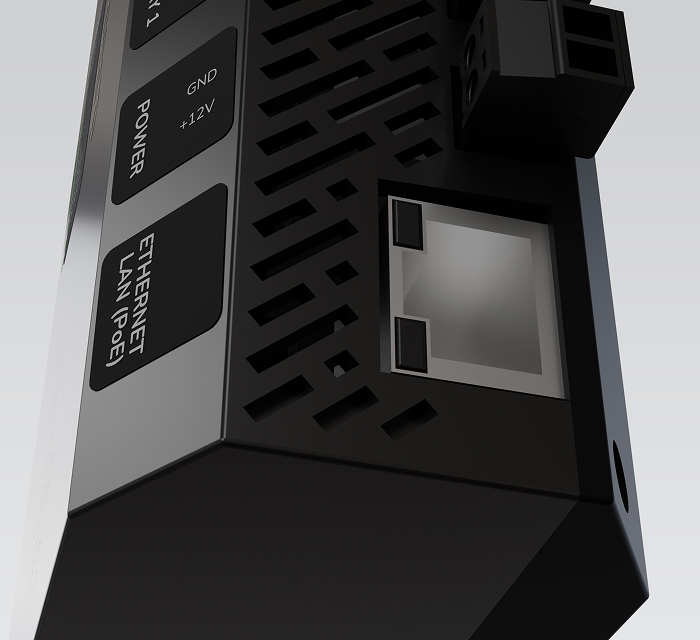

PoE or 12V DC power

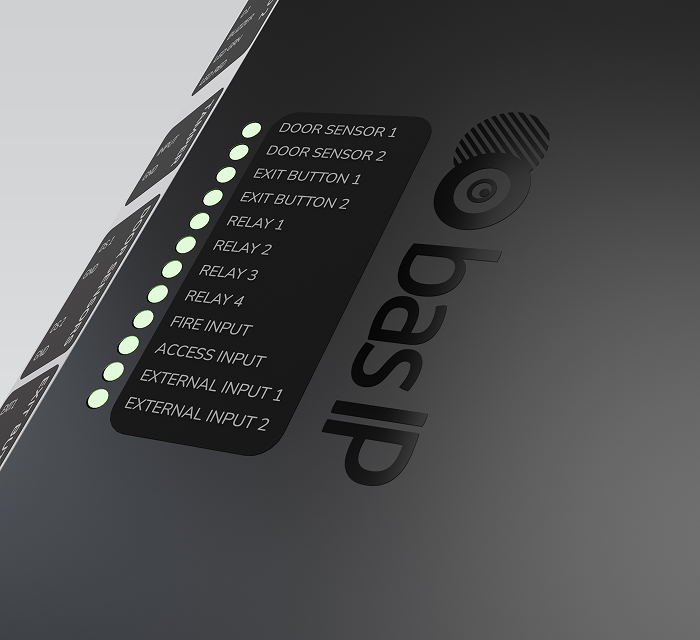

Organised terminal connections

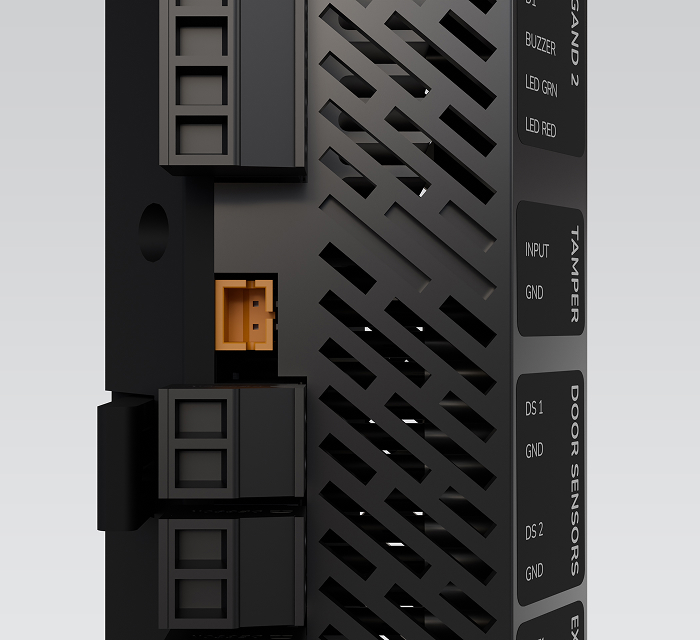

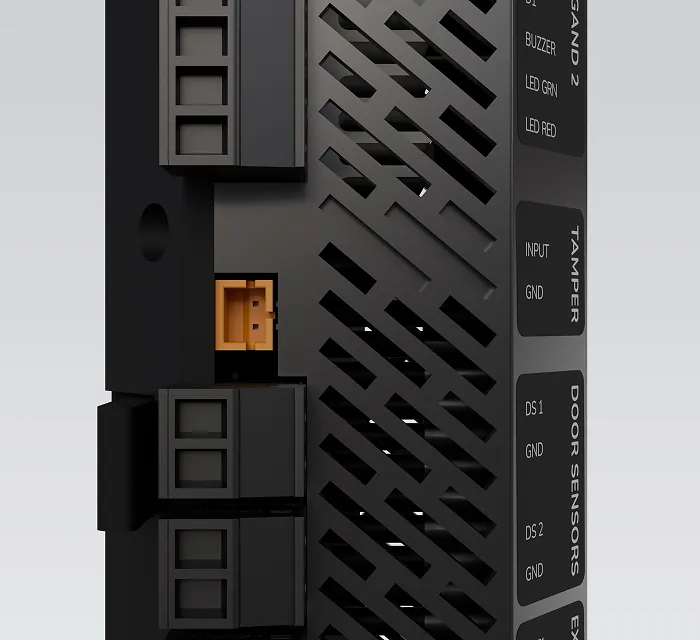

Tamper input

Scale / metrics

up to

100 000

identifiers

up to

100 000

access rules

up to

100 000

users

up to

100 000

log records

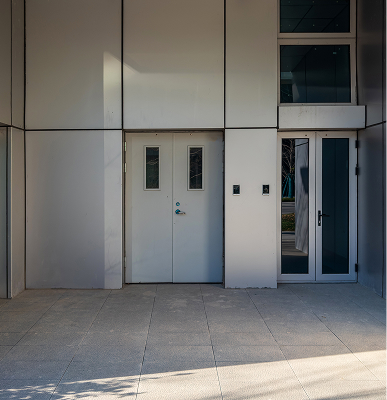

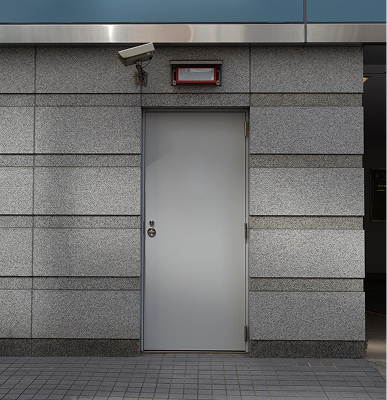

Where CE-44 fits best

Use CE-44 when additional access points need to be managed in the same BAS-IP Link environment

Technical and service rooms
Office back-of-house access

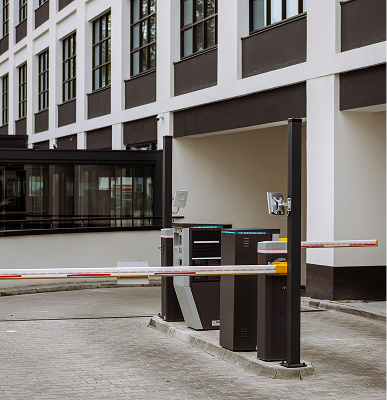

Gates and barriers
Turnstiles and staff-only zones
Apartment building extra doors
BAS-IP panel + extra access point projects
Specifications
Key specs first. Full specifications below (accordion).
Power

Power

12V DC / PoE (IEEE 802.3af)
Readers

Readers

2 x OSDP / 2 x Wiegand
Relays

Relays

4
Inputs

Inputs

8 signal inputs
Power Supply
12V DC or PoE IEEE 802.3af
Nominal Consumption
1.56–1.8W (0.13–0.15A)
Maximum Consumption
≤4.2W (≤0.35A)
Battery Type
CR2032 for internal real-time clock
LAN
Yes (8P8C, Ethernet with PoE support)
Wiegand Interfaces
2
Supported Wiegand Bit Length
26–128; RAW (4–258 bits)
Supported Wiegand Keyboard
4; 6; 8 bit and Packet mode
OSDP Interfaces
2 (via RS485)
Expansion Port
RS485
Built-in Relays
4 (NC, NO, COM), 10A max
Signal Inputs
8
External LED Outputs
12
Tamper Input
Yes
Controller Dimensions
102 × 178 × 45 mm (without connectors). 113 × 178 × 45 mm (with connectors)
Installation type
TH35 DIN rail IEC/EN 60715, Din 35×7,5 mm
Case material
ABS-plastic, FR V2 fireproof level
Protection Class
IP20
Operating Conditions
0–60 °C, 20–76% RH

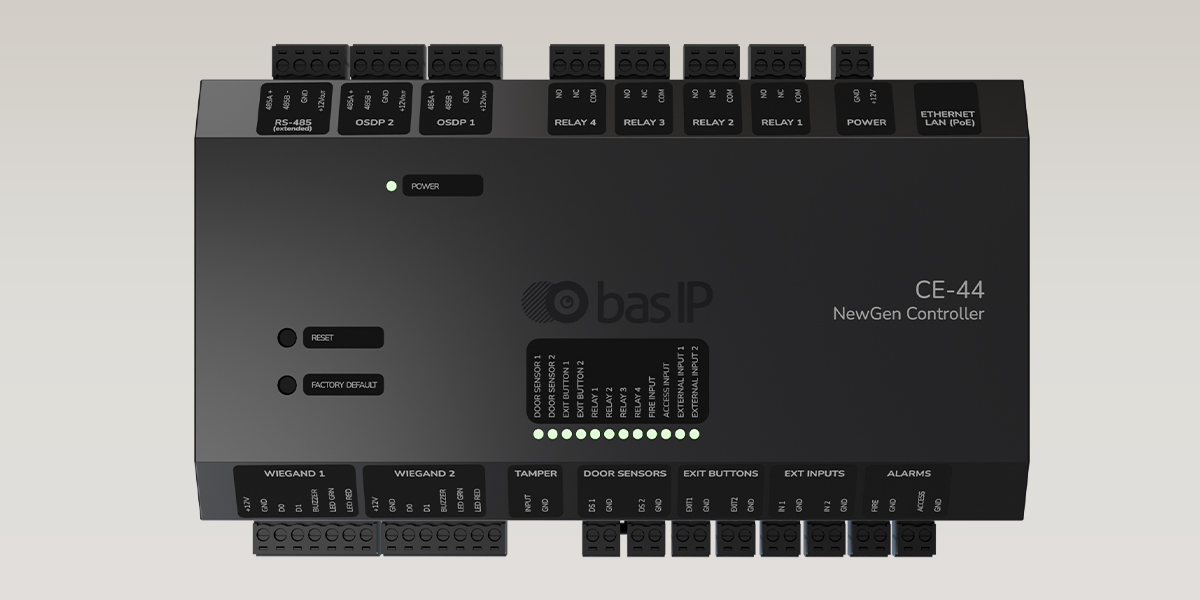

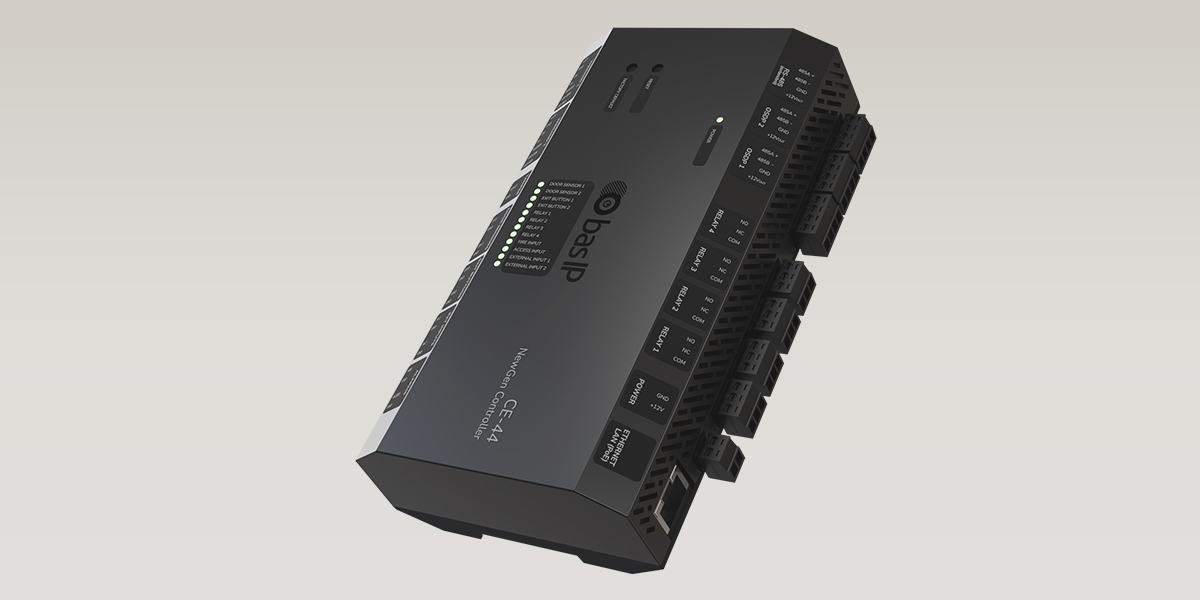

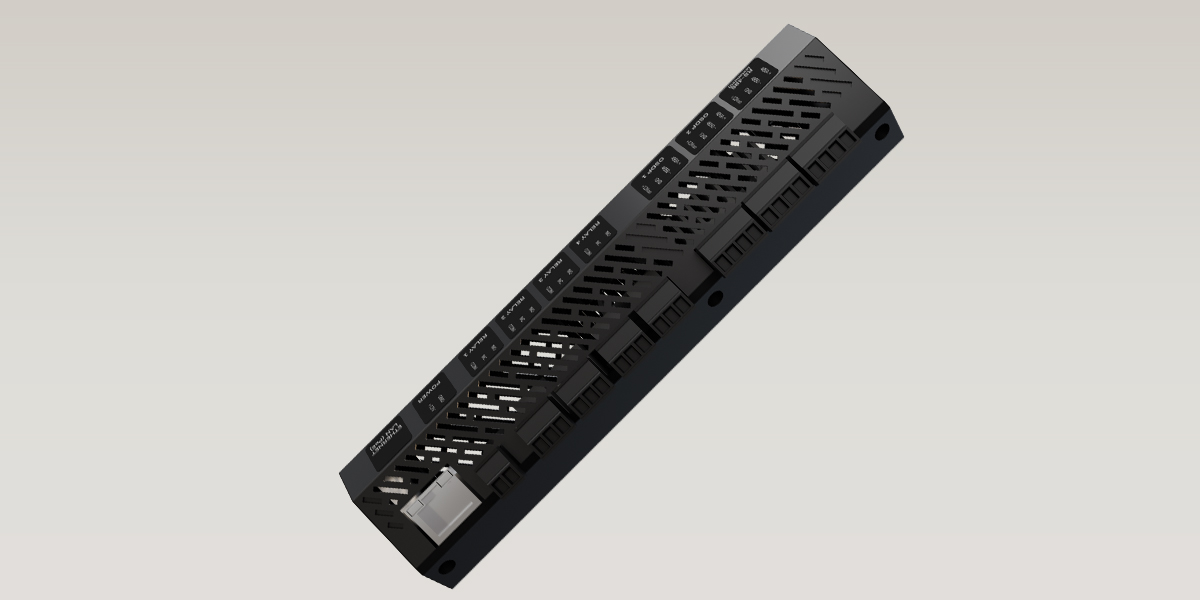

Gallery
