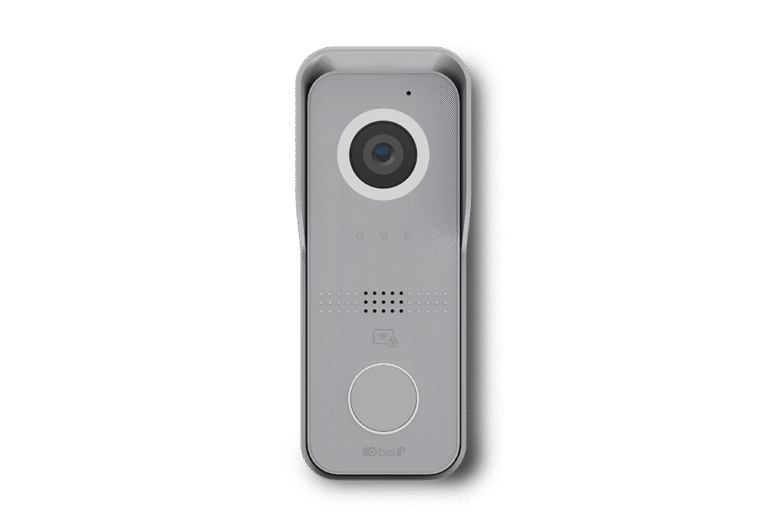

AV-06M

Sleek and compact single-button entrance panel

Panel Status LED indication

Multifaceted applications

Apartments

Offices

Country homes

Status indicators

The status indicators on the BAS-IP AV-06M entrance panel provides visual feedback to visitors, clearly indicating the current state of the system. This feature enhances the user experience by:

Clarity and Transparency: The indicators visually communicates the system’s status, eliminating any guesswork for visitors.

Improved Communication: Visitors can easily understand whether their call has been received, is in progress, or if the door has been unlocked.

Reassurance: The indicators provides reassurance to visitors, letting them know that their request is being attended to.

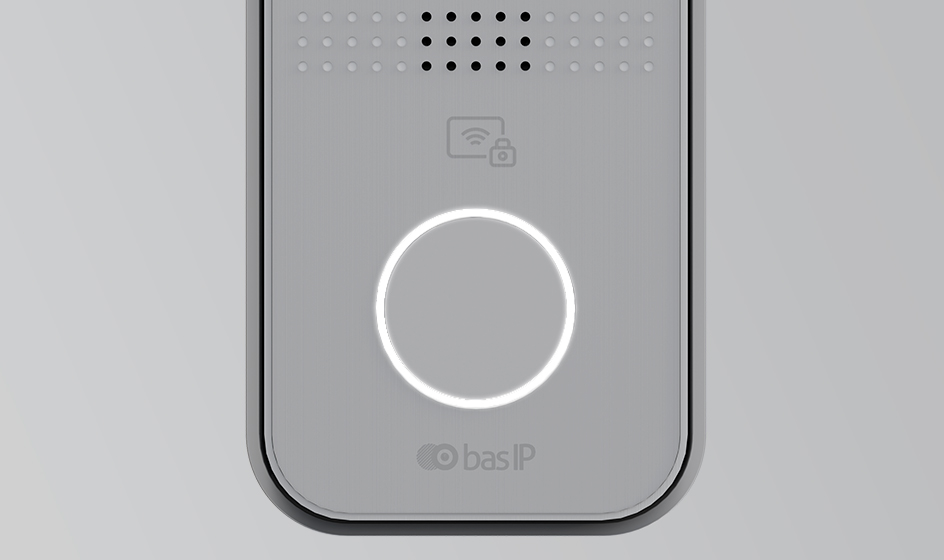

Mechanical call button

The BAS-IP AV-06M features a durable mechanical call button designed to withstand frequent use in various weather conditions. This robust button offers several advantages:

Longevity: Constructed from high-quality materials, the mechanical button is built to last, ensuring reliable operation over an extended period.

Tactile Feedback: The physical act of pressing a button provides clear tactile feedback, confirming that the call has been initiated.

Reliability: Mechanical buttons are less susceptible to malfunctions caused by electronic components, making them a reliable choice.

Weather Resistance: Designed to withstand outdoor elements, the button is resistant to dust, moisture, and temperature extremes.

MicroSD Card Support

The BAS-IP AV-06M features a microSD card slot that supports up to 32GB of storage. The microSD card slot is primarily used for updating the panel’s firmware.

Adaptable settings and expandability

Wi-Fi

Enjoy wireless connectivity and remote access with the BAS-IP AV-06M’s built-in Wi-Fi feature.
Rotating Bracket 30-degree

The panel supports a 30-degree bracket installation, allowing you to customize the viewing angle. The bracket is sold separately.
Open API

The API allows for seamless integration of the panel with third-party Access Control Systems and other systems.
Sun & Rain Cover

Includes a durable sun and rain cover to protect the panel from the elements and ensure long-lasting performance.

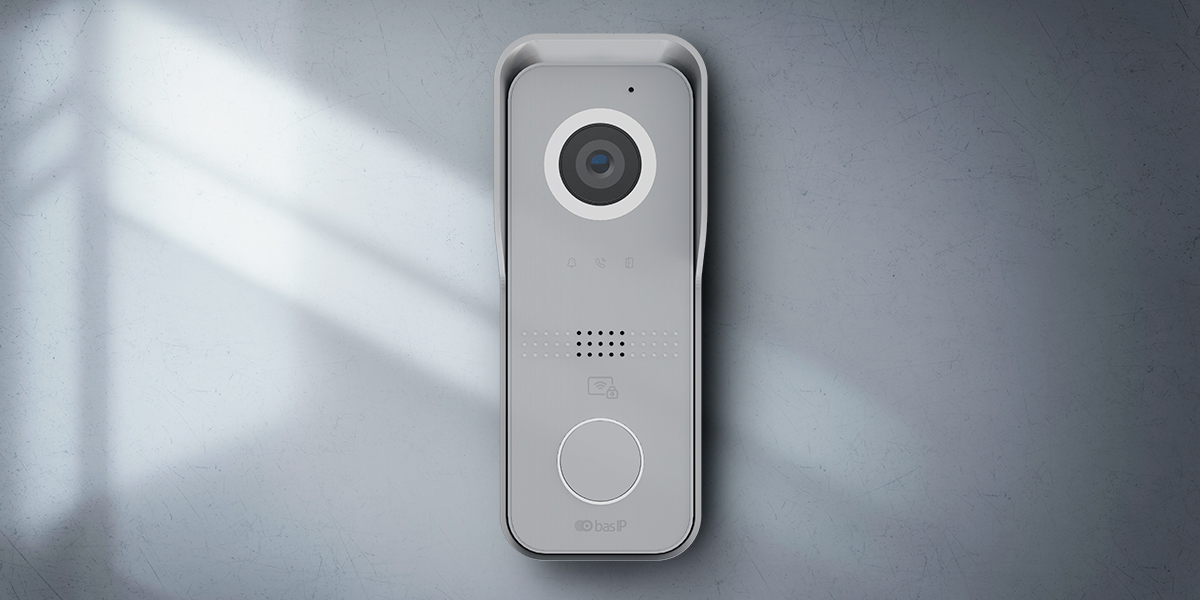

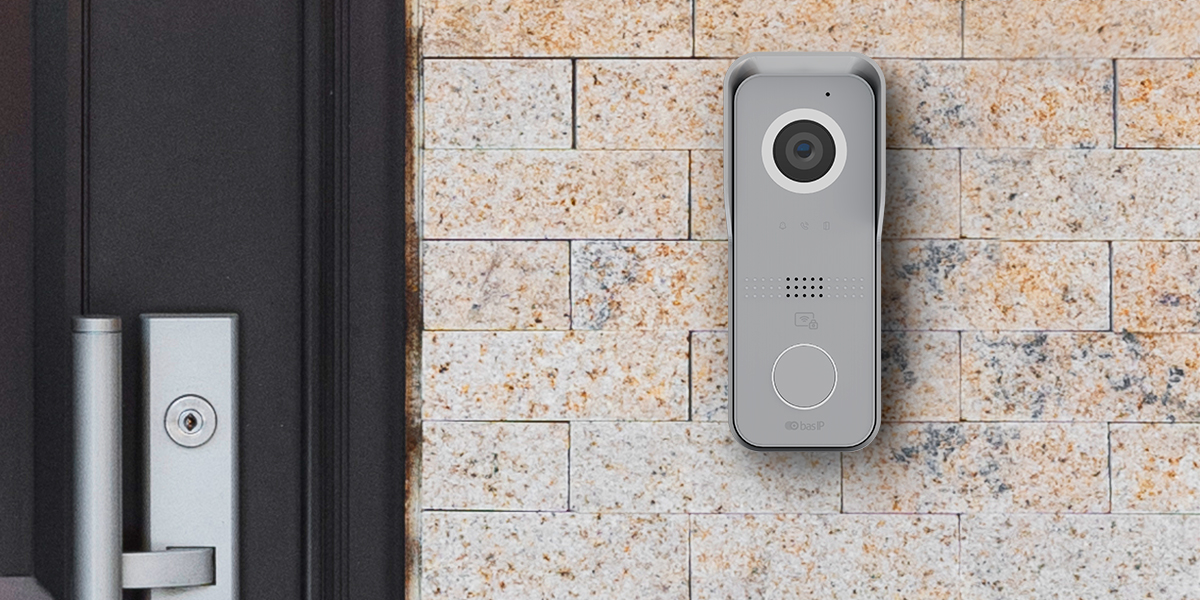

Gallery

Specifications

General characteristics

Panel type Individual
Camera 1/2.8”
Angle 110° (horizontal)
Resolution 2.0 Мpx
Wi-Fi 2.4GHz (IEEE 802.11 n)
Memory card support MicroSD up to 32GB (firmware update only)
Output video FullHD (1920 × 1080), H.264 Main Profile
Night backlight 12 LEDs
Light sensitivity 0.01 Lux
Status indicator 3 indicators (Calling, Talking, Lock-release)
Operating temperature -40 – +65 °С
Protection class IP65
IK-Code IK06
Power consumption 5.5 W, in standby — 2.1 W
Power supply +12V DC, IEEE PoE 802.3af
Case Plastic
Shortcut buttons Mechanical call button
Sound Notifications Customizable sounds for ringback, door unlock, incoming calls, call in progress, and communication in progress
Colours Black
Size of the panel 52 x 137 x 28 mm
Installation Surface Mounting with or without Sun & Rain Сover (included)
Additional accessories Rotating Bracket 30-degree (sold separately)
Interface Multi-language graphical and WEB interface
Identifiers in the panel memory (QR codes, cards, key fobs) 20 000
Supported Сards Mifare®: Ultralight, Ultralight Ev1, Light ID, Standard, Classic (1K/4K), Classic EV1 (1K/4K), DESFire Light (read-only UID, 4 bytes), DESFire Ev1 (read-only UID, 4 bytes), NFC (ISO 14443)
Integration with ACS Wiegand
Built-in Wiegand output for card, key fob 26, 34, 58 bits
Connection of the additional SH-12 module and its support • Wiegand input: 26, 34, 58 bits
• Wiegand output for card, key fob, and all other types of identifiers: 26, 34 и 58 bits inclusive
Authentication Separate passwords for the web interface
Lock opening • By means of a monitor
• By QR code
• By access card
• By license plates
• By Exit Button
• The BAS-IP Link app
• The BAS-IP Intercom app
• From API
Additional Features • Link software support
• SIP P2P
• Built-in relay
• Open API
• Tamper sensor
• Event-triggered photo uploads to the server
