EAN: 5060514915394 New

AA-07FBI SILVER

EAN: 5060514915394 New

AA-07FBI SILVER

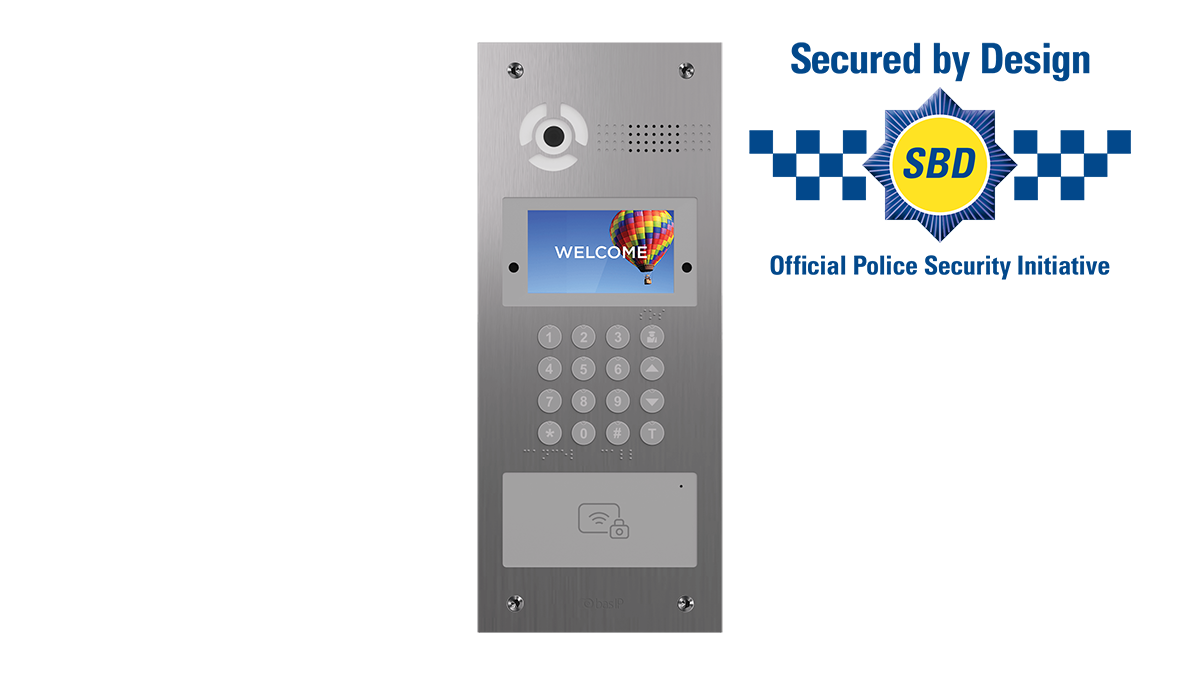

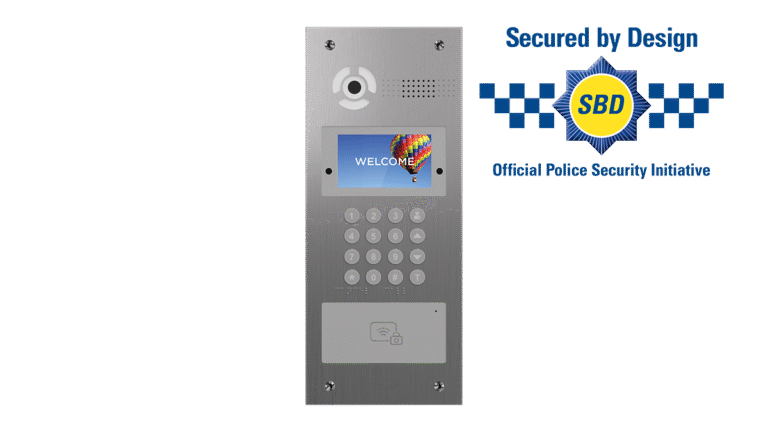

Multi-apartment entrance panel with external induction loop connectivity

Panel with face recognition and BAS-IP UKEY keyless access support.

The AA-07FBI is a multi-apartment entrance panel featuring facial recognition and compatibility with BAS-IP UKEY mobile access. It boasts a backlit TFT color screen and a high-resolution IP camera with wide viewing angles.

This model also includes a female TRS socket for connecting an external induction loop, designed for the hearing impaired, with a low-frequency audio signal of 1.2V and 8.2 kOhms. Additionally, the panel supports power over Ethernet (PoE).

More detailed information about configuration, connection, and installation can be found here.

The specifications and appearance of the device may differ from those stated or may change without prior notice!

Panel type: Multi-apartment

Induction Loop: Yes

Display: 4,3“ TFT, color, with backlight

Resolution: 2,0 Мp

Сamera angle: 110° (horizontal)

Output video: 1080p (1920×1080), H.264 Main Profile

Night backlight: 6 LEDs

Light sensitivity: 0.01 Lux

IK-Code: IK07

Protection class: IP65

Working temperature: -40 – +65 °С

Operating humidity: 0% – 86%

Storage Humidity: 0% – 60%

Power consumption: 6,5 W, in standby – 3,6 W

Power supply: +12 V DC (+8% -4%)

Case: Aluminum

Colors: Silver

Dimensions: 155×375×55 mm

Installation: Flush mounting, wall mounting with BR-AA

Keyboard: Mechanical buttons with backlight

Box dimensions: 431×200,5×97 mm

Gross weight: 2,68 kg

Interface: Multilanguage, WEB- interface

Lock opening:

• By means of a monitor
• Face Recognition Identification
• By QR code
• By guest link
• By Pin
• By access card
• By license plates
• The BAS-IP Link app
• The BAS-IP Intercom app
• The BAS-IP UKEY app
• From API

Access control:

• Face Recognition
• UKEY (EM-Marin/ MIFARE®/NFC/Bluetooth)
• Multi-factor authentication

Supported standards:

• BLE (Bluetooth Low Energy): 2,45 GHz Bluetooth 4.x, Bluetooth 5.x.
• Mifare®, 13,56 MHz ISO14443A: Mifare®Standard, Mifare®Hi-Memory, Mifare®Ultralight, Mifare®Classic 1K/4K, Mifare®Classic 7UID, Mifare® Plus SL1 and SL3
• NFC, 13,56 MHz: ISO 14443/15693
• Cards 125 kHz: ASK and FSK

Reading range:

• NFC, Mifare cards and 125 kHz cards – up to 5 cm
• BLE – adjustable 10 cm – 10 m

Calling the lift to the floor: Yes

Face recognition Identifiers: 10 000 faces

Identifiers in the panel memory (QR codes, cards, key fobs, UKEY, access codes): 20 000

Onvif (Profile S): Yes

Integration with ACS: Wiegand
Built-in Wiegand output for card, key fob, and UKEY identifiers: 26, 32, 34, 37, 40, 42, 56, 58, 64, 80 bits

Output for connecting an external induction loop for the hearing impaired: Low-frequency Audio signal 1.2V; 8.2 kOhm.
Type of output for connecting an external induction loop: Socket (female) TRS
Connection of the additional SH-12 module and its support:
• Wiegand input: from 6 to 58 bits inclusive
• Wiegand output for card, key fob, UKEY, QR, Face, Digital code, and all other types of identifiers: from 26 to 128 bits inclusive

Quick-dial buttons: Concierge call button

Number of ringtones: 4 polyphonic ringtones

Authentication:

• Separate password for settings
• WEB-interface

Additionally:

• Software Link support
• SIP P2P
• Built-in relay
• Open API
