BAS-IP / Hardware / Emergency Call Box / AV-04AFDI
EAN: 5060514916438 (green)
EAN: 5060514916445 (red)
EAN: 5060514916452 (silver) New

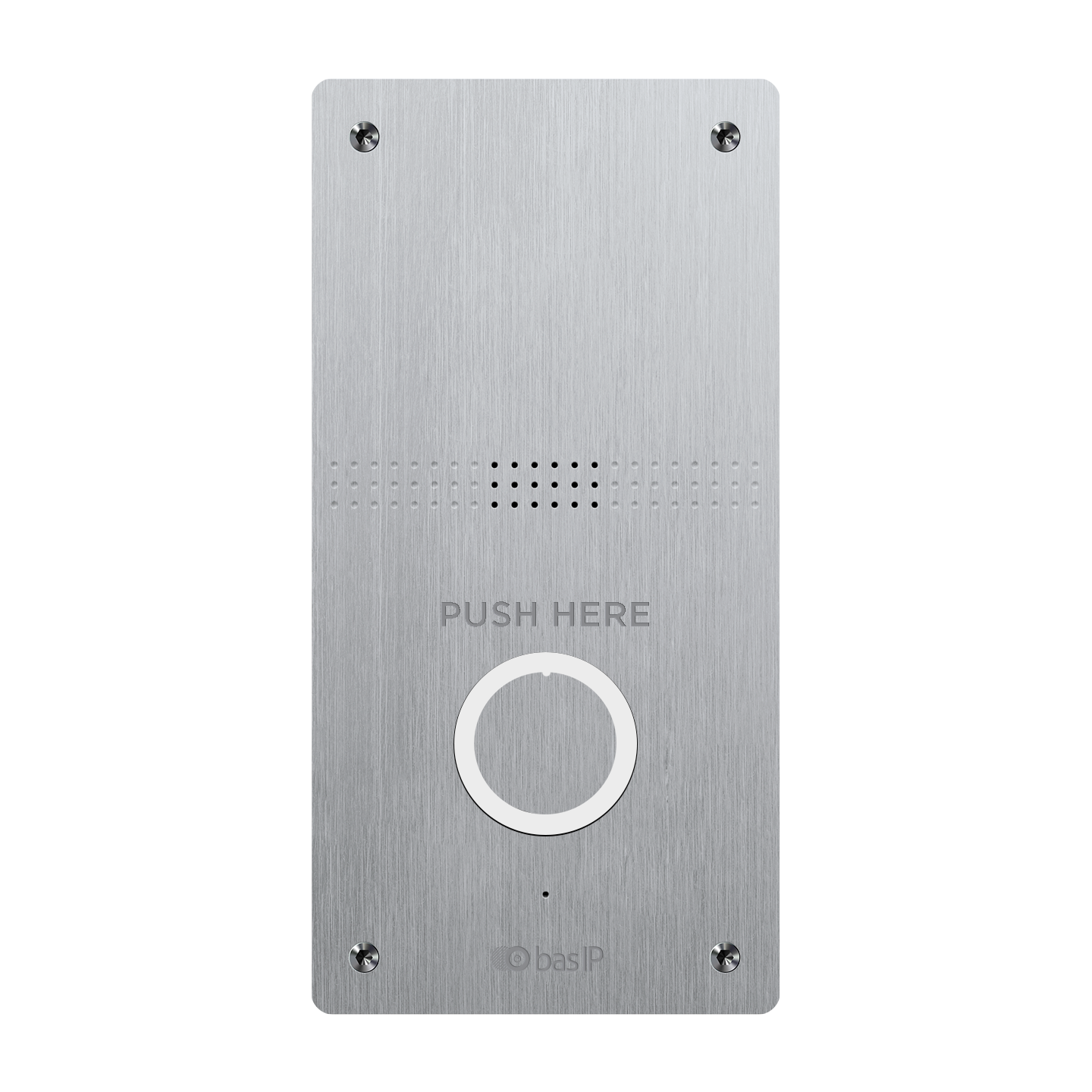

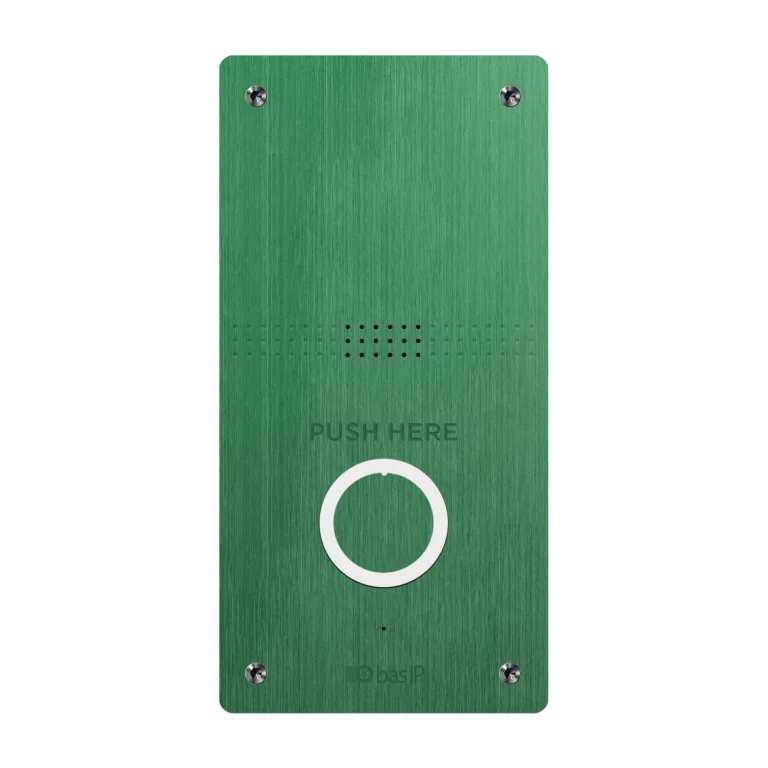

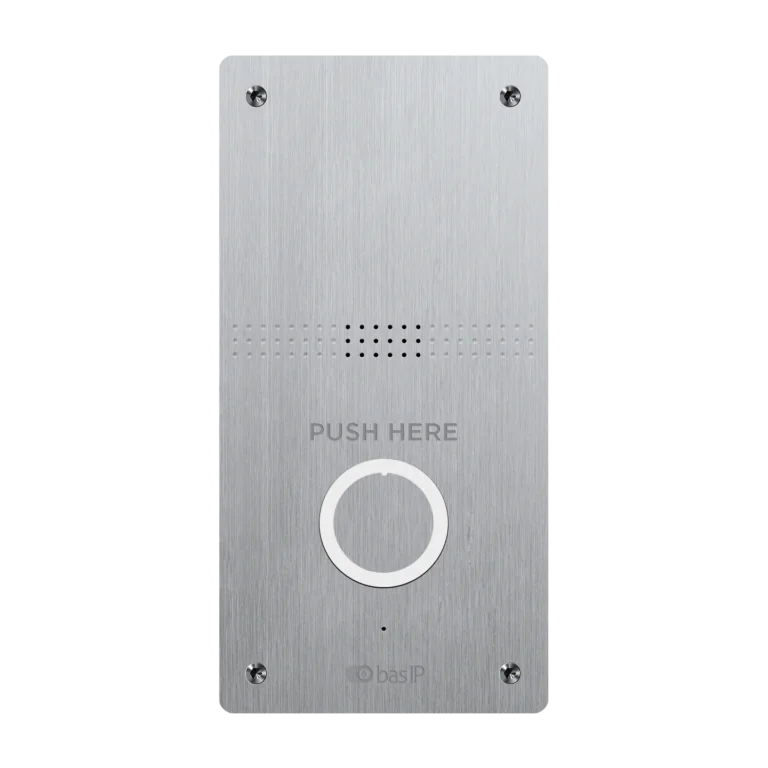

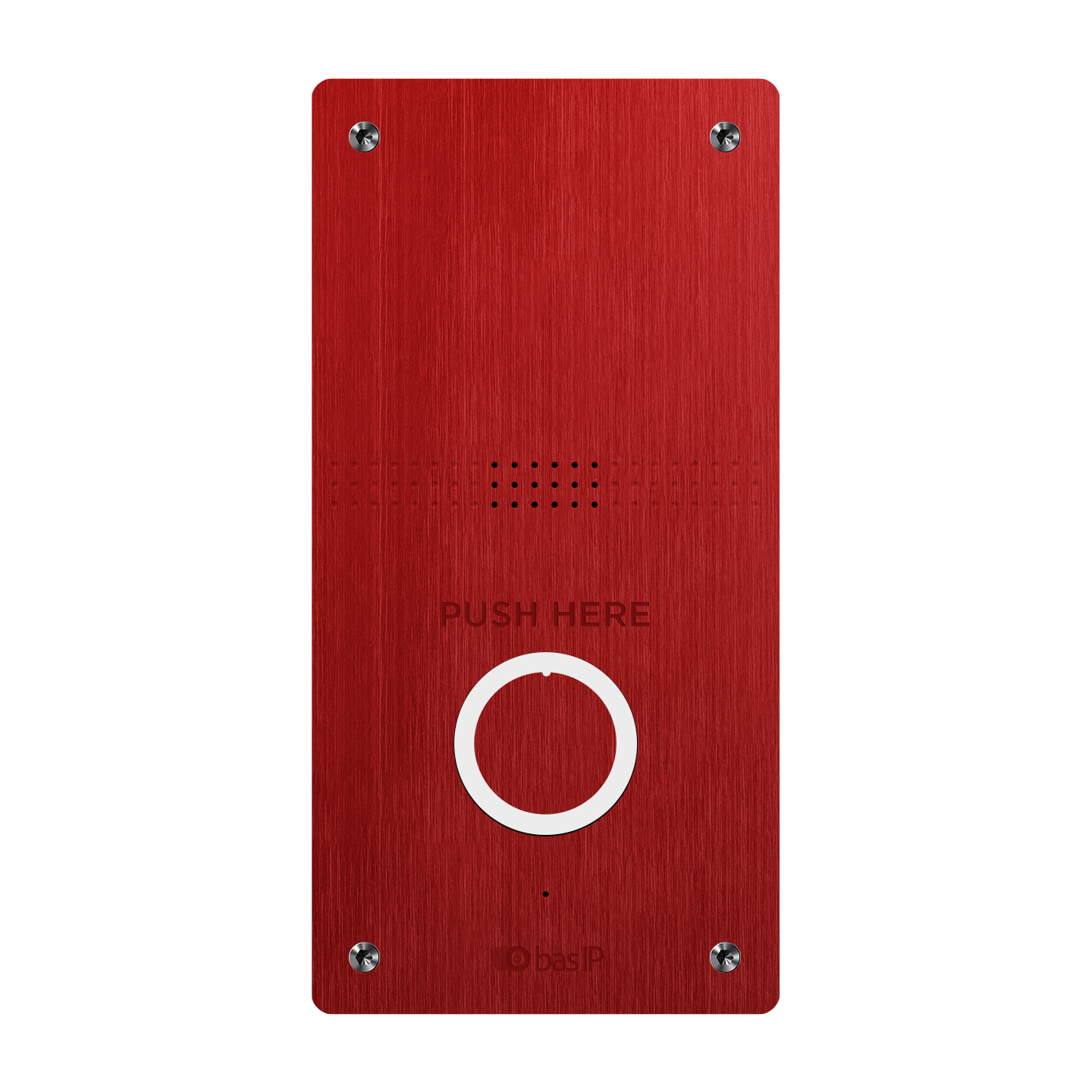

AV-04AFDI RED / GREEN / SILVER
EAN: 5060514916438 (green)
EAN: 5060514916445 (red)
EAN: 5060514916452 (silver) New

AV-04AFDI RED / GREEN / SILVER

Emergency entrance panel

An emergency intercom panel, also known as an emergency call box, is a communication device typically found in public spaces, transportation systems, and commercial buildings.

WHERE TO BUY

It allows individuals to quickly connect with security personnel, emergency responders, or building management in case of an emergency.

Panel has a push button, when activated, establishes a two-way communication channel with the appropriate authorities. AV-04AFD panels are designed to be highly visible, with bright colors and clear instructions on their use.

In addition to providing a means of communication during emergencies, these panels can also deter criminal activity in public spaces by acting as a visible reminder of the presence of security systems.

More detailed information about configuration, connection, and installation can be found here.

The specifications and appearance of the device may differ from those stated or may change without prior notice!

Panel type: Individual
Camera: No
IK-Code: IK10
Protection class: IP65
Working temperature: -40 – +65 °С
Power consumption: 6,5 W, in standby – 2,5 W
Power supply: PoE, +12 V DC (+12% -6%)
Case: Aluminum
Colors: Green, red, silver
Dimensions: 95×190×27 mm
Installation type: Flush mounting
Box dimensions: 235×126×78 mm
Gross weight: 0,91 kg
Interface: WEB-interface
Call button: Mechanical
Number of ringtones: 4 polyphonic ringtones
Authentication: WEB-interface
Talking mode: Duplex
Additionally:
• SIP P2P
• Open API
